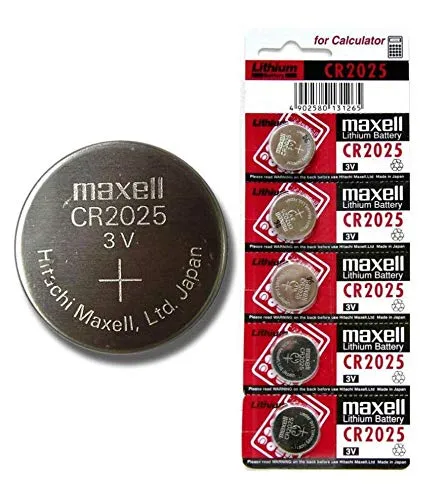

CR2025 3V Lithium Coin Cell Battery for Slim Remote Controls and Digital Devices

Technical Details

• Standard Discharge Current: 0.2mA

• Max Pulse Discharge Current: 15mA

• Operating Temperature: -20°C to +60°C

• Self-Discharge Rate: < 1% per year

• Terminal Type: Flat contact (Standard)

Prototyping and Engineering Tips from Robogears

• The "2025" Meaning: In the coin cell naming convention, "20" stands for the 20mm diameter, and "25" stands for the 2.5mm height. If your battery holder is designed for a CR2032 (3.2mm thick), a CR2025 might fit but could have a loose connection. Always use the specific battery height intended for your holder.

• Slim-Line IR Remotes: Most slim IR remote controls used for home automation or RC projects use the CR2025 to keep the remote's thickness under 10mm. If your remote stops working at a distance, replacing the CR2025 is usually the first step.

• Handling Advice: Handle the cell by its edges using plastic tweezers or a dry cloth. Skin oils on the flat surfaces can increase resistance, which may cause low-power microcontrollers to brown out during peak transmission times (like when a Bluetooth or IR signal is sent).

• Non-Rechargeable Warning: This is a primary lithium cell. Never attempt to recharge it. Ensure your circuit is protected by a blocking diode to prevent reverse current from your main power supply.

Package Includes

• 1 x CR2025 3V Lithium Coin Cell

Disclaimer Images are for reference; actual brand marking or packaging may vary by batch. Specifications subject to change by manufacturer. Keep away from small children; lithium batteries are hazardous if swallowed.
