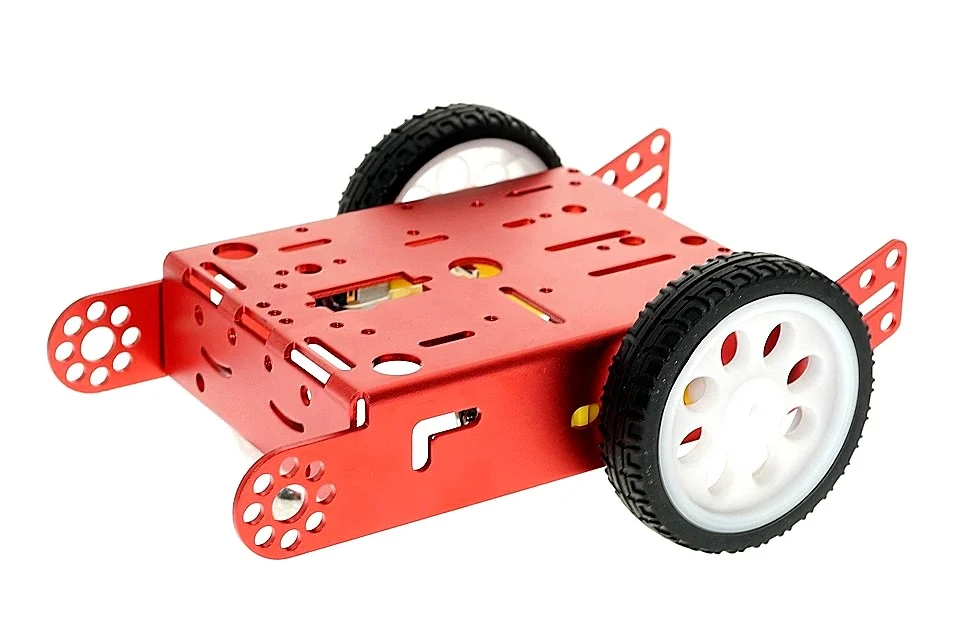

Red 2WD Aluminum Smart Robot Car Chassis Kit DIY

Component	Specification
Material	Anodized 5051 Aluminum Alloy
Drive System	2-Wheel Drive (2WD) with 1 Caster Wheel
Color	Industrial Anodized Red
Motor Type	2 x DC Gear Motors (High Torque)
Wheel Diameter	~60mm (2.36") with Silicone Tires
Chassis Weight	Lightweight yet high-strength metal

Price

🚚 Ships within 24 Hours
📦 Pan India Delivery

₹ 635.59

(Tax included)

Barcode: 8971333

Product Description The Red 2WD Aluminum Smart Robot Car Chassis Kit is a premium, all-metal robotic platform designed for advanced hobbyists and students. Unlike plastic chassis, this anodized aluminum frame provides exceptional durability, heat dissipation, and a professional look. It serves as a rugged foundation for building line-following robots, obstacle avoiders, and wireless-controlled vehicles. With its pre-drilled matrix, it is fully compatible with Arduino, Raspberry Pi, and various motor driver modules.

Key Features

Reinforced Aluminum Frame: Laser-cut from 5051 aluminum alloy, offering a rigid platform that won't warp or bend under heavy payloads.
Independent Drive System: Powered by two independent DC gear motors, allowing for precise differential steering and high agility.
Premium Silicone Tires: The 60mm wheels feature high-grip silicone tires for excellent traction on smooth laboratory floors or rougher surfaces.
Modular Mounting Matrix: The chassis is peppered with pre-drilled holes, making it effortless to add ultrasonic sensors, IR sensors, and mechanical arms.
Educational Excellence: An ideal all-in-one solution for kids and students to gain hands-on experience in programming, electronics, and mechanical engineering.

Technical Details

Motor Performance: The included motors are equivalent to high-quality micro servos (like FS90R), offering speeds up to 100RPM and a torque of 1.3kg.cm.
Ground Clearance: Optimized for tabletop and indoor terrain, ensuring the robot can transition over small obstacles or cable protectors easily.
Color Durability: The vibrant red color is achieved through anodization, making it resistant to scratches and electrical conductivity on the surface.

Prototyping and Engineering Tips from Robogears

Component Insulation: Although the anodized layer provides some insulation, always use nylon spacers when mounting your Arduino or motor drivers to prevent any risk of electrical shorts to the metal frame.
Weight Management: The aluminum chassis is strong enough to carry Lithium-Polymer (Li-Po) battery packs. We recommend mounting the battery as low as possible to maintain a stable center of gravity.
Sensor Shielding: If your sensors are picking up noise, the metal chassis can sometimes act as an antenna. Ensure your signal wires are kept short and use the pre-drilled side holes to route cables away from the motors.
Tire Maintenance: To maintain maximum grip, occasionally wipe the silicone tires with a damp cloth to remove dust. This ensures your robot maintains its tracking accuracy during competitions.

Package Includes

1 x Anodized Red Aluminum Chassis Plate
2 x DC Gear Motors (FS90R style)
2 x Silicone Rubber Wheels (60mm)
1 x Support Caster Wheel (Metal/Plastic)
1 x Set of Assembly Hardware (Screws, Nuts, Brackets)

Disclaimer Images are for reference; actual hole patterns or anodization shades may vary slightly by production batch. ELECTRONICS NOT INCLUDED: This is a mechanical chassis kit; microcontrollers and motor drivers must be purchased separately.
