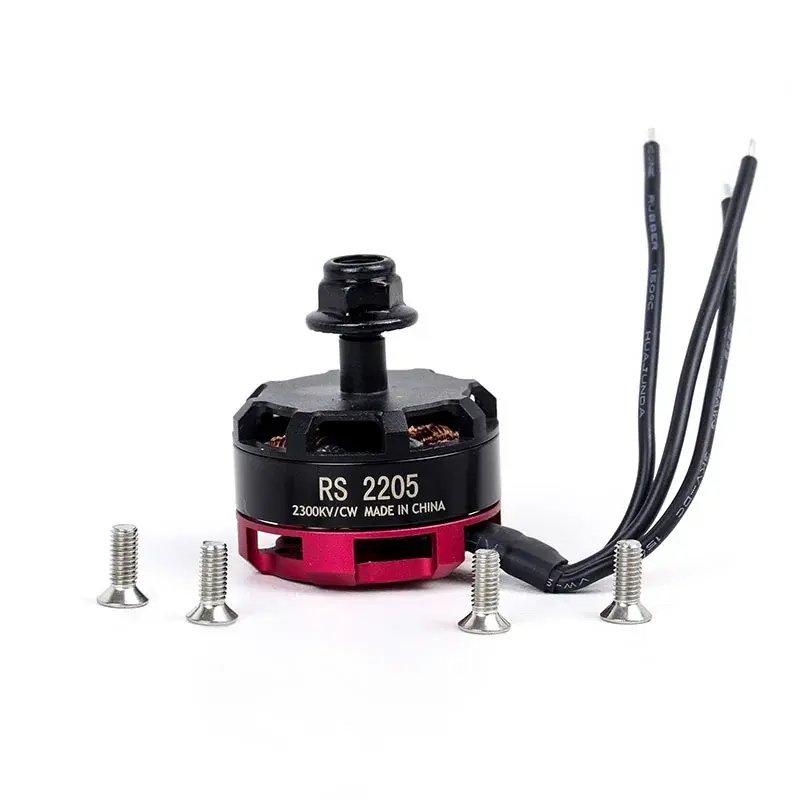

ReadyToSky RS2205 2300KV CW Brushless Motor High Power Drone Racing Motor

Component	Specification
Model	RS2205 2300KV
Rotation	CW (Clockwise)
KV Rating	2300 RPM/Volt
Configuration	12N14P
Input Voltage	3S - 4S LiPo (11.1V - 14.8V)
Stator Diameter	22 mm
Stator Height	5 mm
Shaft Diameter	5 mm

Price

🚚 Ships within 24 Hours
📦 Pan India Delivery

₹ 614.41

(Tax included)

Barcode: 2031

Product Description The ReadyToSky RS2205 2300KV is a high-performance brushless motor specifically engineered for FPV racing quadcopters. Built for extreme power-to-weight ratios, it features N52 neodymium magnets and Japanese bearings for smooth, high-speed rotation. The integrated cooling fin design pulls air through the windings during flight, significantly reducing operating temperatures during aggressive maneuvers.

Key Features

High-performance N52 Neodymium magnets for maximum torque.
Active cooling fins significantly reduce motor temperature under load.
Low CG (Center of Gravity) design for improved flight response.
High-purity copper windings for optimized conductivity.
Integrated 5mm prop shaft for direct racing propeller mounting.

Technical Details

KV Value: 2300 RPM/V
Configuration: 12N14P
No-load Current: 0.6A at 10V
Internal Resistance: 0.06 Ohm
Maximum Continuous Power: 495W
Maximum Continuous Current: 30A
Motor Dimensions: 27.9mm x 31.7mm
Mounting Pattern: 16mm x 19mm (M3 screws)

Prototyping and Engineering Tips from Robogears

Direction Identification: This CW (Clockwise) motor features a standard right-hand thread. The nut tightens against the direction of rotation to prevent loosening during flight.
ESC Pairing: For 4S setups, use a 30A or 40A BLHeli ESC. Ensure the ESC can handle 30A peak bursts during full-throttle maneuvers.
Screw Safety: When mounting, ensure M3 screws do not touch internal copper windings. This will cause a short circuit and destroy both the motor and ESC.
Propeller Choice: Optimized for 5-inch props (e.g., 5045 tri-blades). Avoid oversized props on 4S to prevent exceeding thermal limits.

Package Includes

1 x ReadyToSky RS2205 2300KV Brushless Motor (CW)
1 x Propeller Nut
1 x Set of Mounting Screws

Disclaimer Product images are for illustrative purposes; actual appearance may vary by batch. Specifications are subject to change by the manufacturer. Ensure correct ESC calibration and secure mounting before use. Handle high-speed motors with caution.
