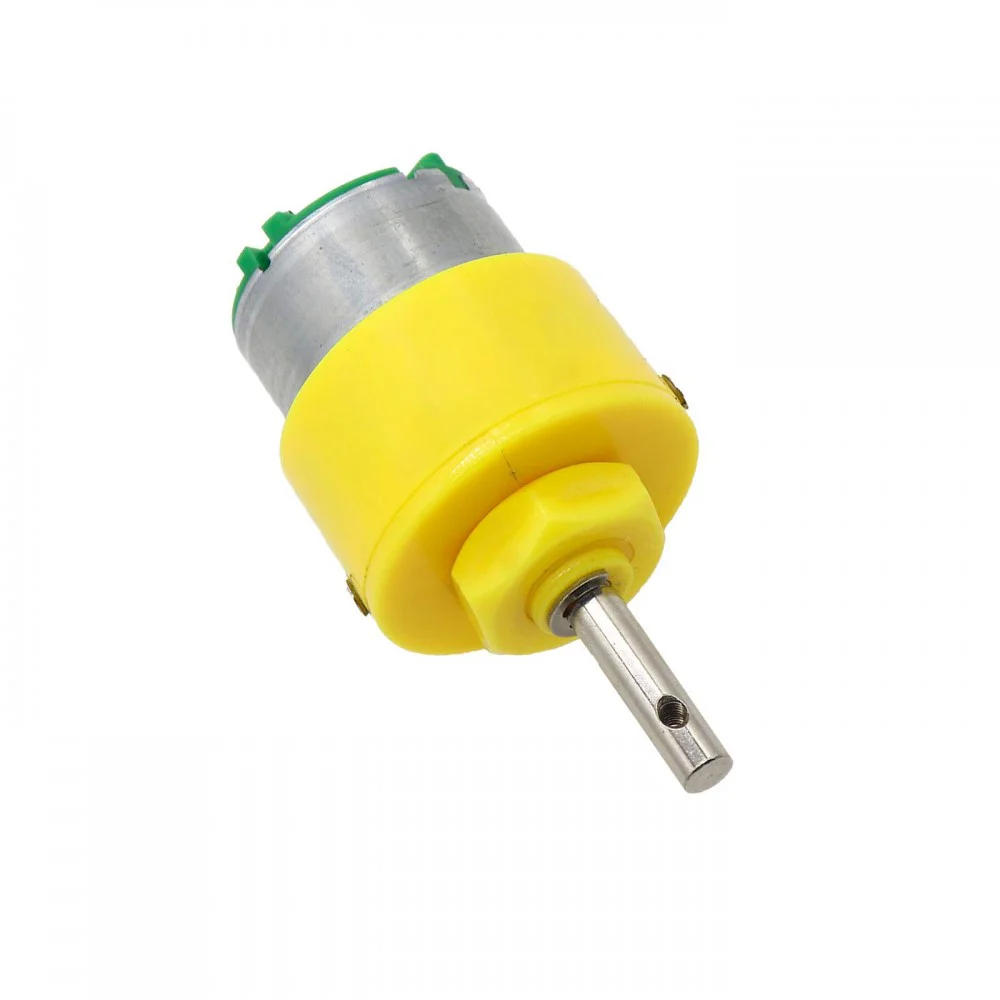

200 RPM 12V Centre Shaft DC Geared Motor High Speed Metal Gearbox Robotic Motor

Component	Specification
Operating Voltage	6V to 12V DC
Rated Voltage	12V DC
No-Load Speed	200 RPM (at 12V)
Shaft Diameter	6 mm
Gearbox Type	Full Metal Spur Gearbox
Shaft Type	Centre Shaft (Straight)
Torque	Approx. 1.5 kg-cm to 3 kg-cm

Price

🚚 Ships within 24 Hours
📦 Pan India Delivery

₹ 165.25

(Tax included)

Barcode: 32791267

Product Description The 200 RPM Centre Shaft DC Geared Motor is a dynamic and versatile actuator, balancing high rotational speed with reliable torque. Specifically designed for mobile robotics and automated machinery, this motor features a high-quality metal gearbox that ensures longevity and smooth power transmission. The 200 RPM output is the "sweet spot" for medium-sized rovers and combat robots, providing enough speed for rapid travel while maintaining the strength to climb small inclines and handle typical payload weights.

Key Features

Rugged metal gears designed for high wear resistance and durability.
High-speed 200 RPM output for fast-response robotic applications.
Standard 37mm diameter cylindrical form factor for easy chassis integration.
Symmetrical centre shaft design for balanced rotation and easy wheel alignment.
Precision 6mm shaft compatible with a vast array of industrial-grade wheels and couplers.

Technical Details

Voltage Range: 6V – 12V DC
Speed at 6V: ~100 RPM
Speed at 12V: 200 RPM
No-Load Current: 120mA to 300mA
Stall Current: ~1.8A to 2.2A (at 12V)
Gearbox Diameter: 37 mm
Shaft Length: 21 mm
Mounting Holes: 6 x M3 Threaded holes on the gearbox face
Rotation: Bi-directional (reverse polarity for CW/CCW)

Prototyping and Engineering Tips from Robogears

Robot Mobility: This motor is ideal for "Explorer" style robots. On a 10cm wheel, a 200 RPM motor will cover approximately 1 meter per second, making it significantly faster than the 100 RPM version.
Torque vs. Speed: If your robot is becoming very heavy (over 2-3kg), consider if you need the speed of the 200 RPM motor or the torque of the 100 RPM version. At higher RPMs, the mechanical advantage is lower, so ensure your motor driver can handle the increased current draw during startups.
Driver Recommendation: The L298N is a reliable choice for this motor. For better efficiency and heat management, the TB6612FNG or a MOSFET-based driver is recommended if you plan to run the motor near its stall current.
Shaft Locking: Always use 6mm hex couplings with dual set-screws. Because 200 RPM creates more vibration than slower motors, using a thread-locking fluid (like blue Loctite) on your mounting and coupling screws will prevent them from vibrating loose.

Package Includes

1 x 200 RPM 12V Centre Shaft DC Geared Motor

Disclaimer Product images are for illustrative purposes; actual appearance or batch numbers may vary. Specifications are subject to change by the manufacturer. Ensure correct power sourcing and secure mounting before use. Handle rotating parts with caution.
