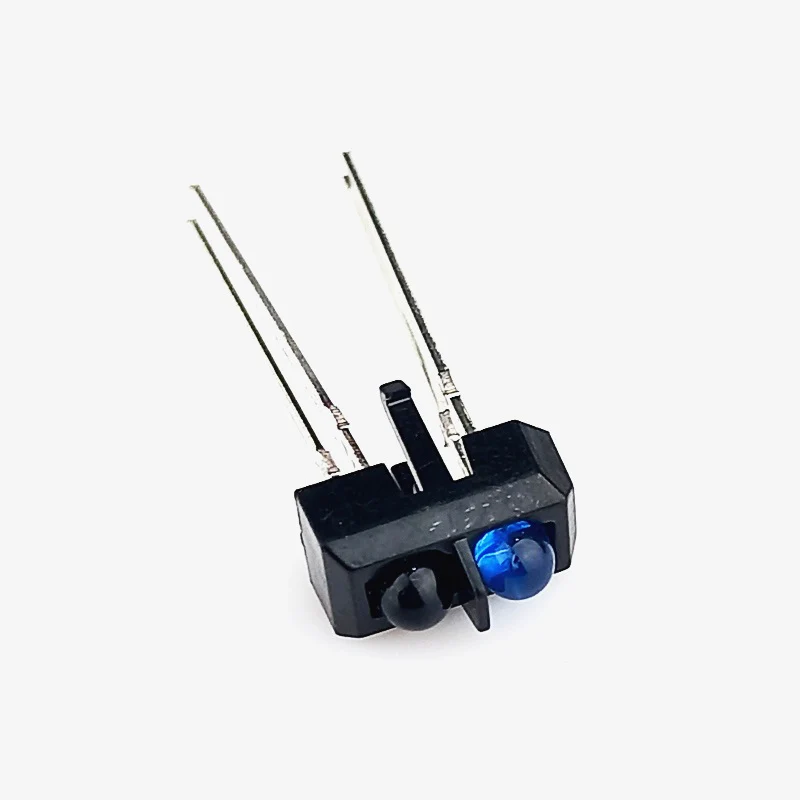

TCRT5000 Reflective IR Transmeter and Receiver Sensor for Line Following and Obstacle Detection

Component	Specification
Sensor Type	Reflective Optical (Coupled Pair)
Housing Size	Approx. 10.2mm x 5.8mm x 7mm
Detection Distance	0.2mm to 15mm (Optimum: 2.5mm)
Wavelength	950nm
Forward Voltage (TX)	1.25V – 1.5V
Collector Current (RX)	100mA (Max)
Mounting Type	Through-Hole (PCB Mount)

Price

🚚 Ships within 24 Hours
📦 Pan India Delivery

₹ 21.19

(Tax included)

Barcode: 551047

Product Description The TCRT5000 is a compact reflective sensor that houses an infrared emitter and a phototransistor in a single leaded package. The black plastic housing is designed to block visible light while allowing IR to pass through. It works by emitting an IR signal and sensing the reflection off a surface. This makes it the industry standard for line-following robots, as it can easily distinguish between a black line (which absorbs IR) and a white surface (which reflects it). Its small form factor allows for high-density sensor arrays on the front of a robot chassis.

Key Features

Integrated Design: Emitter and receiver are pre-aligned in a single housing for consistent performance.
Daylight Filter: The blue/black tinted construction filters out ambient light interference.
High Sensitivity: Capable of detecting minute changes in surface reflectivity.
Snap-In Clips: The housing features small plastic clips for secure mounting onto a PCB or chassis.
Long Life: Solid-state construction with no moving parts.

Technical Details

Transmitter (TX): Blue/Clear side (Infrared LED).
Receiver (RX): Black side (Phototransistor).
Emitter Forward Current: 60mA (Max).
Collector-Emitter Voltage: 70V (Max).

Prototyping and Engineering Tips from Robogears

Line Follower Secret: For the best results in a line follower, mount the sensor about 3mm to 5mm above the ground. If it is too high or too low, the contrast between black and white surfaces will decrease.
Resistor Requirements: * For the Emitter (TX) side: Use a 220Ω resistor when connecting to 5V.
- For the Receiver (RX) side: Use a 10kΩ pull-up resistor. Connect one pin to Ground, the other to your Analog Pin, and pull that same pin to 5V through the resistor.
Cross-Talk Prevention: The TCRT5000 has a built-in physical barrier between the emitter and receiver, but if you are getting "noisy" readings, ensure there isn't a high-gloss surface reflecting light back into the sensor from the sides.
PCB Layout: Because the leads are close together, ensure your solder joints are clean to avoid shorting the emitter and receiver circuits.

Package Includes

1 x TCRT5000 Reflective Optical Sensor

Disclaimer Images are for reference; actual markings on the housing may vary by batch. DO NOT exceed the 60mA current limit on the emitter side, as it will burn out the internal IR LED.
