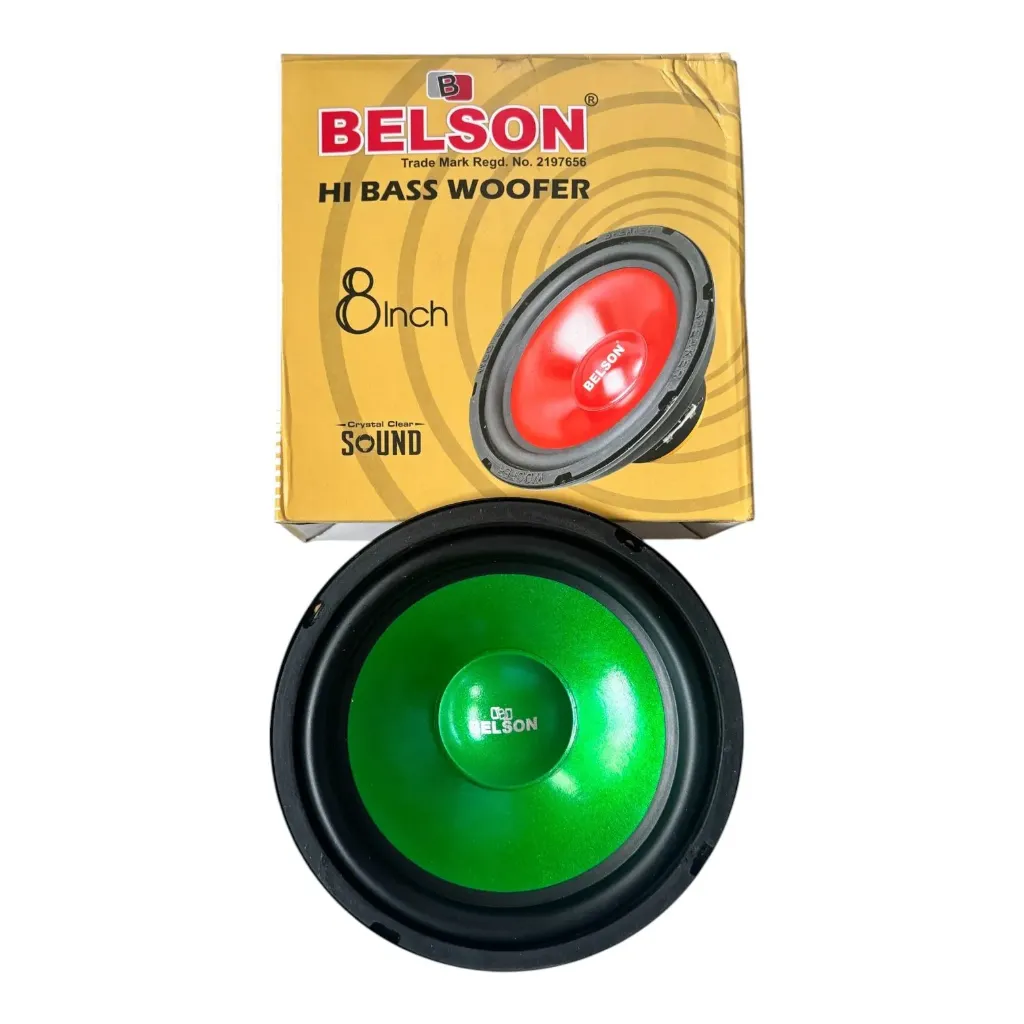

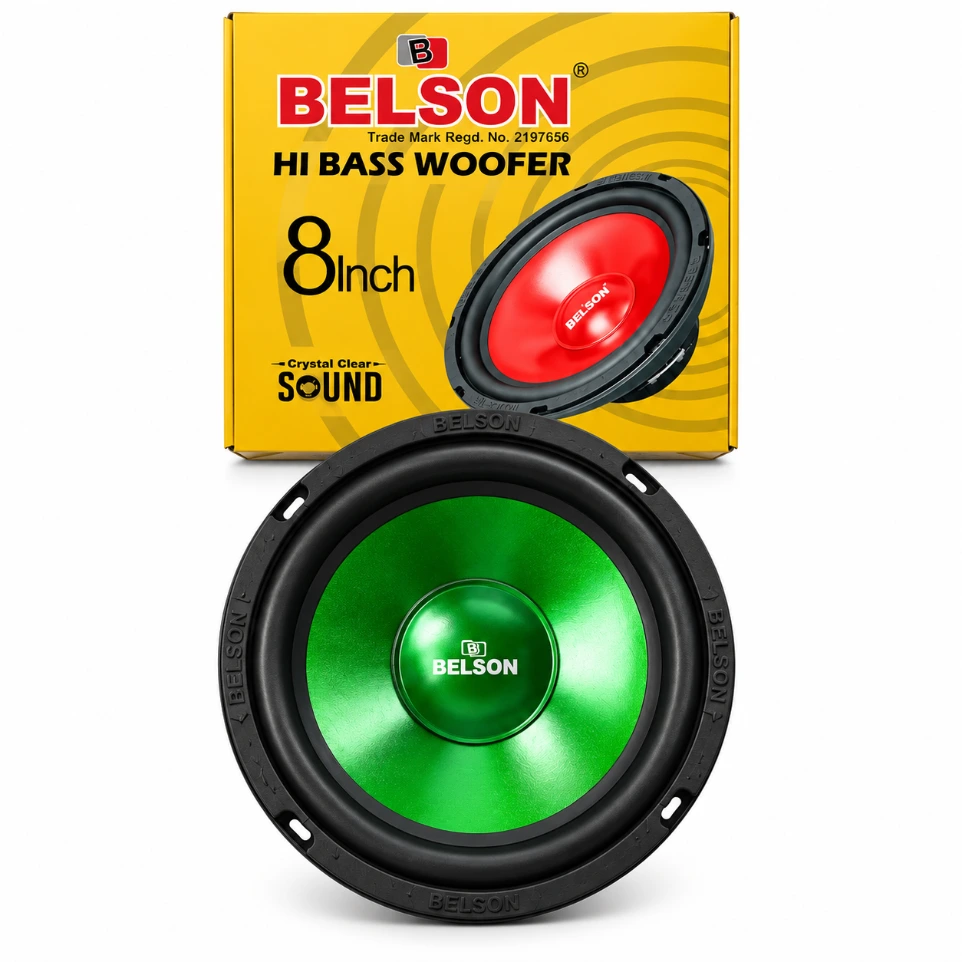

Belson 8 Inch 4 Ohm 50W Audio Woofer Speaker

Key Features

• Belson 8-inch audio woofer

• 4Ω nominal impedance

• 50W published power rating

• Heavy-duty woofer design

• Permanent magnet

• Metal speaker frame

• Passive speaker construction

• Panel / cabinet mounting

• Suitable for home-audio systems

• Suitable for DIY speaker cabinets

• Compatible with suitable 4Ω audio amplifiers

Technical Specifications

Understanding the 50W Rating

The current product specification publishes:

50W

The available source does not identify this as:

• RMS

• Continuous

• Programme

• Peak

Therefore, use:

Published Power Rating: 50W

until the exact manufacturer's rating standard is confirmed.

4Ω Impedance

The speaker presents a nominal:

4Ω load

to the amplifier.

Verify that the connected amplifier supports a 4Ω speaker.

Low-Frequency Application

This product is intended as a:

Woofer / Bass Driver

For a multi-way speaker system, it may be combined with suitable mid/high-frequency drivers and crossover circuitry.

Important Unverified Specifications

Do not publish numerical values for the following unless verified:

• Frequency response

• Resonant frequency (Fs)

• Sensitivity

• Voice-coil diameter

• Magnet size / weight

• Xmax

• Vas

• Qts

• Qes

• Qms

• Mounting depth

• Cut-out diameter

• Overall physical dimensions

Amplifier Compatibility

The most important electrical specification is:

Nominal Impedance: 4Ω

Use an amplifier designed to safely operate with a 4Ω speaker load.

Woofer / Bass Amplifier

For bass-focused applications:

Audio Source

↓

Low-Pass Filter / Suitable Amplifier

↓

Belson 8 Inch Woofer

2.1 Channel System

The speaker can be used as the bass driver in a suitable moderate-power 2.1 audio system.

Typical architecture:

Bluetooth / AUX / Audio Source

↓

2.1 Amplifier

↓

Left Speaker + Right Speaker + Belson 8" Woofer

TPA3116D2 Amplifiers

The speaker can potentially be paired with a suitable TPA3116D2-based amplifier.

However, many TPA3116D2 amplifier boards can deliver substantially more power than this speaker's published 50W rating.

Therefore:

• Start with low gain

• Increase volume gradually

• Avoid excessive bass boost

• Reduce output if distortion occurs

• Avoid excessive cone movement

Lower-Power Amplifiers

A compatible amplifier with less than 50W output can also operate this speaker.

The amplifier does not need to have exactly the same printed wattage as the speaker.

Higher-Power Amplifiers

A higher-powered amplifier may also be used when its actual output is appropriately controlled.

Do not assume that a 100W amplifier continuously sends 100W into the speaker.

Multi-Way Speaker Systems

The Belson woofer can potentially form the bass section of a custom speaker system using:

Woofer + Midrange + Tweeter

with appropriate crossover circuitry.

Applications

• DIY speaker cabinets

• Home-audio systems

• Bass speaker projects

• 2.1 audio systems

• Multimedia speakers

• DIY Bluetooth speaker systems

• Amplifier projects

• Speaker replacement

• Custom audio enclosures

• Educational audio projects

📦 What's Included

❌ What's Not Included

Unless separately specified, the package does not include:

• Audio Amplifier

• Bluetooth Module

• Power Supply

• Speaker Enclosure

• Crossover / Low-Pass Filter

• Speaker Wire

• Mounting Screws

• Speaker Grill

• Tweeter

• Midrange Speaker

• Battery

Important Purchase Note

This product is a:

Passive Audio Woofer

It requires an external amplifier.

Basic Bass System

A typical bass system requires:

Audio Source

Suitable Amplifier / LPF

Belson 8 Inch Woofer

Speaker Enclosure

2.1 System

A typical 2.1 configuration uses:

• Left Speaker

• Right Speaker

• Belson 8 Inch Woofer

• Compatible 2.1 Amplifier

• Suitable Power Supply

• Speaker Enclosure(s)

This listing includes:

1 × Belson 8 Inch 4Ω 50W Woofer Speaker only.

📚 Resources

A reliable manufacturer datasheet containing complete electro-acoustic specifications for this exact Belson woofer has not been verified.

Use the currently confirmed product specifications:

• Brand: Belson

• Size: 8 Inch

• Nominal Impedance: 4Ω

• Published Power Rating: 50W

• Type: Heavy-Duty Woofer

• Magnet: Permanent Magnet

• Frame: Metal

Do not copy specifications from other Belson speakers or visually similar 8-inch drivers.

Parameters Needed for Precision Enclosure Design

For accurate speaker-enclosure simulation, useful parameters include:

• Fs – Resonant Frequency

• Vas – Equivalent Compliance Volume

• Qts – Total Q

• Qes – Electrical Q

• Qms – Mechanical Q

• Xmax – Linear Excursion

• Sensitivity

These parameters have not been verified for this exact speaker.

Getting Started

Step 1 — Select a Compatible Amplifier

Use an amplifier that supports:

4Ω

Step 2 — Decide the Application

For dedicated bass use, use an appropriate:

Low-Pass Filter / Woofer Output

For a multi-way speaker system, use appropriate crossover circuitry.

Step 3 — Connect the Speaker

Follow the actual speaker's polarity markings.

Typical connection:

Amplifier + → Speaker +

Amplifier − → Speaker −

Step 4 — Start at Low Volume

Begin with low amplifier gain and volume.

Increase gradually while listening for:

• Distortion

• Mechanical noise

• Rattling

• Excessive cone movement

Step 5 — Install in an Enclosure

An enclosure strongly influences woofer performance.

The correct enclosure depends on the characteristics of the actual driver.

Step 6 — Don't Guess the Enclosure Volume

Do not publish an exact optimized cabinet volume without verified driver parameters.

An “8-inch speaker” does not automatically require one particular enclosure size.

Step 7 — Measure Before Cutting

For custom cabinets, physically measure the supplied driver for:

• Outer diameter

• Cut-out diameter

• Mounting depth

• Mounting-hole spacing

before making the final cabinet.

Step 8 — Secure the Driver

Mount the speaker firmly to minimize unwanted vibration and rattling.

🔧 Prototyping and Engineering Tips from RoboGears

1. Match the Amplifier to 4Ω

The speaker's nominal impedance is:

4Ω

Verify that the amplifier can safely drive a 4Ω load.

2. Treat 50W as a Published Rating

The current product information states:

50W

but does not establish an RMS or continuous measurement standard.

Do not automatically advertise:

50W RMS

or:

100W Peak

without supporting documentation.

3. You Do Not Need an Exactly 50W Amplifier

A speaker does not require an amplifier with exactly the same printed wattage.

A compatible lower-power amplifier can operate the speaker.

A higher-power amplifier may also be used when the actual output is appropriately controlled.

4. Amplifier Wattage Is Not Constant Speaker Power

A 100W amplifier does not continuously send 100W into the speaker.

Actual output depends on:

• Audio signal

• Volume

• Gain

• Supply voltage

• Speaker impedance

However, a powerful amplifier can exceed the speaker's safe limits when driven hard.

5. Use Low-Pass Filtering for Bass-Only Applications

For dedicated woofer / bass operation:

Source → LPF → Amplifier → Woofer

or use an amplifier with a dedicated filtered bass channel.

6. Don't Assume One Universal Crossover Frequency

The correct crossover depends on:

• Other speakers

• Enclosure

• Desired response

• Complete audio system

Avoid advertising one crossover value as universally correct.

7. Enclosure Design Strongly Affects Bass

Important factors include:

• Internal volume

• Cabinet rigidity

• Unintended air leakage

• Port tuning

• Driver parameters

• Installation

8. Don't Guess Box Volume From Driver Diameter

The fact that the speaker is:

8 Inch

does not provide enough information to calculate an optimized enclosure.

Accurate calculations require additional driver parameters.

9. Don't Guess Port Dimensions

A bass-reflex port should be designed according to the driver, enclosure volume and desired tuning.

Random port dimensions can produce poor results.

10. Secure Mounting Matters

Loose mounting can create:

• Rattling

• Buzzing

• Cabinet vibration

• Unwanted air leakage

Mount the woofer firmly to the cabinet.

11. Don't Overstate “Heavy Duty”

The product is sold as a:

Heavy-Duty Woofer

but no continuous-duty or endurance test has been provided.

Avoid translating this into claims such as:

• Professional continuous operation

• Industrial-duty speaker

• Guaranteed high-volume continuous use

12. Don't Overstate the Magnet

The product specifies a:

Permanent Magnet

The exact magnet material, diameter and weight have not been verified.

Do not claim ferrite, neodymium or a particular magnet size unless confirmed from the actual speaker.

13. Cone Material Is Not Verified

The current page says:

Reinforced Audio Cone

but does not specify its material.

Do not describe it as:

• Paper

• Polypropylene

• Composite

• Kevlar

without confirmation.

14. Avoid Excessive Bass Boost

Heavy bass boost increases both amplifier demand and cone excursion.

Reduce output if the speaker shows:

• Distortion

• Mechanical knocking

• Excessive movement

15. Clipping Is Not the Only Cause of Speaker Damage

Possible causes include:

• Excessive power

• Severe clipping

• Excessive excursion

• Incorrect crossover

• Mechanical damage

• DC faults

• Poor installation

16. Never Connect Directly to a Battery or DC Supply

Do not connect the speaker directly to:

• 12V battery

• 12V adapter

• 24V supply

• 36V supply

• 48V supply

The speaker must connect to an:

Audio Amplifier Output

17. Test Before Closing the Cabinet

Before final assembly:

• Verify polarity

• Test the amplifier

• Check crossover operation

• Listen for rubbing or rattling

• Check mounting clearance

• Increase volume gradually

Common Troubleshooting

Weak Bass

Check enclosure design, amplifier output and crossover settings.

Boomy Bass

Check cabinet design, port tuning and EQ.

Distortion

Reduce amplifier gain and check for clipping.

Mechanical Knocking

Reduce output immediately.

Rattling

Check speaker mounting and cabinet construction.

Speaker Gets Hot / Smells

Stop playback immediately and inspect the system.

No Sound

Check speaker continuity, wiring, amplifier and source signal.

Engineering Principle

For this woofer:

Correct 4Ω Amplifier + Controlled Output + Appropriate Filtering + Proper Enclosure

matter more than simply matching the printed 50W rating.

FAQ

1. What is this product?

It is a Belson 8-inch passive audio woofer speaker.

2. What is the speaker size?

8 Inch

3. What is the impedance?

4Ω

4. What is the power rating?

The current product specification states:

50W

5. Is it 50W RMS?

The available product information does not identify the 50W rating as RMS.

Therefore, it should be listed as:

50W Published Power Rating

6. What is the peak power?

A verified peak-power specification is not currently available.

7. Is it a passive speaker?

Yes.

It requires an external audio amplifier.

8. Does it have Bluetooth?

No.

9. Does it have a built-in amplifier?

No.

10. Can I connect it directly to a battery?

No.

The battery powers the amplifier; the speaker connects to the amplifier output.

11. Can I connect it directly to 12V?

No.

12. Can I connect it directly to 24V?

No.

13. What amplifier should I use?

Use an amplifier designed to safely operate with a:

4Ω speaker load

14. Do I need exactly a 50W amplifier?

No.

The amplifier does not need to have exactly the same printed wattage.

15. Can I use a lower-power amplifier?

Yes.

Maximum available output will be limited by the amplifier.

16. Can I use a higher-power amplifier?

Potentially yes, but the output must be controlled to avoid exceeding the speaker's limits.

17. Can I use a TPA3116D2 amplifier?

Yes, provided the particular amplifier supports a 4Ω load and its output is controlled appropriately.

18. Can I use it with a 2.1 amplifier?

Yes, when the amplifier provides a suitable 4Ω-compatible bass/subwoofer output.

19. Can I use CA-3316A?

Potentially yes.

The CA-3316A is capable of more output than may be required by this 50W woofer, so control the output appropriately.

20. Do I need a low-pass filter?

For dedicated bass/woofer operation, low-pass filtering is recommended.

21. What crossover frequency should I use?

There is no single universal crossover frequency.

It depends on the other speakers and overall system design.

22. What is the frequency response?

A verified numerical frequency response is not currently available.

23. What is the resonant frequency (Fs)?

Not verified.

24. What is the sensitivity?

Not verified.

25. What is the voice-coil size?

Not verified.

26. What is Xmax?

Not verified.

27. What is Qts?

Not verified.

28. What is Vas?

Not verified.

29. What magnet does it use?

The current product information states:

Permanent Magnet

The exact magnet material has not been verified.

30. Is it a ferrite magnet?

Not confirmed.

31. Is it a neodymium magnet?

Not confirmed.

32. What is the cone material?

The exact cone material has not been verified.

33. What is the mounting depth?

Not currently verified.

Measure the actual speaker where exact cabinet dimensions are required.

34. What is the cut-out diameter?

Not currently verified.

Measure the supplied driver before cutting the final cabinet.

35. Does it require an enclosure?

A suitable enclosure is strongly recommended for normal woofer applications.

36. Can I use a sealed enclosure?

Potentially yes.

Correct design depends on the driver's electro-acoustic parameters.

37. Can I use a ported enclosure?

Potentially yes.

Correct ported-enclosure design requires appropriate driver data and calculated tuning.

38. What enclosure volume should I use?

An exact optimized enclosure volume cannot be responsibly specified without verified driver parameters such as Fs, Vas and Qts.

39. Can I use it for home audio?

Yes.

Home audio is one of the listed applications.

40. Can I use it for a DIY Bluetooth speaker?

Yes, with a suitable Bluetooth amplifier.

41. Can I use it in a 2.1 speaker system?

Yes, with an appropriate 2.1 amplifier and crossover configuration.

42. Can I use it as a full-range speaker?

It is sold as a woofer / low-frequency driver.

For broader frequency reproduction, use appropriate midrange/full-range speakers and tweeters.

43. Can I use it for professional PA or DJ systems?

Professional continuous-duty capability has not been verified for this exact driver.

44. Is it waterproof?

No waterproof or IP rating is specified.

45. What is included?

1 × Belson 8 Inch 4Ω 50W Audio Woofer Speaker

46. Is an amplifier included?

No.

47. Is the enclosure included?

No.

48. Are speaker wires included?

Not specified as included.

49. Are mounting screws included?

Not specified as included.

Disclaimer

Product appearance, cone design, magnet construction and frame finish may vary slightly between manufacturing batches.

Where exact dimensions or acoustic parameters are important, verify the supplied speaker before designing or cutting the final enclosure.
