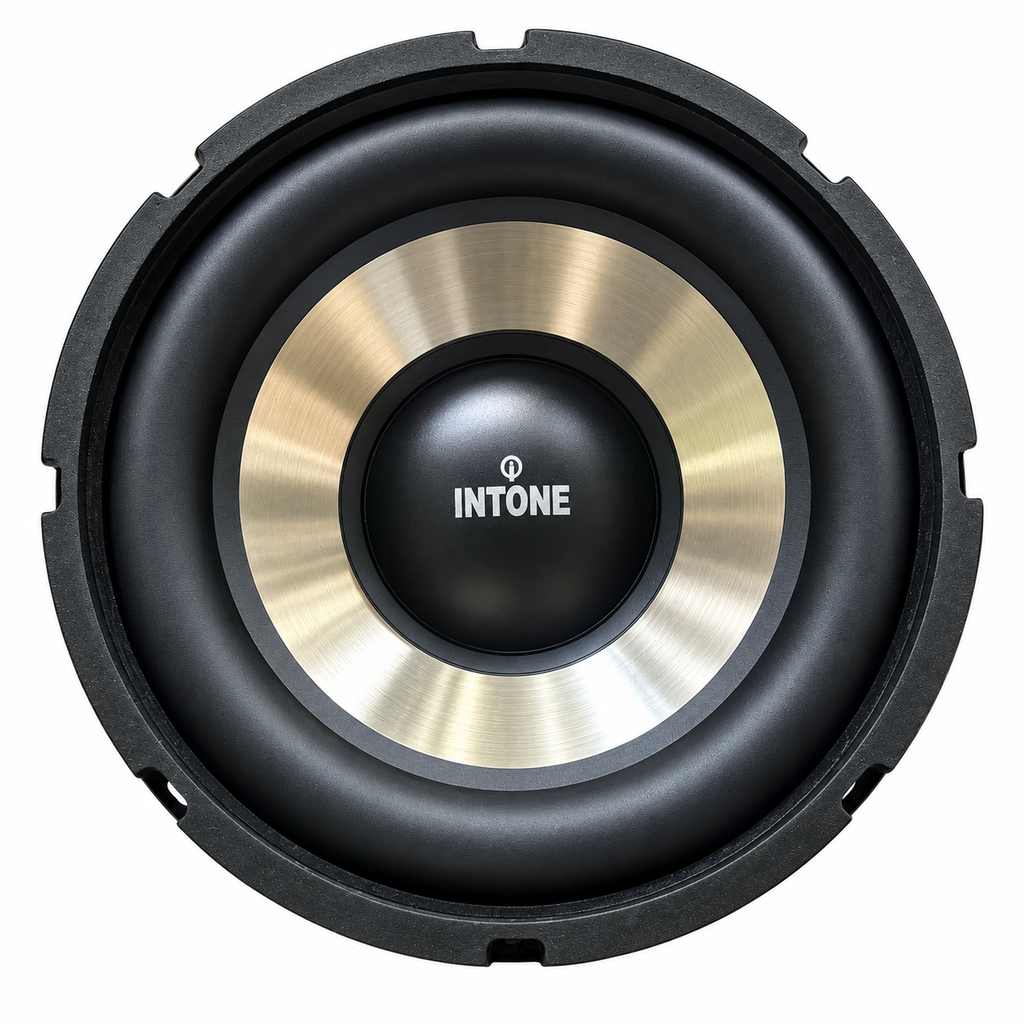

Intone 10 Inch 4Ω 150W Subwoofer Speaker

Key Features

• Intone 10-inch subwoofer speaker

• Large bass-driver design

• 4Ω nominal impedance

• 150W published power rating

• Ferrite magnet

• Passive speaker construction

• Metal speaker frame

• Cabinet / panel mounting

• Suitable for home-theatre applications

• Suitable for DIY subwoofer cabinets

• Suitable for custom audio systems

Technical Specifications

Understanding the 150W Rating

The current product specification publishes:

150W

However, the available product information does not provide the measurement standard or indicate whether 150W represents:

• Continuous power

• RMS power

• Programme power

• Maximum power

• Peak power

Therefore, the technically safer specification is:

Published Power Rating: 150W

Do not advertise:

150W RMS

unless this is confirmed from the manufacturer's documentation or physical product markings.

4Ω Speaker Load

The speaker presents a nominal:

4Ω load

to the amplifier.

The connected amplifier must support operation with a 4Ω speaker.

Important Unverified Specifications

The following specifications have not been verified for the exact Intone driver:

• Frequency response

• Resonant frequency (Fs)

• Sensitivity

• Voice-coil diameter

• Voice-coil material

• Magnet weight

• Xmax / cone excursion

• Qts

• Qes

• Qms

• Vas

• Mounting depth

• Cut-out diameter

These should not be added to the listing unless measured or obtained from a reliable manufacturer source.

Amplifier Compatibility

The most important electrical specification is:

Nominal Impedance: 4Ω

Use an amplifier designed to operate safely with a 4Ω speaker load.

Dedicated Subwoofer Amplifier

For dedicated bass operation, the preferred configuration is:

Audio Source

↓

Low-Pass Filter / Subwoofer Amplifier

↓

Intone 10 Inch Subwoofer

A dedicated subwoofer amplifier allows the driver to reproduce primarily lower-frequency content.

2.1 Channel Amplifier

The speaker can also form the bass channel of a suitable 2.1 system.

Typical architecture:

Bluetooth / AUX / Audio Source

↓

2.1 Channel Amplifier

↓

Left Speaker + Right Speaker + Intone 10" Subwoofer

TPA3116D2 Amplifier Boards

Suitable TPA3116D2-based subwoofer or 2.1 amplifier boards can be used when:

• The amplifier supports a 4Ω subwoofer load

• The amplifier output is appropriate for the speaker

• Power supply requirements are correctly met

• Output level is adjusted responsibly

CA-3316A

A TPA3116D2-based mono subwoofer amplifier such as the CA-3316A can be used for a moderate-power project with this 4Ω speaker.

Its actual available output depends on supply voltage, load and operating conditions.

Higher-Power Amplifiers

When using a more powerful amplifier, begin with low gain and volume.

Do not assume that the speaker's published 150W figure means it can safely absorb 150W continuously.

Low-Pass Filter

For dedicated subwoofer use, a low-pass-filtered signal is recommended.

The optimum crossover frequency depends on:

• Main speakers

• Enclosure

• Listening environment

• Desired system response

There is no single crossover frequency that is correct for every system.

Applications

• DIY home-theatre subwoofers

• 2.1-channel audio systems

• DIY subwoofer cabinets

• Custom Bluetooth speaker systems

• Multimedia audio systems

• Power-amplifier projects

• Bass speaker replacement

• Hobby audio projects

• Custom speaker enclosures

📦 What's Included

❌ What's Not Included

Unless separately specified, the package does not include:

• Audio Amplifier

• 2.1 Amplifier Board

• Low-Pass Filter / Crossover

• Power Supply

• Speaker Enclosure

• Speaker Grill

• Speaker Wire

• Mounting Screws

• Bluetooth Module

• Left / Right Satellite Speakers

• Battery

Important Purchase Note

This product is a:

Passive Subwoofer Speaker Driver

An external amplifier is required.

Basic Subwoofer System

A typical system requires:

Audio Source

Subwoofer Amplifier / LPF

Intone 10 Inch Subwoofer

Suitable Speaker Enclosure

2.1 System

For a complete 2.1 system:

Audio Source

↓

2.1 Amplifier

↓

Left Speaker + Right Speaker + Intone Subwoofer

This listing includes:

1 × Intone 10 Inch Subwoofer Speaker only.

📚 Resources

A reliable manufacturer datasheet for this exact Intone 10-inch 150W driver has not been located.

Therefore, use the specifications confirmed on the current product listing:

• Brand: Intone

• Size: 10 Inch

• Impedance: 4Ω

• Published Power Rating: 150W

• Magnet Type: Ferrite

• Speaker Type: Passive Subwoofer

Do not assume generic specifications from another 10-inch speaker.

Parameters Required for Precision Enclosure Design

For an accurately modelled enclosure, useful driver parameters include:

• Fs – Resonant Frequency

• Vas – Equivalent Compliance Volume

• Qts – Total Q

• Qes – Electrical Q

• Qms – Mechanical Q

• Xmax – Linear Excursion

• Sensitivity

These values have not been verified for this exact Intone driver.

Getting Started

Step 1 — Verify the Amplifier

Use an amplifier that supports:

4Ω

Step 2 — Prefer a Subwoofer Output

For dedicated bass operation, connect the speaker to:

Subwoofer / Mono Bass Output

with appropriate low-pass filtering.

Step 3 — Check Polarity

Follow the + and − markings on the actual speaker terminals.

Typical connection:

Amplifier + → Speaker +

Amplifier − → Speaker −

Step 4 — Start at Low Volume

Begin with:

• Low master volume

• Low subwoofer gain

• Moderate bass/EQ settings

Increase gradually.

Step 5 — Listen for Stress

Reduce the output if you hear:

• Heavy distortion

• Mechanical knocking

• Buzzing

• Rattling

or observe excessive cone movement.

Step 6 — Install in an Enclosure

A suitable enclosure is strongly recommended for finished bass applications.

The enclosure has a major effect on low-frequency performance.

Step 7 — Don't Guess an “Ideal” Box Volume

A precise sealed or bass-reflex enclosure normally requires the driver's electro-acoustic parameters.

Since those values are not verified, RoboGears should not publish a supposedly optimized enclosure volume for this driver.

Step 8 — Protect the Driver

For exposed installations, use a suitable speaker grill to protect the cone and surround from accidental contact.

🔧 Prototyping and Engineering Tips from RoboGears

1. 4Ω Is the Most Important Matching Specification

The speaker has a nominal impedance of:

4Ω

Before selecting an amplifier, confirm that the amplifier supports a 4Ω speaker load.

2. Treat 150W as a Published Rating

Do not automatically advertise:

150W RMS

The available product information establishes:

150W Published Power Rating

but does not provide the power-rating measurement standard.

3. Amplifier Power Does Not Flow Constantly

Connecting the speaker to a 150W amplifier does not mean the speaker continuously receives 150W.

Actual delivered power depends on:

• Signal

• Volume

• Amplifier gain

• Supply voltage

• Speaker impedance

4. Don't Oversize the Amplifier Without Understanding the System

A higher-power amplifier can potentially be used, but it can also exceed the driver's safe thermal or mechanical limits.

Begin with low gain and increase output gradually.

5. Use Low-Pass Filtering

For dedicated subwoofer operation, use:

LPF / Subwoofer Output

This prevents unnecessary mid/high-frequency content from being sent to the bass driver.

6. Don't Publish One Universal Crossover Frequency

The correct crossover depends on the accompanying speakers and system.

For example, larger satellite speakers may integrate at a lower crossover than very small satellite speakers.

Tune the system rather than assuming one fixed frequency.

7. A 10-Inch Driver Can Move More Air Than a Small Woofer

The larger diaphragm area makes a 10-inch driver better suited to substantial bass reproduction than very small drivers under comparable design conditions.

However, driver diameter alone does not determine bass extension or maximum output.

8. Enclosure Design Is Critical

Bass performance depends strongly on:

• Internal enclosure volume

• Enclosure type

• Port tuning, if used

• Cabinet rigidity

• Air leakage

• Driver characteristics

9. Don't Guess Bass-Reflex Port Dimensions

A random port can produce:

• Poor tuning

• Excessive port noise

• Weak bass

• Peaky bass response

• Reduced driver control

Use proper driver data before claiming an optimized port design.

10. Sealed Enclosure Is Not Automatically Better or Worse

Sealed and bass-reflex designs involve different trade-offs.

The appropriate design depends on the driver's parameters and desired response.

11. Damping Material Can Help, But Don't Overstate It

Internal damping can reduce some internal reflections and resonances.

It does not automatically correct an incorrectly designed enclosure.

12. Avoid Excessive Bass Boost

Heavy electronic bass boost increases amplifier output and speaker excursion requirements.

If the driver begins to distort or move excessively, reduce:

• Volume

• Bass boost

• Subwoofer gain

13. Amplifier Clipping Is Not the Only Damage Mechanism

Speaker damage can result from:

• Excessive thermal power

• Amplifier clipping

• Excessive cone excursion

• Incorrect crossover

• Mechanical damage

• DC faults

• Incorrect installation

14. Never Connect the Speaker Directly to DC

Do not connect this speaker directly to:

• 12V battery

• 24V supply

• 36V supply

• 48V supply

• SMPS output

The speaker connects to an:

Audio Amplifier Output

15. Test Before Closing the Cabinet

Before final assembly:

• Check speaker polarity

• Check amplifier operation

• Check crossover operation

• Listen for rubbing or rattling

• Check mounting clearance

• Check cabinet sealing

• Test gradually at increasing volume

Common Troubleshooting

Weak Bass

Check:

• Enclosure

• LPF settings

• Amplifier output

• Source signal

Bass Is Boomy

Check enclosure design, port tuning and EQ.

Mechanical Knocking

Reduce output immediately. Excessive cone excursion may be occurring.

Distortion

Reduce amplifier gain/volume and check for clipping.

Speaker Gets Hot or Smells

Stop operation immediately and inspect the system.

No Sound

Check:

• Speaker continuity

• Amplifier

• Wiring

• Audio source

• Crossover settings

Engineering Principle

For a large passive subwoofer:

Correct 4Ω Amplifier + Controlled Power + Proper Low-Pass Filtering + Correct Enclosure

are more important than simply matching the number “150W.”

FAQ

1. What is this product?

It is an Intone 10-inch passive subwoofer / woofer speaker driver.

2. What is the speaker size?

10 Inch

3. What is the impedance?

4Ω

4. What is the power rating?

The current product specification publishes:

150W

5. Is it 150W RMS?

The available product information does not specify whether the 150W rating is RMS, continuous, programme or maximum power.

Therefore, RoboGears lists it as:

150W Published Power Rating

6. Is it a passive subwoofer?

Yes.

It requires an external audio amplifier.

7. Does it have a built-in amplifier?

No.

8. Does it have Bluetooth?

No.

9. Can I connect it directly to a battery?

No.

A battery powers the amplifier; the speaker connects to the amplifier output.

10. Can I connect it directly to 12V?

No.

11. Can I connect it directly to 24V?

No.

12. What amplifier impedance should I use?

Use an amplifier that supports a:

4Ω speaker load

13. Do I need exactly a 150W amplifier?

No.

The amplifier does not need to have exactly the same printed wattage.

Correct impedance compatibility and controlled output are more important.

14. Can I use a lower-power amplifier?

Yes, provided it supports a 4Ω load.

Maximum available speaker output will be limited by the amplifier.

15. Can I use a higher-power amplifier?

Potentially yes, but the amplifier may be capable of exceeding the speaker's safe operating limits.

Control the gain and volume appropriately.

16. Can I use a TPA3116D2 amplifier?

Yes, if the particular amplifier configuration supports a 4Ω subwoofer load.

17. Can I use it with a 2.1 amplifier?

Yes.

A suitable 2.1 amplifier with a dedicated subwoofer channel is a good application.

18. Can I use it with CA-3316A?

It can be paired with a compatible TPA3116D2-based mono subwoofer amplifier such as the CA-3316A for a moderate-power project.

19. Can I use it with ZK-TB21?

Potentially yes.

The ZK-TB21 provides a dedicated subwoofer channel and supports suitable low-impedance speaker loads.

Control the subwoofer output appropriately.

20. Can I use it with ZK-ST21?

Potentially yes, but the ZK-ST21 can provide substantially more subwoofer output than this speaker's published 150W rating.

Use appropriate gain and output control.

21. Do I need a low-pass filter?

For dedicated subwoofer operation:

Yes, it is recommended.

A 2.1 amplifier normally provides the required subwoofer filtering.

22. What crossover frequency should I use?

There is no single universal setting.

The optimum crossover depends on the main speakers, enclosure and desired system response.

23. What is the frequency response?

A verified frequency-response specification for this exact Intone driver is not currently available.

24. How low can it play?

An exact lower-frequency limit has not been verified.

Bass extension depends heavily on the driver parameters and enclosure.

25. What is its resonant frequency (Fs)?

Not verified.

26. What is its sensitivity?

Not verified.

27. What is its Xmax?

Not verified.

28. What is the voice-coil size?

Not verified.

29. What magnet does it use?

Ferrite Magnet

30. What is the magnet weight?

Not verified.

31. What is the mounting depth?

Not verified.

Measure the supplied unit before designing a precision-fit enclosure.

32. What is the cut-out diameter?

Not verified.

Measure the actual speaker before cutting the final cabinet.

33. Does it require an enclosure?

A suitable enclosure is strongly recommended for normal subwoofer applications.

34. Can I use a sealed enclosure?

Potentially yes.

Proper design requires the driver's electro-acoustic parameters.

35. Can I use a bass-reflex / ported enclosure?

Potentially yes.

Correct ported design requires suitable driver parameters and calculated tuning.

36. What enclosure volume should I use?

An exact optimized enclosure volume cannot be responsibly specified without verified driver parameters such as Fs, Vas and Qts.

37. Can I use it for home theatre?

Yes.

Home-theatre and DIY audio are listed applications.

38. Can I use it for a DIY Bluetooth speaker?

Yes, with a suitable Bluetooth amplifier and enclosure.

39. Can I use it for DJ speakers?

The current product page mentions DJ applications, but continuous-duty/pro-audio specifications have not been verified.

For demanding professional use, verify the driver's detailed specifications first.

40. Can I use it as a normal full-range speaker?

It is intended as a bass/subwoofer driver.

Use suitable midrange/full-range speakers and tweeters when broader frequency reproduction is required.

41. Is it waterproof?

No waterproof or IP rating is specified.

42. What is included?

1 × Intone 10 Inch 4Ω 150W Subwoofer Speaker

43. Is the amplifier included?

No.

44. Is the enclosure included?

No.

45. Are mounting screws included?

Not specified as included.

Disclaimer

Product appearance, cone design, frame details, magnet construction and other minor manufacturing details may vary between batches.

Where exact dimensions or acoustic parameters are critical, measure and verify the supplied driver before designing the final enclosure.
