DIY – Wind Power Electricity Kit – Tested & Verified (Educational projects and learning DIY kit)

DIY – Wind Power Electricity Kit – Tested & Verified (Educational projects and learning DIY kit)

(0 review)
ComponentSpecification
Generator TypeMini DC Motor (High-Efficiency Induction)
Output IndicatorRed High-Brightness LED
Propeller SystemDual Multi-Blade High-Pitch Fans
Power InputExternal Wind Source (Fan or Natural Wind)
Frame MaterialDurable ABS Modular Brackets
Assembly TypeMechanical Nut & Bolt System
Price
₹ 203.39 ₹ 203.39
(Tax included)

Barcode: 018942

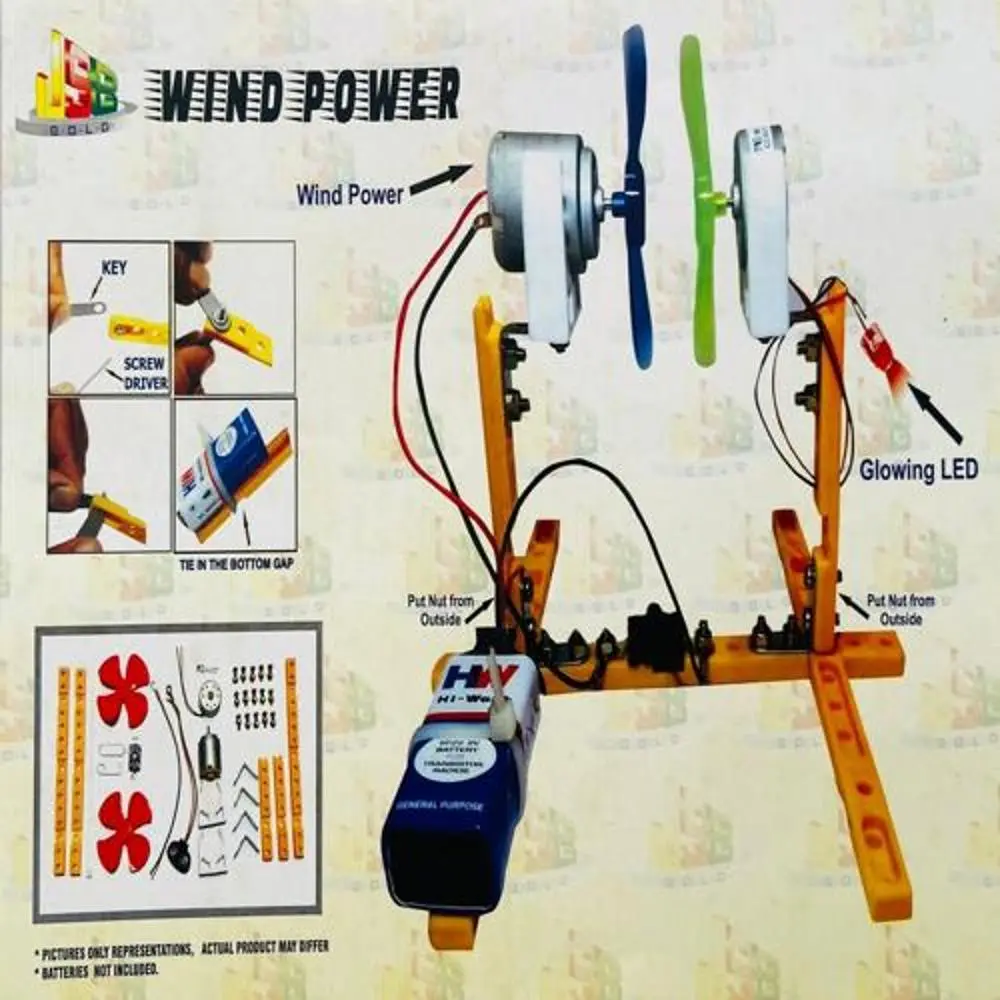

Product Description The DIY Wind Power Electricity Kit is an immersive educational tool designed to demonstrate the conversion of mechanical wind energy into electrical energy. By assembling a vertical turbine structure, students can witness the Law of Energy Conservation in action. When an external wind source rotates the primary fan, the connected DC motor acts as a generator, producing enough voltage to illuminate the integrated LED. This "tested and verified" kit is a premier choice for science exhibitions and environmental studies.

Key Features

  • Dual-Fan Efficiency: Includes a primary drive fan and a secondary generator fan to maximize energy capture from air currents.

  • Visual Learning: Provides immediate feedback; the faster the wind spins the blades, the brighter the LED glows.

  • Sturdy Vertical Design: Features a wide-base support structure to ensure stability while under high-speed air pressure from external fans.

  • Hands-On STEM: Introduces complex concepts like electromagnetic induction and renewable energy through simple mechanical assembly.

  • Pre-Verified Components: Every generator motor and LED is tested to ensure a successful "light-up" experience during classroom demonstrations.

Technical Details

  • Physics Principle: The wind spins the turbine blades, which turns the internal shaft of the DC motor. The moving magnetic field inside the motor induces an electric current in the copper coils.

  • Circuitry: A simple two-wire connection from the motor leads directly to the LED, requiring no complex soldering or external batteries to show power generation.

  • Modularity: The ABS plastic strips are pre-drilled, allowing students to experiment with different frame heights or motor angles.

Prototyping and Engineering Tips from Robogears

  • The "Sweet Spot": For the best results, use a high-speed table fan or a hair dryer (on the cool setting) as your wind source. Position the boat roughly 15–20 cm away from the source for consistent rotation.

  • LED Polarity: Remember that LEDs only work in one direction. If the blades are spinning fast but the LED isn't glowing, try reversing the wires connected to the motor or spinning the fan in the opposite direction.

  • Friction Reduction: Ensure the nuts on the motor shaft are secure but not so tight that they press against the motor body. A tiny drop of machine oil on the motor shaft can help it spin more freely under low wind speeds.

  • Storage Tip: Since this kit relies on thin electrical leads, avoid pulling on the wires when disassembling. Store the generator motor in a dry, dust-free bag to prevent the internal brushes from oxidizing.

Package Includes

  • 1 x Mini DC Generator Motor

  • 2 x High-Pitch Propellers (Blades)

  • 1 x High-Brightness Red LED

  • 1 x Set of ABS Plastic Support Strips

  • 1 x Complete Hardware Set (Nuts, Bolts, Washers)

  • 1 x Set of Connecting Wires

Disclaimer Images are for reference; the color of the blades and plastic strips may vary. NO BATTERY REQUIRED: This kit generates its own power from wind. Avoid using the "Heat" setting on hair dryers, as excessive heat can warp the plastic blades.
