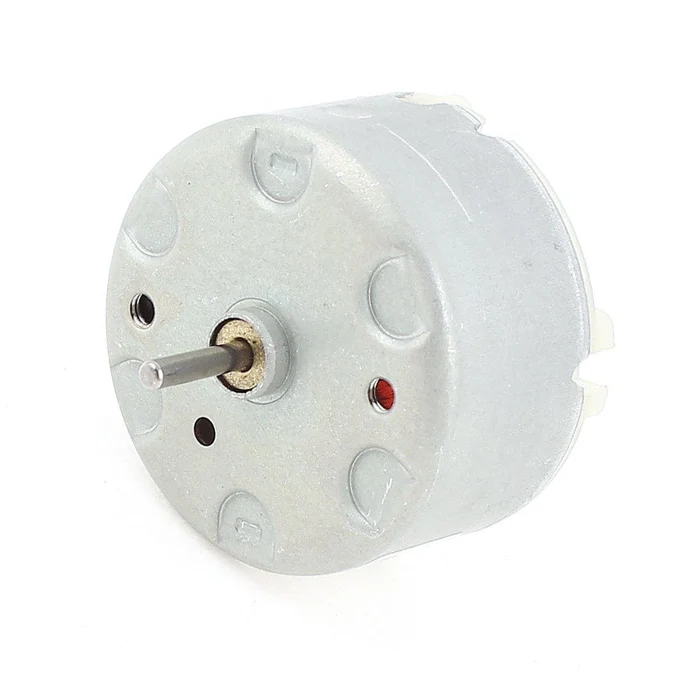

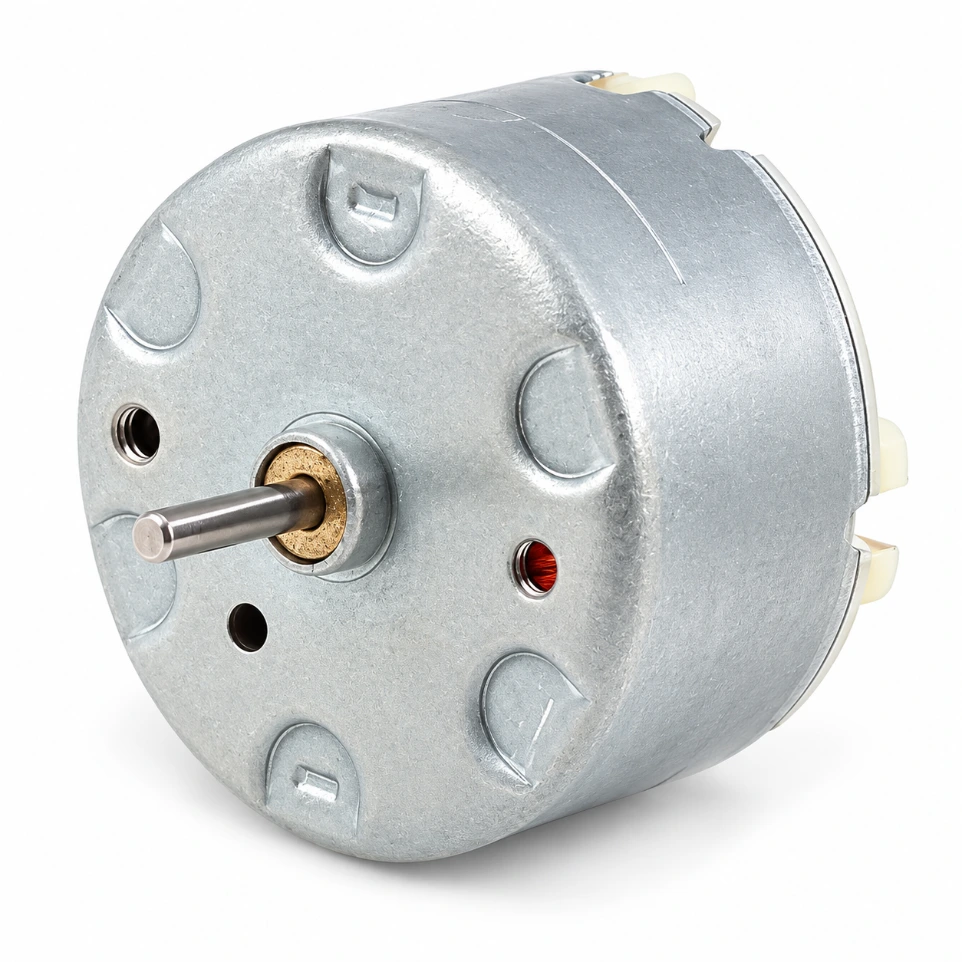

32mm DC Motor - 5V to 12V Versatile Hobby Motor (2300-5600 RPM No-Load)

Specification	Details
Motor Diameter	32 mm
Operating Voltage	DC 5V to 12V
No-Load Speed (at 5V)	~2300 RPM
No-Load Speed (at 12V)	~5600 RPM
Shaft Diameter	2.0 mm (Standard)
No-Load Current	~30mA - 60mA
Motor Length	~20mm - 25mm (Excluding Shaft)

Price

₹ 42.37

(Tax included)

Barcode: 087499

Product Description

This 32mm Diameter DC Motor is a versatile, mid-sized circular motor designed for a wide array of DIY projects, robotics, and small appliance repairs. Balancing torque and speed, it operates efficiently across a broad voltage range from 5V to 12V. Its flat, cylindrical "pancake" style form factor makes it ideal for applications with limited vertical space. Whether you are building a solar-powered fan, a small motorized toy, or an experimental turntable, this motor provides smooth rotation with relatively low power consumption, making it easily compatible with standard battery packs and motor drivers.

Key Features

Wide Voltage Range: Operates safely from 5V to 12V, allowing for variable speed control based on the input voltage.
Compact Circular Profile: The 32mm diameter provides a stable base for mounting pulleys or small fan blades.
Low Noise Operation: Precision-balanced internal rotor ensures quiet performance even at higher RPMs.
Efficient Power Consumption: Draws very little current under no-load conditions, preserving battery life in portable projects.
Durable Metal Casing: High-quality housing protects internal windings and helps dissipate heat during extended use.

Technical Details

Commutation: Brushed.
Rotation: Bi-directional (Swap polarity to reverse).
Mounting: Standard screw holes on the front face (typically M2 or M2.5).

Prototyping and Engineering Tips from Robogears

Speed vs. Voltage: CRITICAL: Note that the RPM scales almost linearly with voltage. At 5V, the motor will be quiet and slow; at 12V, it will reach maximum speed but generate more heat. If you need precise speed control, use a PWM (Pulse Width Modulation) motor controller rather than just lowering the voltage.
Shaft Mounting: The 2.0mm shaft is a standard press-fit size. When attaching a gear or propeller, support the back of the motor shaft against a solid surface while pressing the component onto the front. This prevents the internal delicate motor brushes from being pushed out of alignment.
Electrical Noise Suppression: Brushed motors generate EMI (Electromagnetic Interference) which can cause microcontrollers like Arduinos to reset. Solder a small 0.1µF ceramic capacitor across the motor terminals (+ and -) to "snub" this noise at the source.
Handling Stall Torque: Avoid stalling the motor (holding the shaft while power is applied). A stalled motor acts like a short circuit and can quickly burn out the internal windings or destroy your motor driver.
Reversing Direction: To change the direction of rotation, simply swap the Red and Black wire connections. If using an H-bridge driver (like the L293D or L298N), this can be done via software.

Package Includes

1 x 32mm Diameter DC Motor

Disclaimer: Product images are shown for illustrative purposes only. The exact color of the metal casing or the presence of pre-soldered wires may vary slightly between manufacturing batches, but all technical specifications and performance standards remain as described.

Safety Warning: Do not connect this motor directly to AC mains voltage (230V); it is designed for DC power only. Use caution when operating at 12V for long periods as the motor casing can become hot. Keep fingers and loose clothing away from the rotating shaft to avoid injury.
