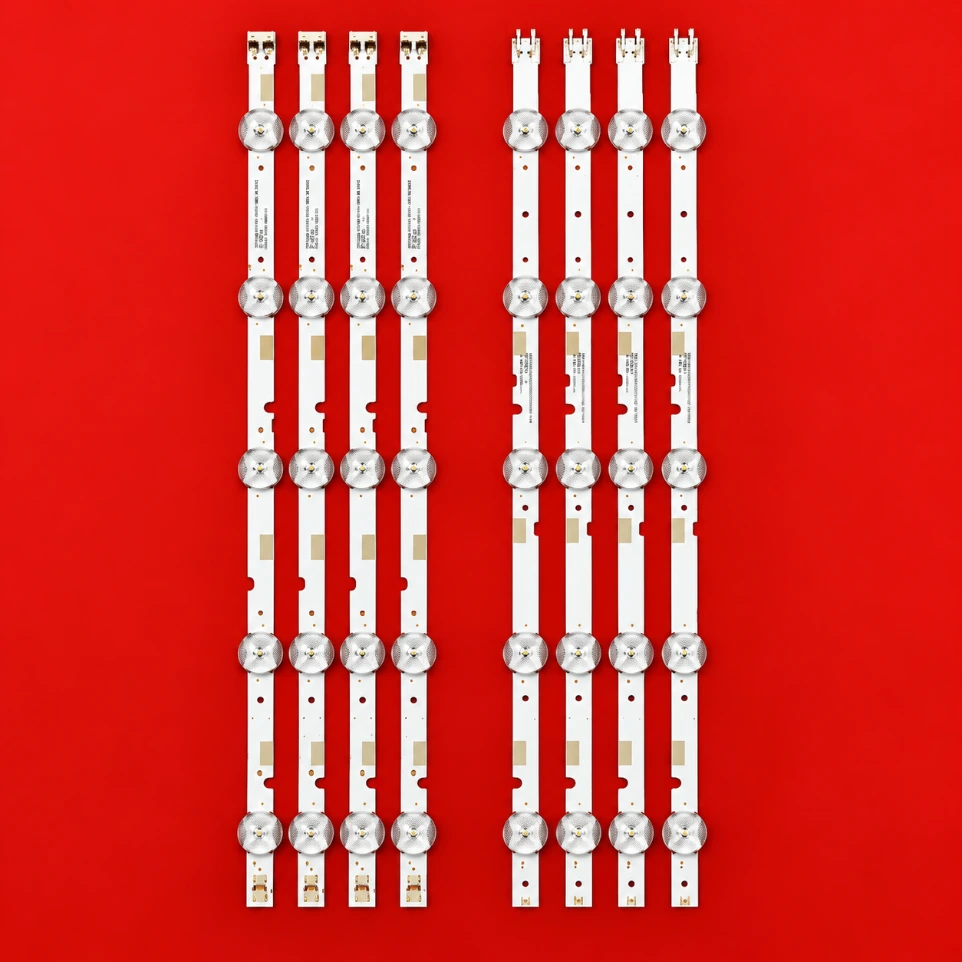

Samsung 49-Inch LED TV Backlight Strip Set – 8-Piece Array Kit (4 Pairs) with 10 LEDs per Row for UA49N5300AR and UE49M5002AK Smart TVs

Samsung 49-Inch LED TV Backlight Strip Set – 8-Piece Array Kit (4 Pairs) with 10 LEDs per Row for UA49N5300AR and UE49M5002AK Smart TVs

ParameterDetailed Specification
Compatible ModelsSamsung UA49N5300AR, UE49M5002AK
TV Screen Size49-Inch
LED Configuration10 LEDs per row (5+5 segments)
Total Strips8 Pieces (4 x L-segments + 4 x R-segments)
Substrate MaterialHigh-Thermal Conductivity Aluminum
Lens TypeOriginal Quality Circular Diffuser
                                 Price

🚚 Ships within 24 Hours
📦 Pan India Delivery
₹ 1,313.56 ₹ 1,313.56
(Tax included)

Barcode: 101001

Product Description

Restore your television’s original brightness and colour vividness with the Samsung 49-Inch LED Backlight Strip Set. Specifically engineered for the UA49N5300AR and UE49M5002AK series, this 8-piece replacement kit features a "5+5" segment configuration that combines to form 4 complete horizontal rows of 10 LEDs each. These strips are the primary illumination source for your LCD; failure in these components typically results in "sound but no picture" or uneven dark patches on the screen. At Robogears, we supply these strips on a high-grade aluminium substrate to ensure rapid heat dissipation, preventing the LEDs from overheating and providing a significantly longer service life than standard replacements.

Detailed Key Features

  • Perfect Samsung Compatibility: Direct-fit replacement for the 49-inch N and M series Samsung Smart TVs, ensuring 100% alignment with original optical sheets.

  • Aluminium Thermal Management: Built on an aluminium base that effectively draws heat away from the LED beads, preventing "blue tint" and premature burnout.

  • Complete Array Set: Includes all 4 pairs (8 segments) required to replace the entire backlight system for uniform, flicker-free display performance.

  • Precision Optical Lenses: Each LED is capped with an original-style circular lens that ensures even light distribution, eliminating "bright spots" or halo effects.

  • Segmented Interlocking Design: The 5+5 segment design allows for secure shipping and simplified installation within the TV chassis.

All Technical Details

  • Total LED Count: 40 High-intensity LEDs across the full 4-row array.

  • Substrate Type: Heat-resistant aluminium for industrial-grade durability.

  • Colour Balance: Pre-calibrated cool-white spectrum to match original Samsung display standards.

  • Electrical Bond: Features original-style connectors for a reliable, plug-and-play link to the TV's power harness.

  • Mounting Profile: Slim design that maintains the structural integrity of the internal reflective sheets.

Prototyping & Engineering Tips (Robogears Exclusive)

  • Diagnosis Tip: If your Samsung TV displays a flash of the logo and then goes dark, the backlight driver has likely detected a failed LED in the array and triggered protection mode.

  • Replacement Protocol: We strongly recommend replacing the full set of 4 pairs. Mixing new segments with aged ones can cause voltage imbalances, leading to the remaining old LEDs failing shortly after the repair.

  • Surface Preparation: Before sticking the new strips down at your Pimpri workshop, thoroughly clean the TV’s metal chassis of old adhesive. Use high-quality thermal double-sided tape to ensure maximum cooling contact.

  • Handling Safety: 49-inch LCD panels are extremely fragile and flexible. Always use screen suction cups and ensure you have a flat, lint-free surface to rest the panel on during the repair process.

Package Includes

  • 4 x Left-Segment (5-LED) Backlight Strips

  • 4 x Right-Segment (5-LED) Backlight Strips (Forms 4 complete rows of 10 LEDs each)

Image Disclaimer

Image shown is for illustrative purposes only; the actual product may vary slightly in length, lens shape, or connector position due to manufacturing batches, though all technical specifications will remain as described.

🔒
