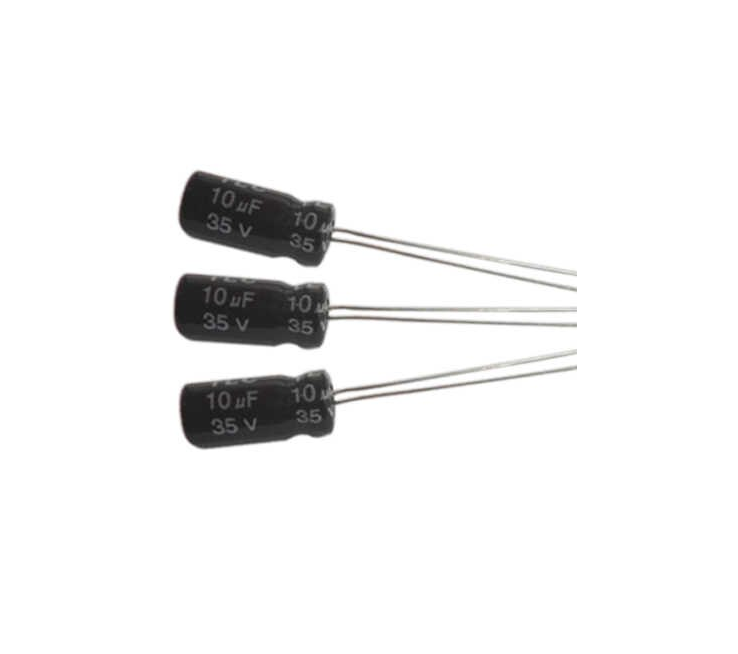

35V 10uF Electrolytic Capacitor

Technical Details:

• Product Type: Aluminium Electrolytic Capacitor
• Capacitance: 10µF
• Rated Voltage: 35V DC
• Tolerance: ±20%
• Polarity: Polarized
• Capacitor Type: Radial Electrolytic
• Manufacturer / Series: Samwha
• Part Number: WB1V106M05011BB280
• Temperature Rating: 105°C
• Body Diameter: Approx. 5mm
• Body Height: Approx. 11mm
• Mounting Type: Through Hole

• Application:

  • Power Supply Filtering
  • DC Ripple Reduction
  • Audio Amplifier Circuits
  • Signal Coupling
  • Bypass Circuits
  • Decoupling
  • Arduino Projects
  • Robotics Projects
  • DIY Electronics
  • PCB Repair

Applications:

• DC power supply filtering
• Audio amplifier circuits
• Speaker and audio projects
• Voltage regulator circuits
• Arduino and microcontroller projects
• Robotics electronics
• DIY power supplies
• PCB repair and replacement
• General electronic circuits

Prototyping and Engineering Tips from RoboGears:

• This is a polarized capacitor, so always observe the positive and negative markings during installation.
• Never apply a voltage higher than the 35V rated voltage.
• For reliable long-term operation, select a capacitor with a voltage rating comfortably above the circuit's normal operating voltage.
• When replacing a capacitor, match the capacitance, voltage rating, polarity, and physical dimensions.
• Electrolytic capacitors are commonly used for smoothing and filtering because they provide relatively high capacitance in a compact package.

Package Includes:

• 1 × 35V 10µF 105°C Radial Electrolytic Capacitor – Samwha

Disclaimer:

This is a polarized aluminium electrolytic capacitor and must be installed with the correct polarity. Exceeding the rated voltage, reversing polarity, or exposing the capacitor to unsuitable operating conditions can cause component failure. Physical appearance and sleeve markings may vary slightly between production batches while maintaining the specified electrical characteristics. The RoboGears listing identifies this component as 10µF, 35V, ±20%, 105°C, approximately 5×11mm.
