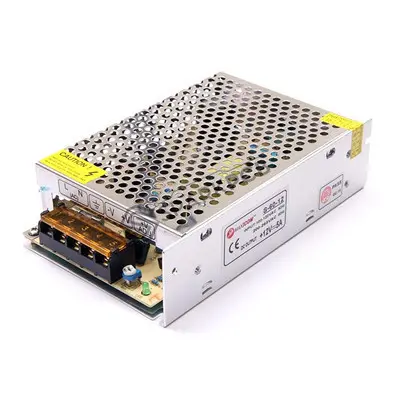

12V 5A 60W Metal SMPS - Compact DC Power Supply

Specification	Details
Input Voltage	110V / 220V AC (Switchable)
Output Voltage	12V DC (Adjustable ±10%)
Output Current	5 Amperes (Max)
Wattage	60 Watts
Shell Material	Aluminum / Perforated Steel
Protections	Short Circuit, Overload, Overvoltage

Price

🚚 Ships within 24 Hours
📦 Pan India Delivery

₹ 322.03

(Tax included)

Barcode: 8372432

Product Description

The 12V 5A DLRK SMPS is a high-efficiency Switch Mode Power Supply designed to provide a stable and regulated 12V DC output from standard AC mains. Housed in a durable, perforated metal chassis, it utilizes passive air cooling to maintain optimal operating temperatures without the noise of an internal fan. This power supply is a versatile "workhorse" for medium-power applications, commonly used to drive LED strips, CCTV camera networks, small DC motors, and hobbyist electronics projects. The integrated screw-terminal block ensures a secure and reliable connection for both input and output wiring.

Key Features

Stabilized DC Output: Delivers a constant 12V signal, shielding sensitive electronic components from AC line fluctuations and surges.
Compact Metal Housing: The industrial-grade perforated aluminum casing provides excellent EMI shielding and physical protection.
Fine-Tune Potentiometer: Features an onboard "+V ADJ" trimmer, allowing you to precisely calibrate the output voltage to compensate for wire-length resistance.
High Reliability: Engineered with high-quality filter capacitors and a robust transformer for 24/7 continuous operation in indoor environments.
Multi-Point Safety: Includes built-in safeguards that automatically shut down the unit during short circuits or current overloads to prevent fire hazards.

Technical Details

Terminal Interface: L (Live), N (Neutral), FG (Frame Ground), -V (GND), +V (Positive).
Cooling Method: Natural convection (Passive).
Design: Slim-line profile for easy mounting in control panels or project boxes.

Prototyping and Engineering Tips from Robogears

The "Selectable Input" Warning: Before connecting to power, verify the position of the 110V/220V slide switch located on the side of the unit. Connecting a unit set to 110V into a 220V Indian mains outlet will cause immediate and permanent damage to the primary circuit.
Grounding for Safety: Always connect the "FG" (Frame Ground) terminal to a proper Earth connection. This discharges any static buildup on the metal casing and is critical for protecting the user from electric shock in the event of an internal fault.
Current Headroom: For maximum longevity, follow the "80% Load Rule." If your project requires exactly 5A, we recommend upgrading to a 10A power supply. Keeping the continuous draw at 4A or less reduces thermal stress and prevents the unit from running at its thermal limit.
Motor Kickback Protection: If using this SMPS to power inductive loads like DC motors, place a large electrolytic capacitor (1000uF+) and a flyback diode across the DC output. High-torque motors can send voltage spikes back into the SMPS during sudden stops, which may trigger the power supply's protection mode.

Package Includes

1 x 12V 5A DLRK SMPS Metal Power Supply

Disclaimer: This device involves high-voltage AC connections. Installation should only be performed by individuals with basic electrical safety knowledge. Ensure the unit is placed in a ventilated area to allow for natural heat dissipation. Do not operate in high-moisture environments.
