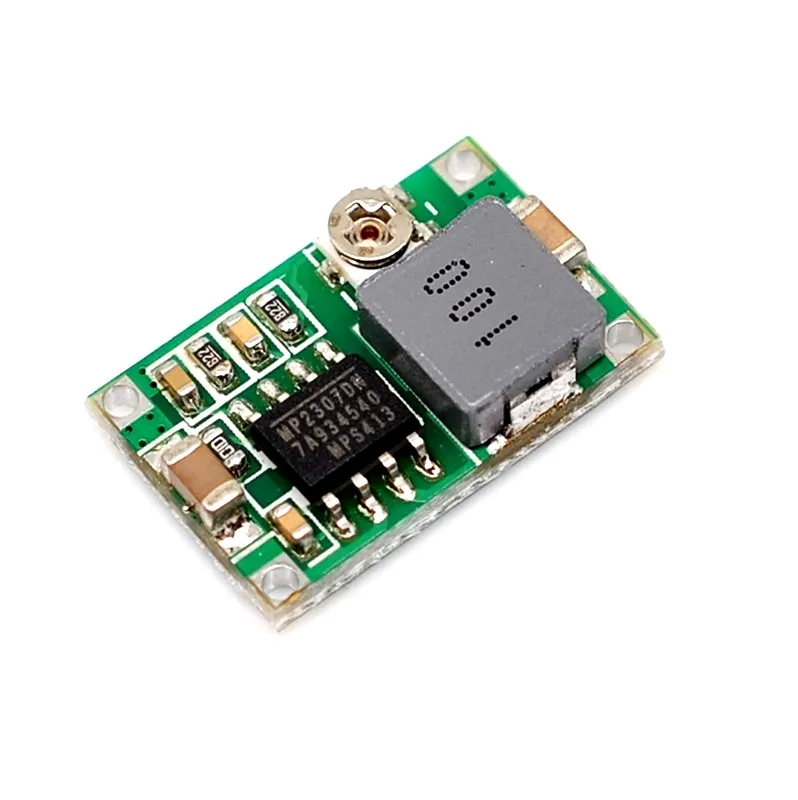

Mini-360 DC-DC Buck Converter Power Module – Ultra-Small 2A Step-Down Voltage Regulator for Drones, Aeromodelling, and Compact IoT Robotics

Mini-360 DC-DC Buck Converter Power Module – Ultra-Small 2A Step-Down Voltage Regulator for Drones, Aeromodelling, and Compact IoT Robotics

(0 review)


ParameterDetailed Specification
Model NameMini-360 (Ultra-small DC-DC step-down buck module)
Input Voltage4.75V to 23V DC
Output Voltage1.0V to 17V DC (Adjustable)
Output Current1.8A Continuous (3A Peak)
Conversion Efficiency96% (Maximum)
Switching Frequency340 kHz
Output Ripple< 30mV
Dimensions17mm x 11mm x 3.8mm
Price
₹ 38.14 ₹ 38.14
(Tax included)

Product Description

Maximize your power efficiency in the smallest footprint possible with the Mini-360 Step-Down Buck Converter. This module is widely recognized as one of the smallest adjustable voltage regulators available, making it the "go-to" choice for RC planes, FPV drones, and wearable electronics. At Robogears, we recommend the Mini-360 for projects where every gram of weight and millimeter of space matters. It utilizes high-frequency switching technology to achieve up to 96% efficiency, ensuring your batteries last longer and your components stay cooler. Whether you are stepping down a 2S-4S LiPo battery to power a 5V flight controller or a 3.3V sensor at your Pimpri workshop, the Mini-360 offers reliable regulation in a thumbnail-sized package.

Detailed Key Features

  • Integrated Power Inductor: Features a molded one-piece power inductor and synchronous rectifier chip for maximum power density.

  • Ultra-Low Profile: At only 3.8mm thick, it can be easily tucked under flight controllers or inside narrow robotic arms.

  • High Efficiency: The synchronous rectification circuit reduces heat dissipation, allowing the module to run efficiently without bulky heatsinks.

  • Fine-Tune Adjustment: An on-board miniature multi-turn potentiometer allows for precise control over the output voltage.

  • Wide Application Range: Compatible with a variety of power sources, including solar panels, lead-acid batteries, and high-cell-count LiPos.

All Technical Details

  • Pin Definition:

    • IN+ / IN-: Positive and Negative Input (Power Source).

    • OUT+ / OUT-: Regulated Positive and Negative Output (To Load).

  • Control IC: High-performance buck chip with internal compensation.

  • Load Regulation: ± 0.5% stability under varying loads.

  • Applications: Battery-powered portable devices, DIY mobile power, industrial monitoring, and aeromodelling.

Prototyping & Engineering Tips (Robogears Exclusive)

  • Pre-Flight Check: At our Pimpri facility, we always remind makers: Adjust and measure the output voltage using a multimeter BEFORE connecting it to your electronics. The potentiometer can be sensitive; a small turn can change the voltage significantly.

  • Heat Management: While the module is rated for 3A peak, it is best to stay under 1.8A for continuous use. If the module feels hot to the touch, you are nearing its thermal limit and should reduce the load or increase airflow.

  • Input-Output Gap: To ensure stable regulation, the input voltage must be at least 1.5V higher than the desired output voltage.

  • Soldering Tip: Because the pads are very small and close to the edge, use a fine-tip soldering iron and high-quality flux to avoid accidental bridges between the input and output tracks.

Package Includes

  • 1 x Mini-360 Step-Down Buck Converter Power Module

Image Disclaimer

Product images are shown for illustrative purposes only. The color of the PCB (typically Green) or the orientation of the potentiometer may vary between manufacturing batches, but the Mini-360 2A buck performance and ultra-miniature size remain as described.
