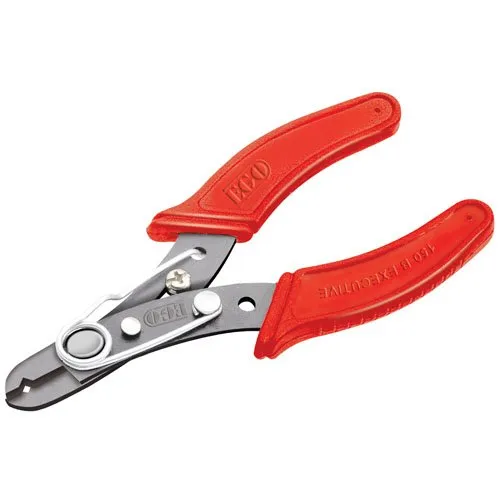

EGO Red 150B 132mm Carbon Steel Precision Wire Stripper

EGO Red 150B 132mm Carbon Steel Precision Wire Stripper

(0 review)
SpecificationDetails
MaterialForged High-Carbon Steel
Length132 mm
Handle GripErgonomic PVC Insulated
Stripping Range0.5mm to 2.5mm (approx.)
Jaw TypePrecision Ground V-Notch
Locking MechanismIntegrated Safety Catch
Price
₹ 42.37 ₹ 42.37
(Tax included)

Barcode: 146856

Product Description

The EGO Red 150B is engineered for longevity and accuracy. The carbon steel construction ensures the blades stay sharp even after repeated use on tough insulation. It features an adjustable stop-screw mechanism, allowing you to preset the stripping depth to prevent damaging the internal copper strands. The vibrant red insulated handles provide a comfortable, non-slip grip while ensuring the tool is easy to locate in a busy toolkit.

Key Features

  • Precision Stripping: The V-shaped cutting notch is ground to high tolerances, ensuring clean removal of insulation without nicking the wire.

  • Adjustable Depth: Equipped with a brass adjustment screw that allows you to set the jaw opening for consistent results across different wire gauges.

  • Spring-Loaded Action: Features a heavy-duty return spring that reduces hand fatigue during repetitive stripping tasks.

  • Safety Lock: Includes a sliding metal lock to keep the jaws closed when not in use, protecting the cutting edges and the user.

  • High-Carbon Steel: Offers superior hardness and wear resistance compared to standard stainless steel alternatives.

Technical Details

  • Weight: ~85 grams.

  • Finish: Black oxide finish for corrosion resistance.

Prototyping and Engineering Tips from Robogears

  • Set Your Stop-Screw: Before starting a project, use a scrap piece of wire to set the adjustment screw. Tighten it until it cuts only the insulation and stops just before touching the copper. This is critical for preventing "stress points" that can cause wires to break later under vibration.

  • Avoid Steel Wires: Never use this precision stripper on steel wires or springs. High-carbon steel is hard but brittle; cutting steel can chip the V-notch and ruin the tool's ability to strip soft copper cleanly.

  • Clean the Jaws: Periodically wipe the cutting notch with a small brush or cloth. Residual bits of PVC insulation can build up in the notch, leading to inaccurate cuts.

  • Wire Alignment: Always insert the wire perpendicular to the jaws. Stripping at an angle can result in uneven insulation removal and may accidentally "score" the conductor.

Package Includes

  • 1 x EGO Red 150B Executive 132mm Wire Stripper

Disclaimer

These handles are PVC-coated for grip and comfort but are not rated for high-voltage live-wire work. Always ensure the power is disconnected before working on any electrical circuit.
