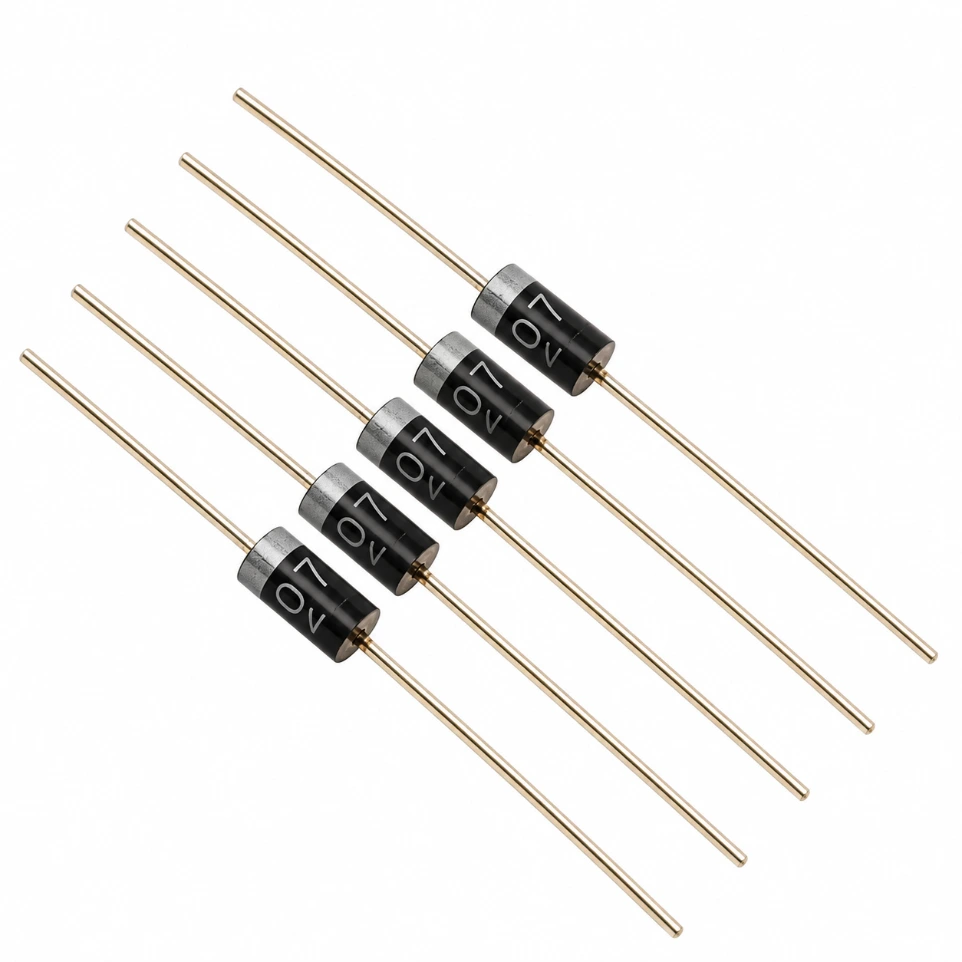

1N4007 Rectifier Diode (5 Pieces Pack)

Specification	Details
Current Rating	1.0 Ampere
Voltage Rating	1000V (PIV)
Diode Type	Standard Recovery
Surge Current	30mA (Non-repetitive)
Package Type	DO-41 (Axial)
Material	Silicon Junction

Price

🚚 Ships within 24 Hours
📦 Pan India Delivery

₹ 8.47

(Tax included)

Barcode: 5599777

Product Description

The 1N4007 Rectifier Diode is a fundamental electronic component used in virtually every AC-to-DC power conversion circuit. As the highest voltage-rated member of the 1N400x series, it can safely handle up to 1000V of peak inverse voltage, making it incredibly versatile for both low-voltage hobbyist projects and high-voltage industrial applications. Its primary function is to allow electrical current to flow in only one direction, acting as a "one-way valve" for electricity. Housed in a rugged DO-41 plastic package, these diodes are the industry standard for bridge rectifiers, battery chargers, and general-purpose power management.

Key Features

High Voltage Tolerance: Rated for 1000V, providing an massive safety margin for standard 12V, 24V, and even 230V AC rectification tasks.
1A Continuous Current: Capable of handling a steady 1 Ampere of current, sufficient for powering microcontrollers, sensors, and small DC motors.
Low Forward Voltage Drop: Minimizes power loss during conduction (typically ~0.7V to 1.1V), ensuring efficient energy transfer.
High Reliability: Engineered for long-term stability with very low reverse leakage current, protecting sensitive components from back-flow.
Universal Compatibility: Standard axial leads fit perfectly into breadboards, stripboards, and professional-grade PCBs for rapid prototyping.

Technical Details

Mounting Style: Through-hole (Axial).
Polarity: Cathode (negative side) is clearly marked by a silver/white band on the black body.
Operating Temperature: -65°C to +175°C.

Prototyping and Engineering Tips from Robogears

Building a Bridge Rectifier: To convert AC from a transformer into DC, arrange four 1N4007 diodes in a "diamond" bridge configuration. This will provide full-wave rectification for loads up to 1A.
Reverse Polarity Protection: PRO TIP: Place a 1N4007 in series with your battery input (Anode to Battery Positive). If you accidentally connect the battery backward, the diode will block the current and save your expensive Arduino or ESP32 from burning out instantly.
Flyback Diode for Relays: When driving a 5V or 12V relay with a transistor, always place a 1N4007 in parallel with the relay coil (Cathode to Positive). This "snubs" the high-voltage spike created when the relay turns off, protecting your transistor from failure.
Polarity Verification: CRITICAL: Always orient the silver band toward the "Ground" or the negative side of your DC circuit. Current flows toward the silver band. Installing it backward will result in an "open circuit" where no power reaches your device.
Soldering Caution: While durable, avoid applying a soldering iron to the leads for more than 5 seconds. Excess heat can travel up the lead and damage the internal silicon wafer. Use a pair of pliers as a "heat sink" on the lead if you are a beginner at soldering.

Package Includes

5 x 1N4007 Rectifier Diodes

Disclaimer: Ensure the total current of your circuit does not exceed 1.0A. For high-speed switching applications (like high-frequency SMPS), use a "Fast Recovery" or "Schottky" diode instead, as the 1N4007 is optimized for standard 50Hz/60Hz power frequencies. Always verify polarity with a multimeter before powering your project.
