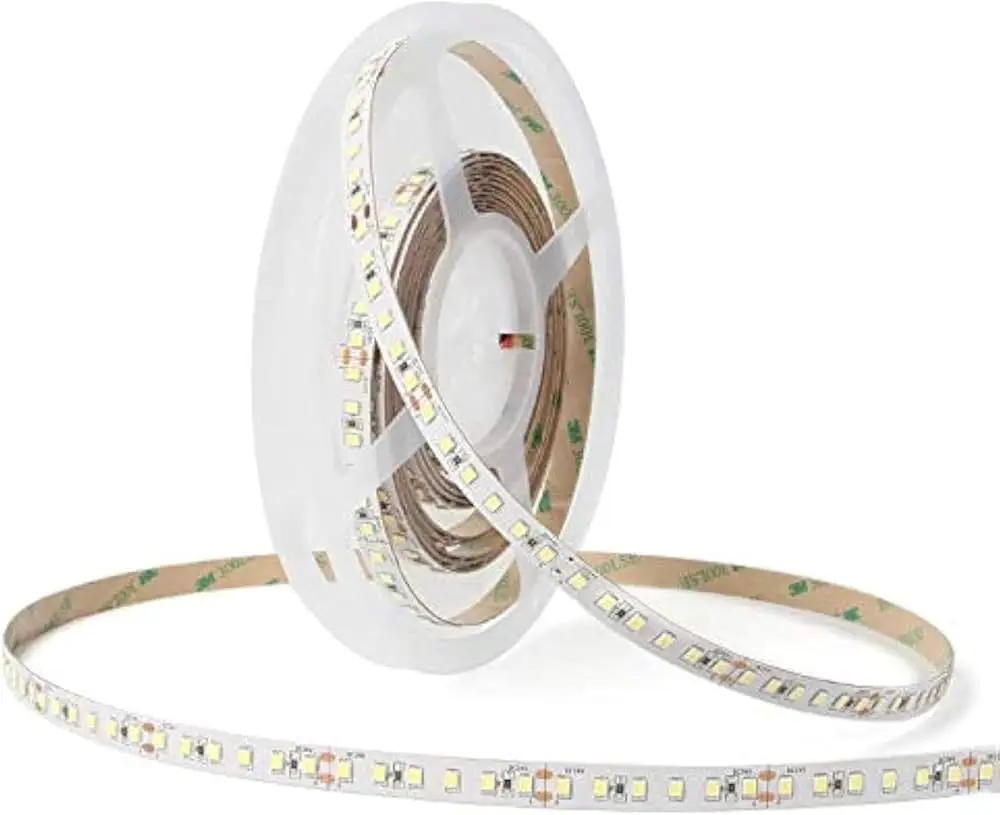

12V Warm White LED Strip Light 240 LEDs/mtr 5mm Ultra-Slim Flexible Roll 5 Meter

Technical Details:

• Product Type: Flexible LED Strip
• LED Technology: High-Efficiency SMD
• LED Density: 240 LEDs/m
• Total Strip Length: 5m
• Strip Width: 5mm
• Light Colour: Warm White
• Colour Temperature: 3000K–3500K
• Operating Voltage: 12V DC
• Power Consumption: Approx. 18W–22W/m
• Approximate 5m Power Consumption: 90W–110W
• Cutting Interval: Every 3 LEDs, approximately 1.25cm
• Viewing Angle: 120°
• Waterproof Rating: IP20
• Backing: Self-Adhesive
• Operating Temperature: -20°C to +60°C
• Power Requirement: Regulated 12V DC supply

• Suitable Applications:

  • Under-Cabinet Lighting
  • Shelf Lighting
  • Display Cabinets
  • Decorative Lighting
  • Architectural Lighting
  • Signboards
  • DIY LED Projects
  • Robotics Projects
  • Exhibition Displays
  • Model Making
  • Edge Lighting
  • Home Interior Lighting

Applications:

• Home and furniture accent lighting
• Kitchen cabinet lighting
• Display and showcase lighting
• DIY decorative lighting
• Robotics and electronics projects
• Model and prototype illumination
• Acrylic edge-lighting projects
• Exhibition and product displays
• Custom LED installations

Prototyping and Engineering Tips from RoboGears:

• Use a regulated 12V DC power supply; do not connect the strip directly to AC mains.
• A complete 5m roll can consume approximately 90–110W, so select a power supply with sufficient current capacity and some operating margin.
• For a full 5m installation, a 12V 10A supply is a suitable practical choice based on the listed power range.
• Because of the high 240 LEDs/m density, the strip generates more heat than lower-density LED strips. Mounting it to an aluminium profile or metal surface can improve heat dissipation and LED lifespan.
• Observe the + and − polarity markings before connecting the strip.
• For Arduino, ESP32 or other microcontroller projects, use a suitable logic-level MOSFET or LED controller rather than powering the strip directly from a GPIO pin.
• For long runs, consider power injection to minimize voltage drop and brightness variation.

Package Includes:

• 1 × 5-Meter Roll 12V Warm White 240 LED/m Ultra-Slim LED Strip Light, 5mm Width

Disclaimer:

This LED strip is designed for 12V DC operation only and must not be connected directly to 220V AC mains. The strip is IP20, so it is intended primarily for indoor/dry environments and is not waterproof. Actual brightness, colour temperature, power consumption and appearance may vary slightly between production batches. Use adequate heat dissipation for high-density or continuous-operation installations.
