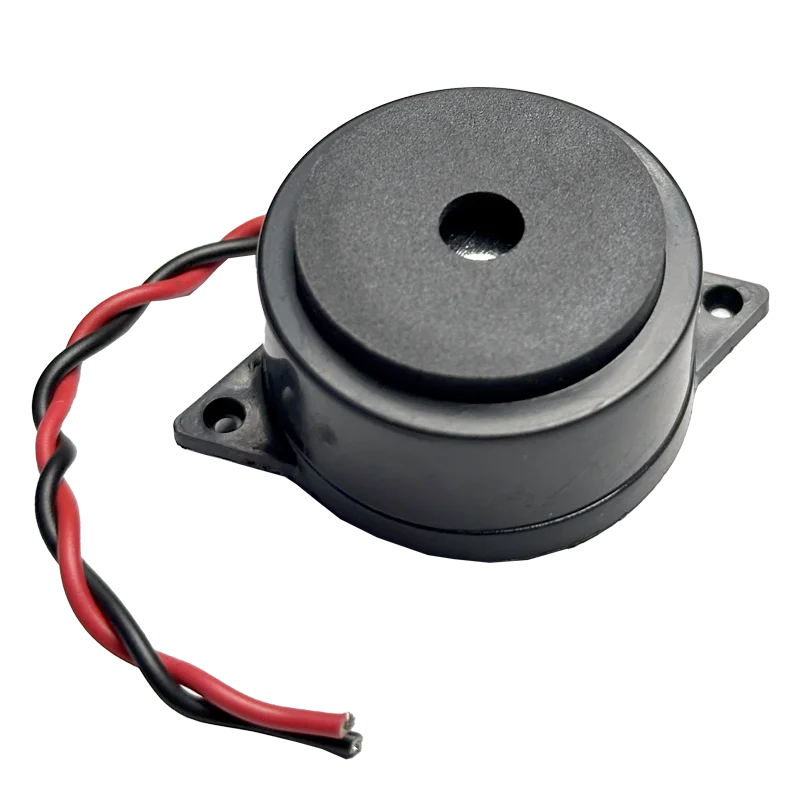

Piezo Electric Active Big Buzzer B27

Specification	Details
Operating Voltage	3V to 12V DC (Optimized for 5V-12V)
Sound Output	≥ 85dB to 95dB (at 10cm)
Current Consumption	15mA to 30mA
Oscillation Frequency	2300Hz ± 300Hz
Tone Type	Continuous Beep
Connector Type	2-Wire Leads (Red/Black)
Housing Material	ABS Plastic

Price

₹ 21.19

(Tax included)

Product Description

The 5V-12V Big Buzzer is an "active" buzzer, meaning it has a built-in oscillation circuit. You do not need to provide a complex PWM signal; simply applying a DC voltage within the specified range will trigger a continuous, piercing tone. The module is housed in a rugged SOT plastic package with integrated mounting holes (ears), allowing it to be easily screwed onto a chassis, bike frame, or project box. Its high-efficiency piezoelectric design ensures stable performance with very low current draw, preventing strain on your power supply.

Key Features

Wide Voltage Range: Seamlessly transitions between 5V (Arduino/USB) and 12V (Car Battery) without requiring additional resistors.
Loud Audible Alert: Produces a high-pitched tone (up to 95dB) that is easily heard from a distance or over machine noise.
Simple 2-Wire Interface: Features pre-soldered red (+) and black (-) wires for instant "plug-and-play" connectivity.
Mounting-Ready: The external shell includes two mounting tabs for secure installation in moving vehicles or industrial panels.
Long Operational Life: Solid-state construction with no moving mechanical parts ensures thousands of hours of reliable beeping.

Technical Details

Dimensions: Approx. 30mm - 36mm diameter.
Wire Length: Approx. 100mm.
Resonant Frequency: Specifically tuned for human ear sensitivity (approx. 2.3kHz).

Prototyping and Engineering Tips from Robogears

The Transistor Switch: While a microcontroller can provide 5V, the current draw of a large buzzer might be higher than a single GPIO pin's limit. For maximum volume and safety, use an NPN transistor (like the BC547) as a switch to drive the buzzer from your main power rail.
Polarity Matters: Because this is an active DC module, it is polarity sensitive. Connecting the red wire to Ground and the black wire to VCC will not produce sound and may damage the internal oscillator circuit over time.
Mounting for Volume: To achieve the maximum 95dB output, ensure the front hole of the buzzer is not obstructed. For even louder sound, mount the buzzer inside a hollow plastic enclosure which can act as a resonant chamber.
Automotive Use: If using this as a reverse horn on a bike or car, wire it in parallel with your reverse light circuit. The rugged ABS shell is splash-resistant, but for outdoor use, ensure the wire entry points are sealed with a dab of hot glue or silicone.

Package Includes

1 x 5V-12V Big Buzzer with Wire Leads

Disclaimer

This buzzer produces a very high-pitched sound. Avoid testing it close to your ears for extended periods. Ensure the input voltage does not exceed 15V to prevent the internal piezoelectric disc from cracking.
