Arduino Smart Irrigation Water Pump DIY Kit

Key Features

• Pre-programmed / ready programmed Arduino

• Automatic soil-moisture detection

• Automatic plant-watering functionality

• Arduino UNO SMD compatible controller

• Soil moisture sensor module

• DC mini water pump

• 5V relay-based pump switching

• 2 × 18650 Li-ion batteries included

• Water pipe included

• Battery-powered operation

• Arduino IDE compatible

• Adjustable moisture threshold through programming/calibration

• Reprogrammable for further experimentation

• Suitable for smart-agriculture demonstrations

• Ideal for STEM, school and engineering projects

• Components reusable for future Arduino projects

Technical Features

Controller

Soil Moisture Detection

Pump Control

Power

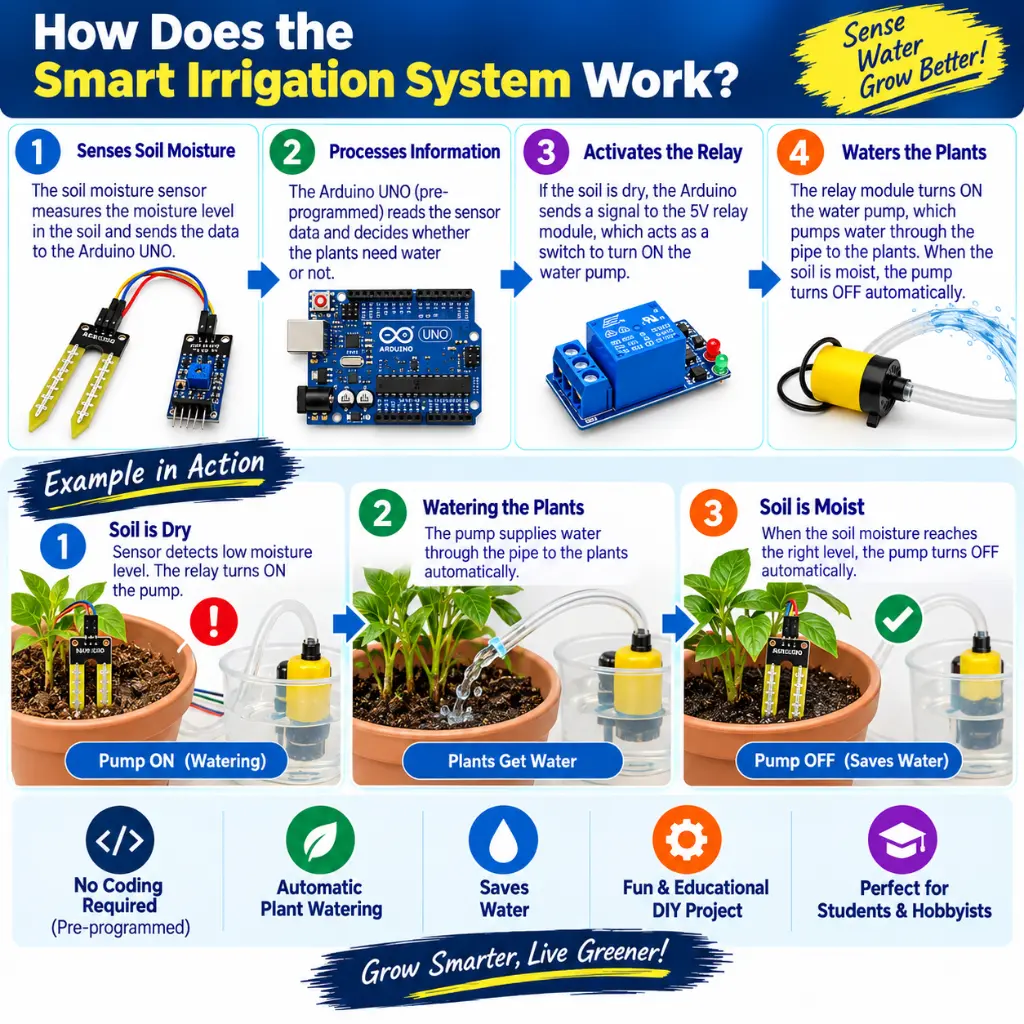

Working Principle

The system works through a simple closed-loop automation process:

1. Sense

The soil moisture sensor detects the moisture condition of the soil.

2. Process

The Arduino reads the sensor signal and compares it with the programmed threshold.

3. Decide

The Arduino determines whether watering is required.

4. Switch

The Arduino controls the relay module.

5. Irrigate

The relay switches the DC water pump, allowing water to flow through the pipe to the plant.

This allows students to understand how a real-world environmental input can automatically control an electrical output.

Compatibility

Compatible With

• Arduino UNO ecosystem

• Arduino IDE

• Soil moisture sensor modules

• 5V relay modules

• DC mini water pumps

• 18650 battery-powered project setups

• Smart agriculture projects

• Automatic plant-watering projects

• Educational automation systems

Programming Requirement

Coding is NOT required for initial operation.

The Arduino UNO compatible board supplied with the RoboGears kit is:

PRE-PROGRAMMED / READY PROGRAMMED

Students can first assemble, wire, calibrate and operate the project using the supplied program.

The Arduino can later be reprogrammed to experiment with:

• Different moisture thresholds

• Different watering behaviour

• Pump ON/OFF timing

• Serial-monitor data

• Additional sensors

• Displays and indicators

• More advanced irrigation logic

Calibration Requirement

Soil moisture readings depend on the actual:

• Soil type

• Moisture level

• Sensor condition

• Probe position

• Program threshold

The system should therefore be calibrated using the actual soil in which it will be demonstrated.

Before Purchase

This is a DIY educational smart-irrigation project, not a finished commercial irrigation controller.

The customer needs to:

Assemble → Wire → Position Sensor → Connect Water Pipe → Prepare Water Source → Power → Calibrate → Test

The Arduino is supplied pre-programmed, so coding is not required for the initial setup.

Applications

• Automatic plant watering

• Smart irrigation demonstration

• Smart farming projects

• Arduino automation learning

• Soil moisture monitoring

• Agricultural electronics projects

• STEM education

• School science exhibitions

• College mini-projects

• Engineering projects

• Relay-control experiments

• Water-pump automation

• Sensor interfacing

• Embedded-system learning

• Gardening automation prototypes

Who Is This Kit For?

Suitable for:

• School students

• College students

• Engineering students

• Arduino beginners

• Electronics hobbyists

• Agriculture-technology learners

• STEM laboratories

• Science exhibitions

• Robotics workshops

• Embedded-system learners

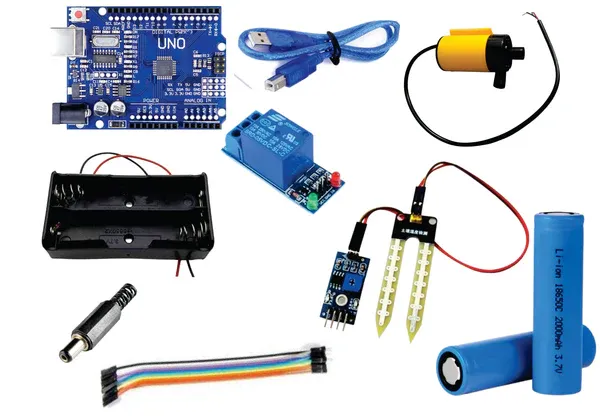

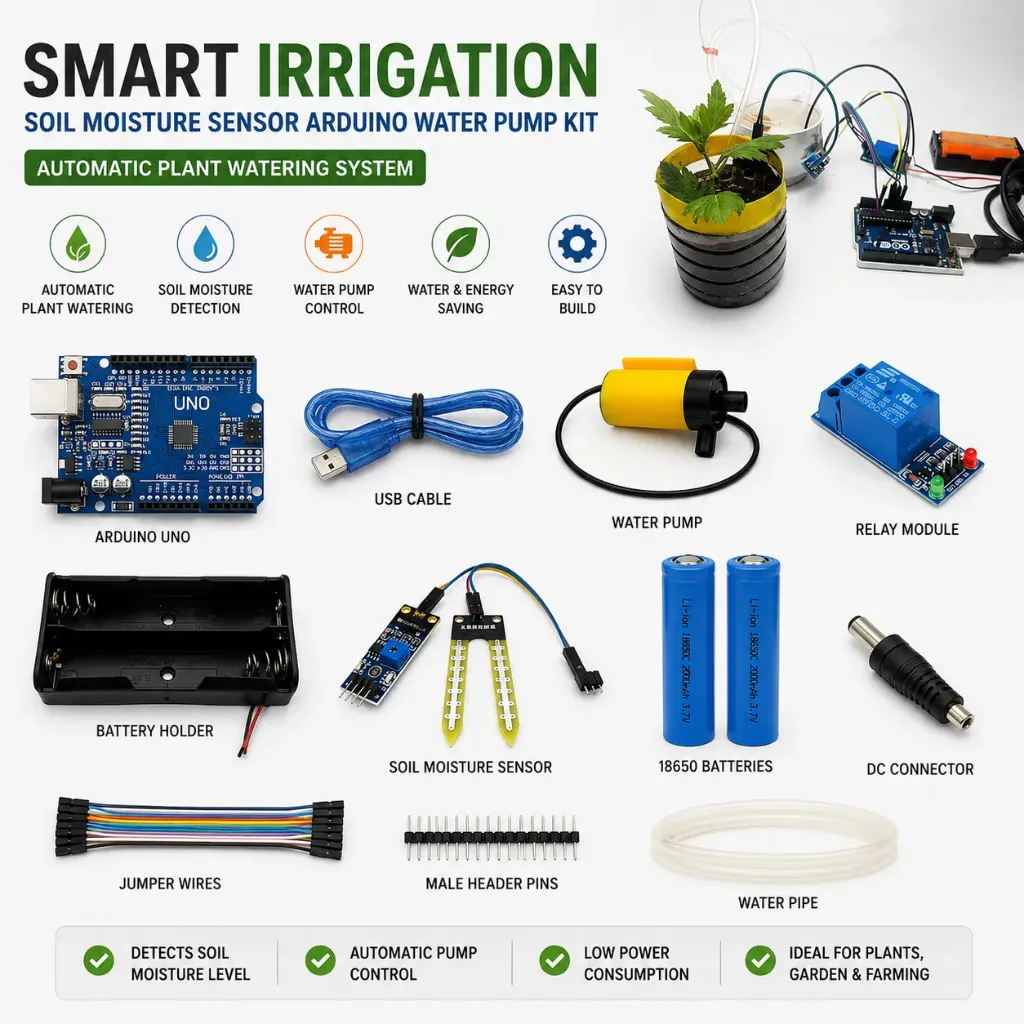

📦 What's Included

❌ What's Not Included

The current RoboGears listing specifically indicates that the following are not included:

• 18650 Battery Charger

• External / Permanent Project Enclosure

The following should also not be assumed to be supplied unless specifically stated:

• Plant

• Flower Pot

• Soil

• Water Container / Reservoir

• Laptop / Computer

• Decorative Exhibition Base

• Additional Sensors

Important Package Note

The kit includes the electronic and irrigation components required for the educational project, but the customer must provide the plant/soil and a suitable water source or reservoir for practical demonstration.

Actual component colour, PCB layout or equivalent hardware revision may vary between stock batches while maintaining the intended project functionality.

📚 Resources

Arduino Project Code

RoboGears provides the Arduino project code for the Smart Irrigation System.

The supplied Arduino is pre-programmed / ready programmed, so uploading code is not required for initial operation.

The program can later be studied or modified to understand:

• Soil moisture sensor reading

• Analog sensor input

• Moisture threshold logic

• Relay control

• Water-pump automation

• Serial-monitor output

• Automatic irrigation programming

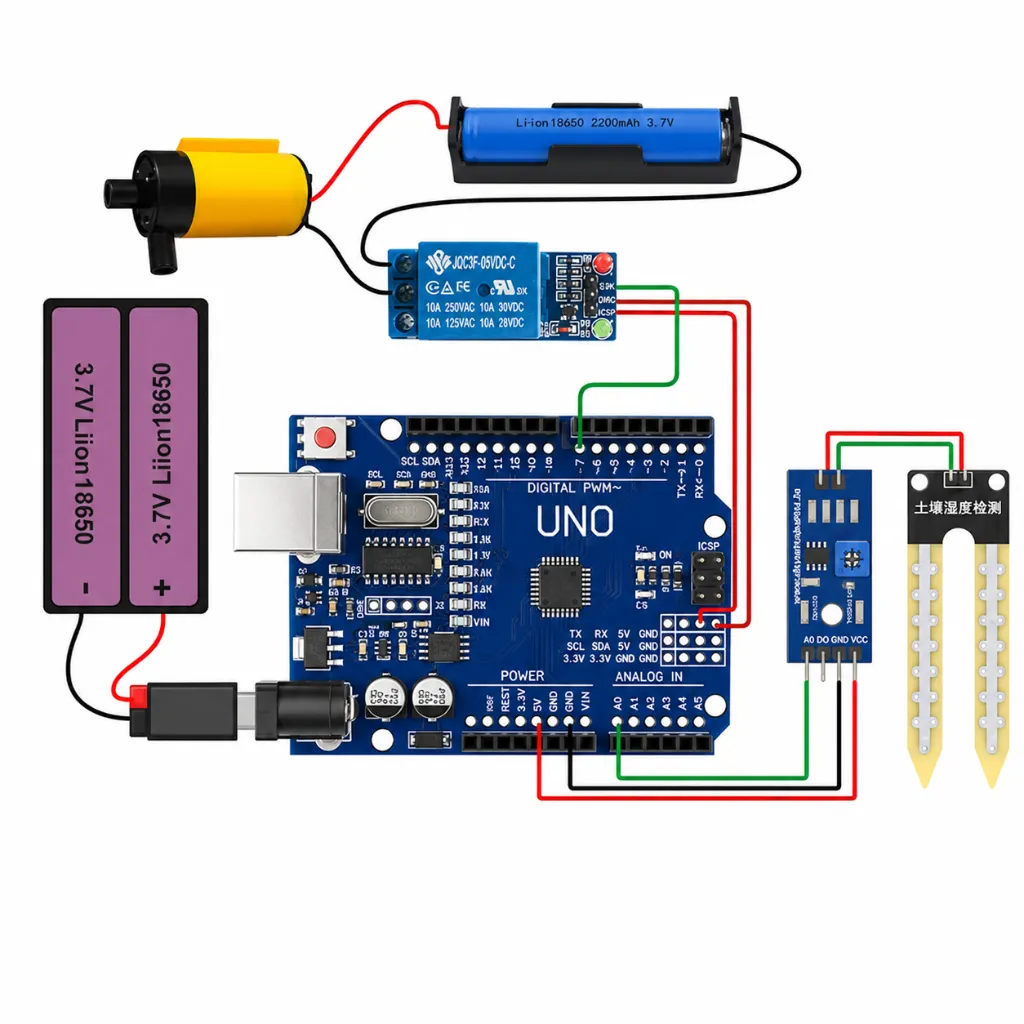

Circuit & Project Guide

RoboGears provides a dedicated Smart Irrigation System project guide covering:

• Required components

• Circuit concept

• Wiring

• Arduino code

• Working principle

• Troubleshooting

Complete Build Guide

Detailed step-by-step project build instructions are provided with the purchased project through the QR code supplied with the kit.

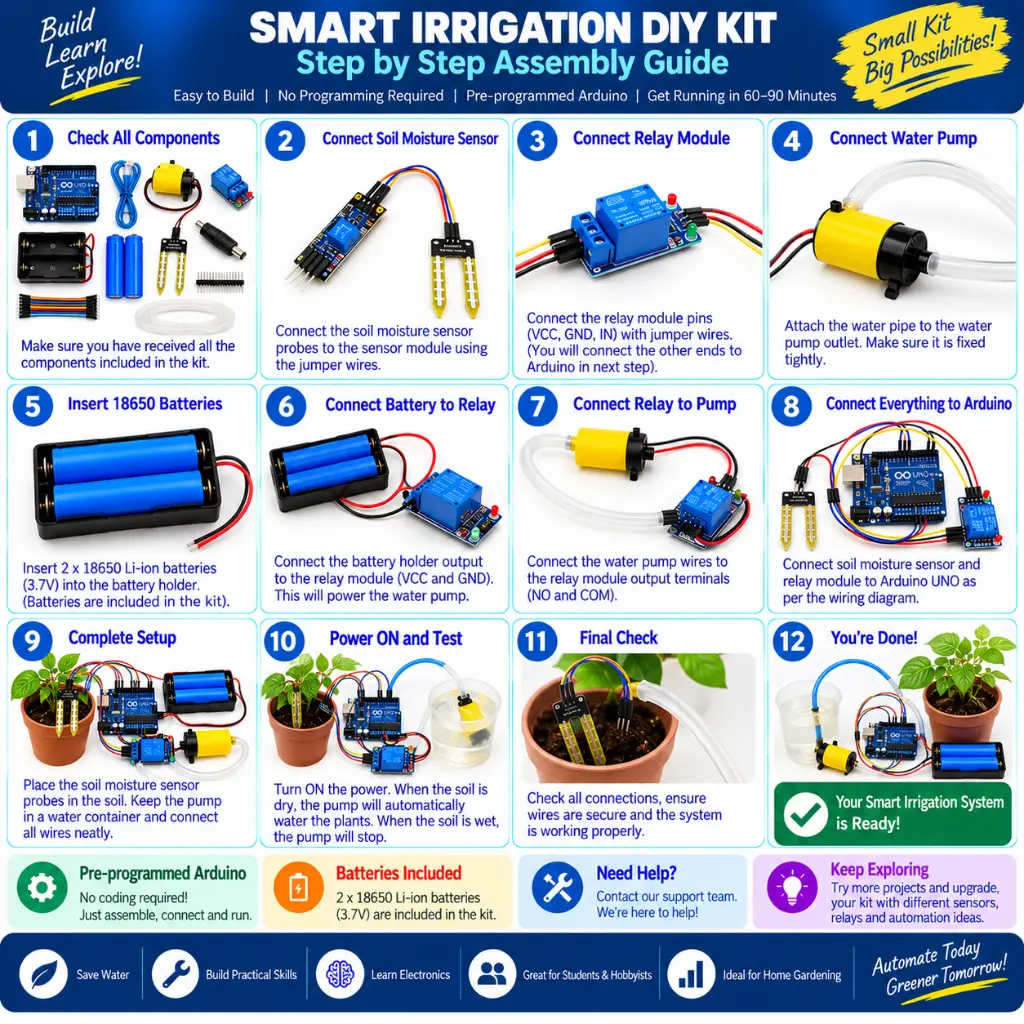

Getting Started

Step 1 — Identify the Components

Identify:

• Arduino UNO

• Soil moisture sensor

• 5V relay module

• DC mini water pump

• Water pipe

• Two 18650 batteries

• Battery holder

• USB cable

• DC connector

• Jumper wires

Step 2 — Prepare the Water System

Connect the water pipe securely to the mini water pump.

Place the pump appropriately in the water reservoir according to the pump configuration.

Keep all electronic control boards away from water.

Step 3 — Connect the Soil Moisture Sensor

Connect the sensor to the Arduino according to the RoboGears project wiring.

Insert only the appropriate sensing/probe section into the soil.

Do not bury or submerge the sensor's electronic PCB/module in wet soil or water.

Step 4 — Connect the Relay

Connect the relay-control input to the Arduino according to the supplied project wiring.

The relay acts as the switching interface between the Arduino and water pump.

Step 5 — Connect the Pump

Connect the pump through the relay/power arrangement specified by the project.

Do not attempt to power the water pump directly from an Arduino GPIO pin.

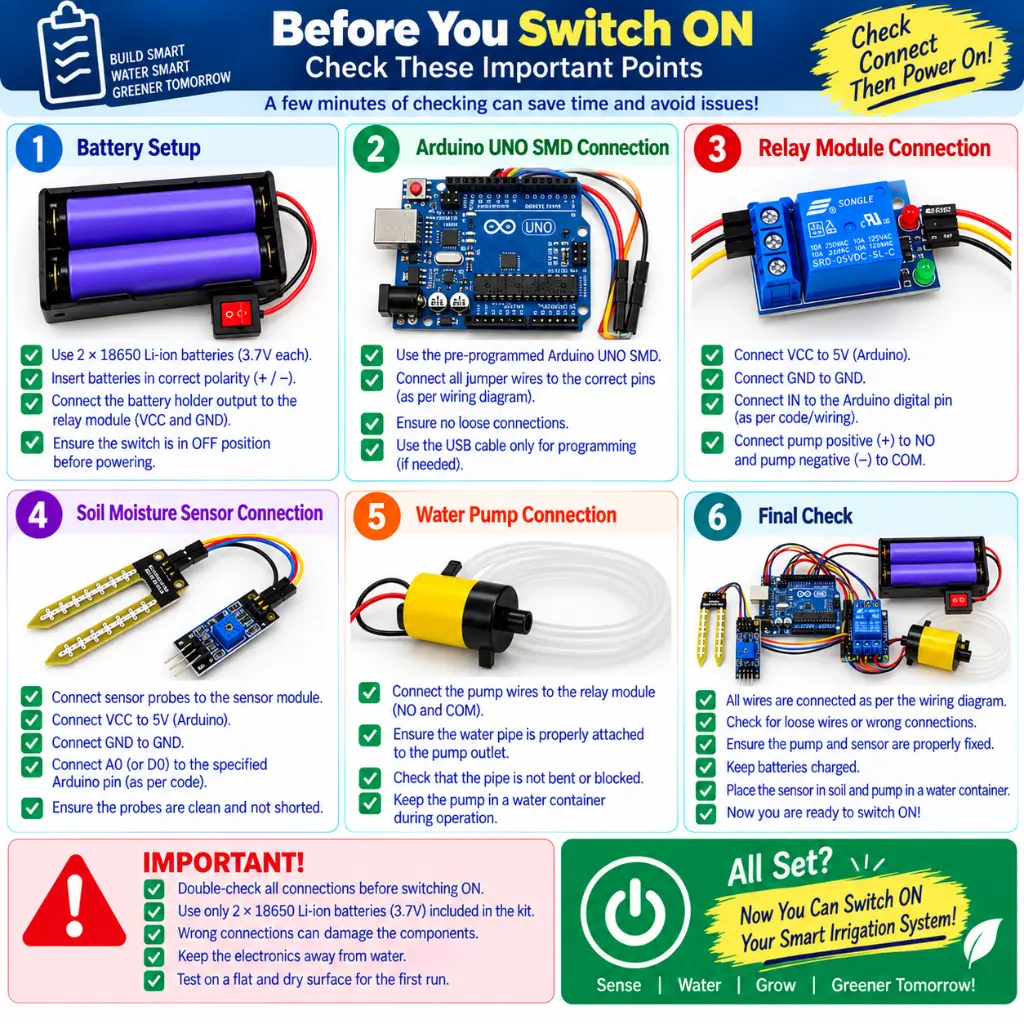

Step 6 — Check All Connections

Before applying power, verify:

• Power polarity

• Arduino connections

• Sensor wiring

• Relay wiring

• Pump wiring

• Battery connection

• Jumper-wire security

• Water/electronics separation

Step 7 — Prepare the Soil

Insert the soil moisture probe into the soil near the plant root zone.

Avoid pushing the electronic PCB into wet soil.

Step 8 — Prepare the Water Reservoir

Place the pump and pipe so that water can reach the plant safely without splashing onto the electronics.

Step 9 — Power the System

Connect the intended battery/power arrangement.

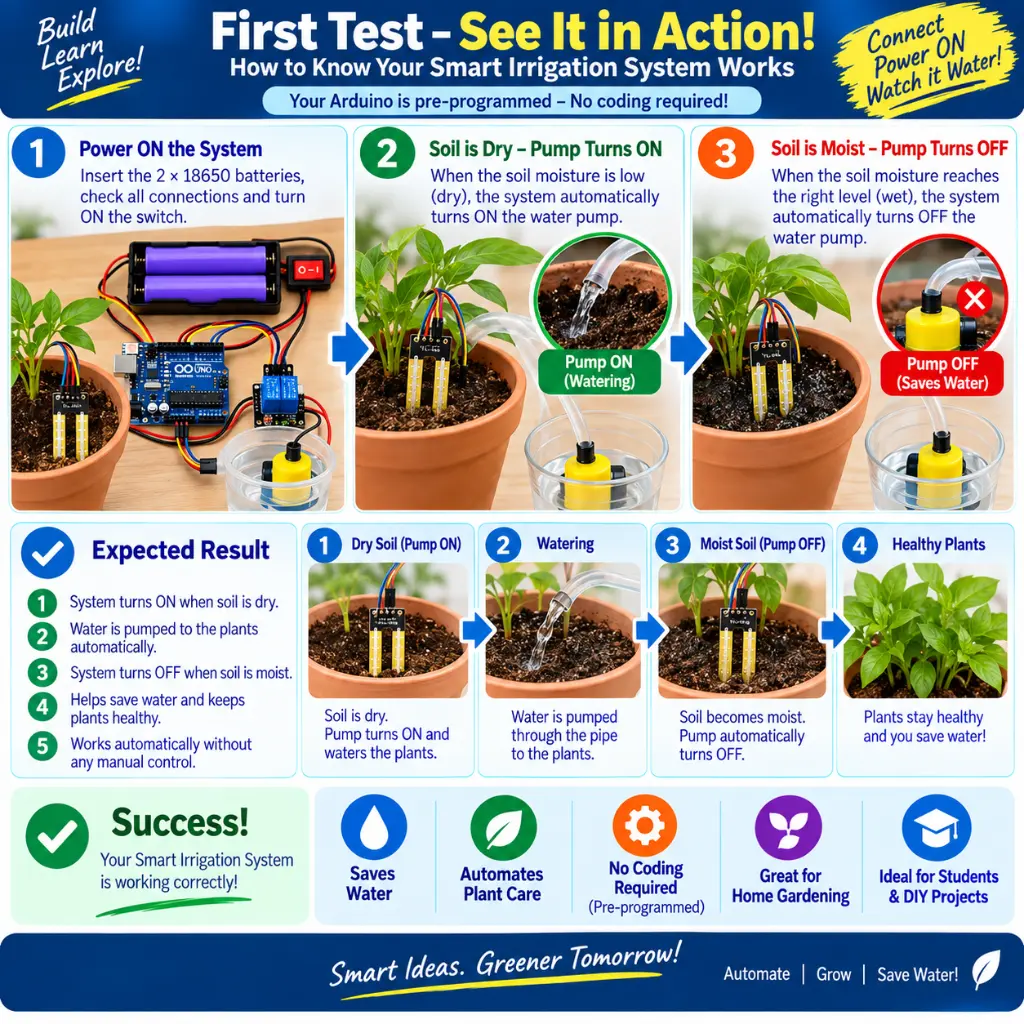

Step 10 — Test Dry & Wet Conditions

Test the sensor under:

• Relatively dry soil

• Moist soil

Observe whether the system responds correctly.

Step 11 — Calibrate

Adjust the moisture threshold according to the actual soil and desired watering behaviour.

Do not assume one threshold is suitable for every soil type.

Step 12 — Observe Automatic Operation

Once correctly configured:

Dry Soil → Arduino Detects Condition → Relay Activates → Pump Runs → Water Delivered

When the programmed moisture condition is reached:

Arduino → Relay OFF → Pump Stops

🔧 Engineering Notes from RoboGears

1. Keep the Electronics Away From Water

The Arduino, relay module, battery holder and electrical connections should remain away from wet surfaces and water splashes.

Water and exposed electronics can cause short circuits and component damage.

2. Do Not Submerge the Soil Sensor PCB

Insert the sensing/probe portion into the soil.

Avoid burying or submerging the sensor's electronic module/PCB.

3. Calibrate Using the Actual Soil

Different soils can produce different sensor readings.

Calibration should be performed using the same soil in which the project will operate.

4. Test the Sensor Before Connecting the Pump

First verify that the Arduino receives changing sensor readings between dry and wet conditions.

Then test the relay.

Finally connect and test the pump.

Use the sequence:

Sensor → Arduino → Relay → Pump

This makes troubleshooting significantly easier.

5. Never Drive the Pump Directly From an Arduino GPIO

The Arduino should control the pump through the supplied relay/switching arrangement.

The GPIO pin is a control signal — it is not intended to directly supply the pump's operating current.

6. Use Clean Water

Clean water helps reduce the possibility of clogging the small pump or water pipe during repeated demonstrations.

7. Secure the Water Pipe

Make sure the pipe is firmly attached before powering the pump.

A loose pipe can spray water onto the Arduino, relay or battery connections.

8. Test the Pump Before Plant Installation

Test:

• Pump operation

• Water flow

• Pipe connection

• Relay switching

before positioning the system near the final plant.

9. Don't Over-Water During Testing

Use a small test container or controlled quantity of water while calibrating the project.

Repeated testing can otherwise saturate the soil and make further calibration difficult.

10. Establish a Baseline Before Changing the Code

First confirm that the original pre-programmed project works correctly.

Then experiment with:

• Moisture thresholds

• Pump timing

• Sensor sampling

• Serial monitoring

• Additional indicators

⚠️ Common Troubleshooting

Water Pump Does Not Start

Check:

• Pump power

• Relay connection

• Pump wiring

• Battery condition

• Arduino relay-control signal

Pump Stays ON Continuously

Check:

• Soil moisture sensor reading

• Sensor wiring

• Moisture threshold

• Sensor calibration

• Relay logic

Sensor Gives Unusual Readings

Check:

• Sensor connections

• Probe placement

• Soil condition

• Moisture threshold

• Loose jumper wires

Recalibrate using the actual soil.

Arduino Resets When the Pump Starts

This may indicate a power-supply or wiring issue.

Check the power arrangement and make sure the pump and Arduino are powered appropriately for the project.

Relay Clicks but Pump Does Not Run

Check:

• Pump wiring

• Pump power source

• Relay output connections

• Battery condition

• Pump itself

Pump Works but No Water Comes Out

Check:

• Water level

• Pipe connection

• Pipe blockage

• Pump placement

• Pump inlet

Engineering Principle

A reliable automatic irrigation system depends on the complete control chain:

Soil Condition → Sensor → Arduino → Threshold Logic → Relay → Pump → Water Flow

If the system behaves incorrectly, troubleshoot this chain one stage at a time.

FAQ

1. What does this project do?

The project automatically monitors the soil moisture condition and controls a water pump according to the programmed moisture threshold.

It demonstrates an automatic plant-watering / smart irrigation system.

2. Is the Arduino included?

Yes.

The kit includes:

1 × Arduino UNO SMD Compatible Board

3. Is the Arduino pre-programmed?

Yes.

The Arduino supplied with the RoboGears kit is pre-programmed / ready programmed, so coding is not required for initial operation.

4. Which sensor is used?

The kit uses a soil moisture sensor module to detect the moisture condition of the soil.

5. Is the water pump included?

Yes.

The kit includes:

1 × DC Mini Water Pump

6. Is the relay included?

Yes.

The package includes:

1 × 5V Relay Module

The relay acts as the switching interface used by the Arduino to control the water pump.

7. Are batteries included?

Yes.

The current kit includes:

2 × 18650 Li-ion Batteries

and

1 × Battery Holder

8. Is an 18650 battery charger included?

No.

The current RoboGears listing specifically states that the battery charger is not included.

9. Is the water pipe included?

Yes.

The current package includes 1 × Water Pipe for the irrigation project.

10. Does the pump connect directly to the Arduino?

The pump should be operated through the appropriate switching/power circuit using the supplied relay module.

Do not attempt to power a DC pump directly from an Arduino GPIO pin.

11. Do I need coding knowledge?

No coding is required for initial operation when using the supplied pre-programmed Arduino.

Arduino programming becomes useful if you want to modify the moisture threshold or change the project's behaviour.

12. Does the moisture threshold need calibration?

Yes.

Different soil conditions can produce different sensor readings.

The threshold should be tested and calibrated according to the soil and sensor used in the project.

13. Can I use this for a real plant?

Yes, it can demonstrate automatic watering with a real plant, provided the project is assembled and calibrated correctly and the electronics are protected from water.

However, this remains an educational DIY/prototyping system, not a commercial agricultural irrigation controller.

14. Can I change the Arduino program?

Yes.

The Arduino is compatible with the Arduino IDE and can be reprogrammed for further experimentation.

15. Is assembly required?

Yes.

This is a DIY kit. Mechanical setup, wiring, water-pipe connection, sensor placement, calibration and testing are required.

16. Is this an IoT project?

The standard kit demonstrates automatic Arduino-based irrigation.

The current package does not list a Wi-Fi, Bluetooth, GSM or other network-communication module. Therefore, remote internet monitoring/control should not be advertised as a standard included feature.

Additional communication hardware and programming can be added separately for advanced IoT experimentation.

Important Note

This kit is intended for educational, DIY, STEM and prototyping applications.

Keep the Arduino, relay, batteries and electrical connections away from water.

The supplied Arduino is pre-programmed / ready programmed, so coding is not required for initial operation. Assembly, wiring, soil-sensor calibration and testing are still required.

Actual component colour, PCB revision or equivalent hardware appearance may vary depending on available stock while maintaining the intended project functionality.
