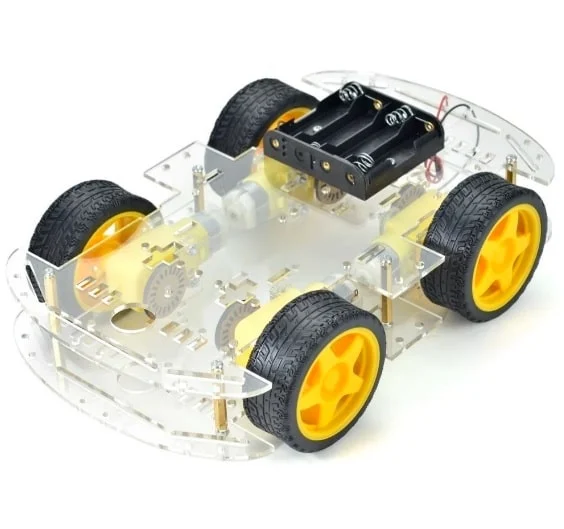

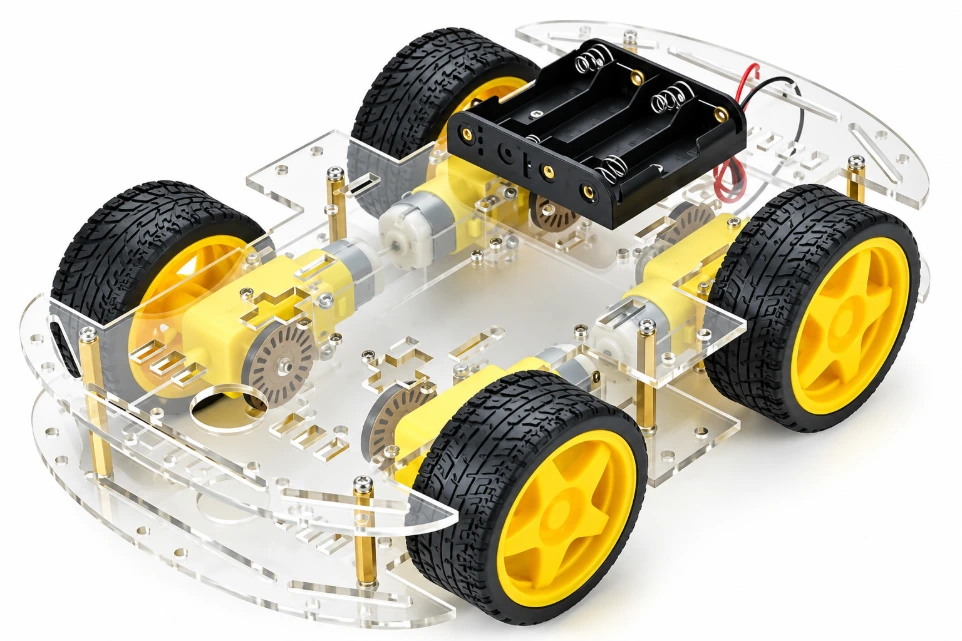

A longer version of 4WD Double Layer Smart Car Chassis Kit

A longer version of 4WD Double Layer Smart Car Chassis Kit

(0 review)
ComponentSpecification
Chassis MaterialTransparent Acrylic (Laser Cut)
Drive System4-Wheel Drive (4WD)
LayersDouble-Layer Design
Motor Compatibility4 x BO Motors (Yellow)
Chassis LengthExtended "Longer" Version
Mounting HolesPre-drilled for Arduino, Sensors, and Drivers
Price
₹ 576.27 ₹ 576.27
(Tax included)

Product Description The A Longer Version of 4WD Double-Layer Smart Car Chassis Kit is a versatile and spacious robotic platform designed for complex DIY builds. Featuring an extended double-layer acrylic frame, it provides double the mounting surface area compared to single-layer kits. This allows you to separate your high-power components (like motors and batteries) from sensitive electronics (like microcontrollers and sensors), reducing electrical noise and improving organization.

Key Features

  • Extended Surface Area: The "longer" version provides extra room for additional sensors, robotic arms, or larger battery packs.

  • Double-Layer Structure: Offers a modular approach to building, allowing for clean cable management and isolated component mounting.

  • High-Quality Acrylic: Made from durable, transparent acrylic that is easy to modify and provides a clear view of your internal wiring.

  • Universal Compatibility: Pre-drilled holes align perfectly with Arduino Uno, Mega, and Raspberry Pi, as well as standard L298N motor drivers.

  • All-Terrain Potential: The 4WD configuration ensures better traction and stability on various indoor surfaces compared to 2WD models.

Technical Details

  • Mechanical Integrity: Uses copper pillars to securely separate the two acrylic layers, providing a rigid and stable frame.

  • Motor Mounting: Includes specialized brackets designed specifically for standard yellow BO (Battery Operated) motors.

  • Speed Encoder Disks: Comes with encoder disks that can be used with speed sensors to track RPM and distance traveled.

Prototyping and Engineering Tips from Robogears

  • Weight Balance: Place your heaviest component, usually the battery pack, on the lower layer in the center. This lowers the center of gravity and prevents the car from tipping during rapid acceleration.

  • Acrylic Maintenance: The acrylic comes with a protective brown paper film. Be sure to peel this off before assembly to reveal the crystal-clear finish.

  • Component Separation: We recommend mounting the motor driver (L298N) on the bottom layer near the motors and the microcontroller (Arduino) on the top layer to keep the signal wires away from high-current power lines.

  • Screw Tightness: Avoid over-tightening the screws on the acrylic plates, as excessive pressure can cause the material to crack over time. Use small rubber washers if you need extra grip.

Package Includes

  • 2 x Extended Acrylic Chassis Plates (Double Layer)

  • 4 x BO Motors with Matching Wheels

  • 4 x Speed Encoder Disks

  • 1 x Set of Copper Pillars & Assembly Screws

  • 1 x Battery Box (usually 4 x AA)

Disclaimer Images are for reference; minor hole pattern changes may occur. ELECTRONICS NOT INCLUDED: This is a mechanical chassis kit; microcontrollers and drivers must be purchased separately
