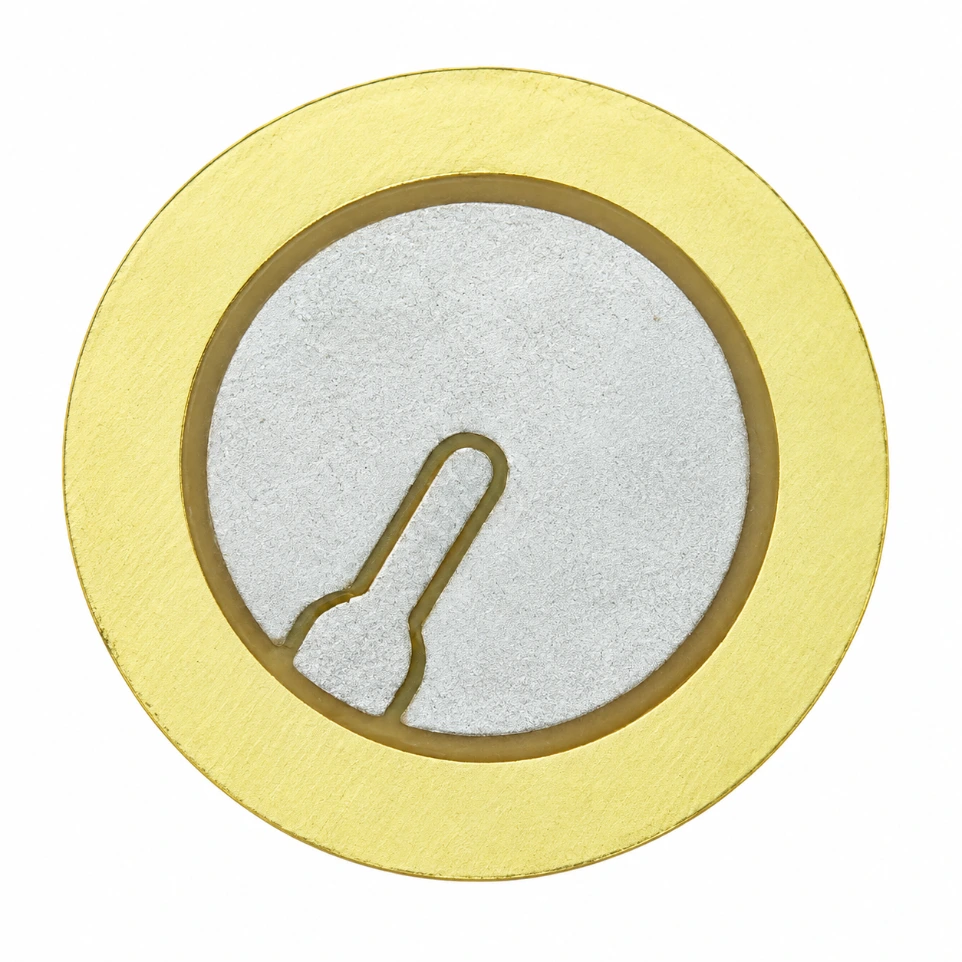

27mm Piezoelectric Ceramic Disc Transducer

Specification	Details
Diameter	27 mm
Resonant Frequency	4.6 kHz ± 0.5 kHz
Resonant Resistance	300 Ω Max
Capacitance	20,000 pF ± 30% (at 1 kHz)
Plate Material	Brass or Stainless Steel
Operating Voltage	1V to 30V Vp-p
Thickness	~0.1mm to 0.3mm

Price

🚚 Ships within 24 Hours
📦 Pan India Delivery

₹ 12.71

(Tax included)

Barcode: 32791146

Product Description

The 27mm Piezo Plate is engineered for versatility and high-fidelity vibration sensing. When an alternating voltage is applied, the ceramic element expands and contracts, causing the metal plate to vibrate and produce sound (actuator mode). Conversely, when the plate is physically tapped or vibrated, it generates a measurable voltage (sensor mode). Its ultra-thin profile and lightweight construction allow it to be easily integrated into flat surfaces, musical instrument bodies, or compact alarm housings without adding significant bulk.

Key Features

Dual-Mode Operation: Functions effectively as both a sound emitter (buzzer) and a vibration/knock sensor.
Wide Frequency Response: Optimized for a resonant frequency around 4.6 kHz, making it perfect for clear, high-pitched alerts.
Low Power Consumption: Since it is a capacitive load, it draws minimal current, making it ideal for battery-powered IoT devices.
Easy Mounting: The flat metal substrate can be glued or taped to various surfaces for immediate vibration sensing.
High Sensitivity: Capable of detecting even minute mechanical vibrations, suitable for seismic or acoustic experiments.

Technical Details

Construction: Lead Zirconate Titanate (PZT) ceramic on a conductive metal base.
Solderability: Features a silver-coated ceramic surface for direct wire attachment (requires careful soldering).
Durability: Resistant to moisture and environmental changes when properly sealed.

Prototyping and Engineering Tips from Robogears

Soldering Caution: The silver layer on the white ceramic part is very thin. Use a low-temperature soldering iron and be extremely quick. If you hold the iron for more than 1–2 seconds, the silver coating will peel off, rendering the plate useless.
Voltage Spikes: When used as a knock sensor, a hard tap can generate voltage spikes exceeding 50V. Always use a 1M Ohm resistor in parallel and a 5.1V Zener diode to clamp the output before connecting it to a sensitive microcontroller pin (like Arduino's Analog Input).
Acoustic Coupling: To get the loudest sound out of this plate when using it as a speaker, mount it over a hollow plastic cavity (resonant chamber). A piezo plate vibrating in open air will sound very thin and quiet.
Glue Selection: For instrument pickups, use a thin layer of double-sided tape or a drop of cyanoacrylate (Super Glue). Avoid thick rubbery glues, as they act as a dampener and will kill the high-frequency sensitivity of the sensor.

Package Includes

1 x Piezoelectric Plate 27mm

Disclaimer

This component is fragile. Avoid bending or dropping the plate, as cracks in the ceramic layer will significantly degrade its performance or cause it to stop functioning entirely.

🔒
