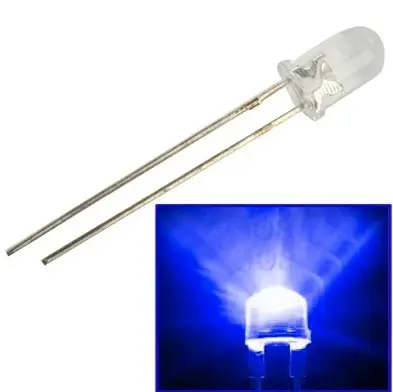

5mm DIP LED Blue (Pack of 5)

5mm DIP LED Blue (Pack of 5)

(0 review)
ComponentSpecification
LED TypeStandard DIP (Through-Hole)
Diameter5mm
Emitting ColorBrilliant Blue
Lens AppearanceWater Clear (Transparent)
Forward Voltage (Vf)3.0V – 3.4V
Forward Current (If)20mA (Standard) / 30mA (Max)
Luminous Intensity5000 – 7000 mcd
Viewing Angle20° – 30° (Narrow Beam)
Price
₹ 8.47 ₹ 8.47
(Tax included)

Product Description The 5mm Water Clear Blue LED is engineered for projects that demand a sharp, high-intensity point of light. Unlike diffused LEDs that glow softly, this "water-clear" version features a completely transparent lens that allows the blue light to pass through with maximum brilliance and zero scattering. When off, the LED is colorless and stealthy; when powered on, it emits a powerful, focused beam of deep blue light. This makes it the top choice for decorative accent lighting, high-visibility beacons, and sci-fi robotics where a "spotlight" effect is required.

Key Features

  • Crystal Clear Transparency: Transparent housing provides a premium, modern look when the LED is inactive.

  • Focused High-Intensity Beam: Narrow 20°–30° viewing angle concentrates light into a bright spot, perfect for "eyes" or spotlighting.

  • Deep Royal Blue: Produces a high-energy blue hue (approx. 465nm) for a sleek, high-tech aesthetic.

  • Universal 5mm Size: Standard through-hole leads fit perfectly into breadboards, PCBs, and 5mm mounting clips.

  • Industrial Durability: Rugged epoxy construction ensures long-term clarity and operational life.

Technical Details

  • Anode (+): Longer Lead

  • Cathode (-): Shorter Lead (Flat notch on the LED base)

  • Wavelength: 460nm – 470nm

  • Operating Temperature: -25°C to +85°C

  • Soldering Temp: 260°C for less than 5 seconds

Prototyping and Engineering Tips from Robogears

  • The "Spotlight" Advantage: Because the lens is clear, this LED acts like a tiny flashlight. If you need a wide-angle status light, use our diffused version; if you want a sharp, bright beam that travels further, this is the one for you.

  • Voltage Logic: Blue LEDs require a higher forward voltage (3.0V – 3.4V) than red or yellow LEDs. When using an Arduino (5V), we recommend a 150Ω to 220Ω resistor. Use 150Ω for maximum brightness or 220Ω for better power efficiency and cooler operation.

  • 3.7V Battery Matching: These LEDs are a perfect pair for 3.7V Lithium-Ion batteries. Since the battery can reach 4.2V when full, use a 47Ω resistor to protect the internal chip while maintaining peak brightness.

  • Edge-Lighting Trick: These clear LEDs are amazing for "Edge-Lighting" acrylic. If you shine this LED into the edge of a clear plastic sheet, any scratches or etched logos on the surface will glow brilliantly in blue!

Package Includes

  • 5 x 5mm Water Clear Blue DIP LEDs

Disclaimer Images are for reference; actual blue saturation may vary slightly by production batch. DO NOT connect directly to a power source without a current-limiting resistor, as this will lead to immediate failure of the LED.
