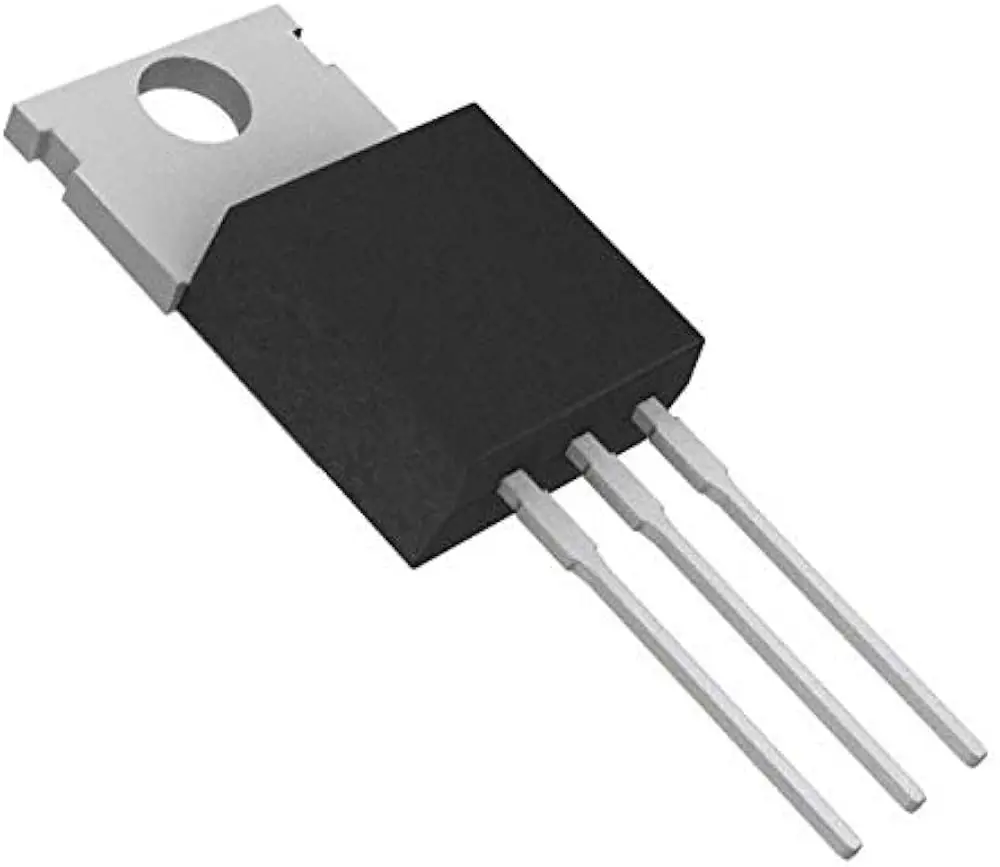

7905 Voltage Regulator IC

Specification	Details
Output Voltage	-5V DC
Output Current	Up to 1.5A
Input Voltage (Max)	-35V DC
Dropout Voltage	2.0V (Typical)
Package Type	TO-220
Protection Features	Thermal Overload & Short Circuit Protection

Price

🚚 Ships within 24 Hours
📦 Pan India Delivery

₹ 12.71

(Tax included)

Barcode: 3296916

Product Description

The 7905 Voltage Regulator IC is a high-quality linear regulator designed to provide a stable, fixed negative 5V output. While the more common 7805 provides positive voltage, the 7905 is essential for circuits requiring a "Dual Rail" power supply (both positive and negative voltages relative to ground). Housed in a standard TO-220 package, it can deliver up to 1.5A of current when properly cooled. This IC is a staple in high-fidelity audio equipment, operational amplifier (Op-Amp) circuits, and specialized industrial controllers where a negative reference or bias voltage is mandatory for precision signal processing.

Key Features

Fixed Negative Output: Provides a precise -5V DC output, making it the perfect partner for 7805-based positive rails.
Internal Current Limiting: Built-in safeguards prevent the IC from burning out in the event of an output short circuit.
Thermal Shutdown: Automatically reduces output if the internal temperature exceeds safe limits, protecting the silicon junction.
High Ripple Rejection: Filters out AC noise from the input supply, ensuring a clean DC signal for sensitive analog components.
Industry Standard Pinout: Compatible with all standard TO-220 footprints found on PCBs and prototyping breadboards.

Technical Details

Operating Temperature: 0°C to +125°C.
Storage Temperature: -65°C to +150°C.
Pin Configuration: 1: Ground, 2: Input, 3: Output (Note: This differs from the 78xx series).

Prototyping and Engineering Tips from Robogears

Pinout Difference Warning: CRITICAL: The pinout of the 7905 is NOT the same as the 7805. For a 7905, the pins are: Pin 1 = Ground, Pin 2 = Input, Pin 3 = Output. Connecting it like a 7805 (where Pin 1 is Input) will result in no output or potential damage to the IC.
Input Voltage Polarity: Remember that the input voltage must be more negative than the output. To get -5V out, you should provide an input between -7V and -25V DC.
Capacitor Selection: For stable operation, always place a 2.2µF Tantalum or 10µF Electrolytic capacitor on the output pin and a 0.33µF or 1µF capacitor on the input pin. These capacitors must be rated for at least 16V or 25V and placed as close to the IC pins as possible.
Heatsink Necessity: If you are dropping a large voltage (e.g., from -15V down to -5V) at high current, the IC will generate significant heat. Use a TO-220 Aluminum Heatsink and thermal paste. Without a heatsink, the internal thermal protection will kick in and shut down the output.
Common Grounding: In a dual-supply setup (+5V and -5V), ensure that the Ground (GND) pins of both the 7805 and 7905 are tied to the same common ground point in your circuit to maintain a consistent reference.

Package Includes

1 x 7905 Negative 5V Voltage Regulator IC (TO-220)

Disclaimer: Product images are shown for illustrative purposes only. The exact branding placement on the metal tab or the finish of the plastic housing may vary slightly between manufacturing batches, but all technical specifications and performance standards remain as described.

Safety Warning: Ensure correct polarity of input voltage; reversed negative input can destroy the IC. Always verify the pinout with a multimeter before powering up a new circuit. Do not exceed the 1.5A current limit for extended periods without active cooling.
