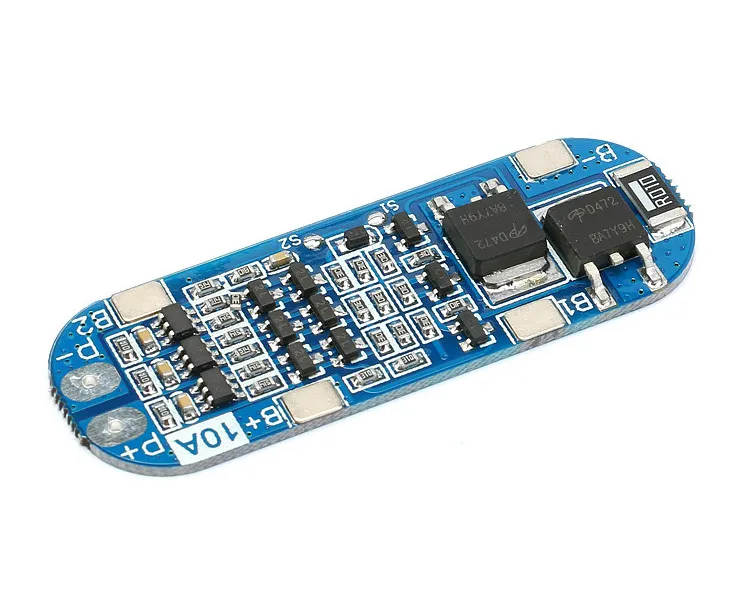

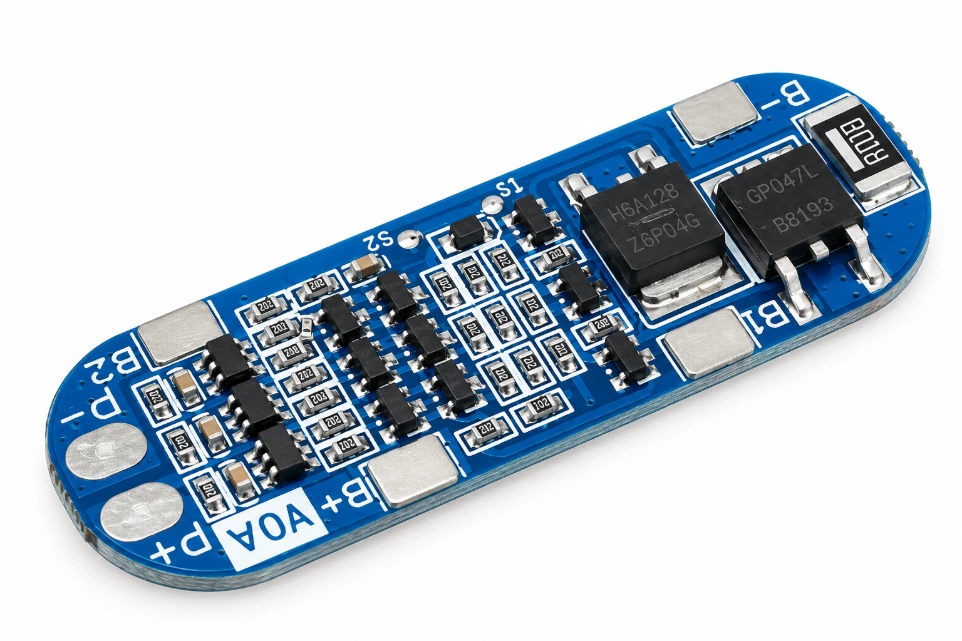

3S 10A 12V 18650 Lithium Battery Charger Board Protection Module

Specification	Details
Cell Configuration	3 Series (3S) Li-ion/Li-Po
Max Working Current	6A to 8A
Instantaneous Current	10A to 13A
Charging Voltage	12.6V to 13V DC
Overcharge Detection	4.25V ± 0.05V (per cell)
Over-discharge Detection	2.5V ± 0.08V (per cell)
Internal Resistance	< 100mΩ

Price

🚚 Ships within 24 Hours
📦 Pan India Delivery

₹ 67.80

(Tax included)

Barcode: 378588

Product Description

The 3S 10A BMS acts as the "brain" of your battery pack. It continuously monitors the individual voltage of each of the three cells in the series. If any cell exceeds the safe upper limit (overcharge) or falls below the safe lower limit (over-discharge), the module instantly cuts the connection to prevent fire hazards or permanent cell degradation. This specific board is compact and features large soldering pads, making it easy to integrate into tight spaces like massager batteries or solar street lamp systems.

Key Features

Comprehensive Protection: Built-in high-accuracy voltage detection for overcurrent, short circuit, and voltage irregularities.
Self-Recovery: Features a short-circuit protection delay with automatic recovery once the fault condition is removed.
Low Quiescent Current: Consumes less than 30uA in standby, preserving your battery's stored energy during long periods of inactivity.
Wide Application: Suitable for 18650 cells, polymer lithium batteries, and 3.7V nominal cells.
Durable Design: Rated for an effective lifetime of over 30,000 hours with an operating temperature range of -40°C to +80°C.

Technical Details

Dimensions: 50mm x 16mm x 1.0mm.
Mounting: Through-hole pads for B+, B1, B2, B-, P+, and P-.
Status: Once the first charge cycle is applied, the output is activated.

Prototyping and Engineering Tips from Robogears

Strict Wiring Order: You must wire the cells in a specific sequence to avoid damaging the module. Connect in this order: 0V (B-) → 3.7V (B1) → 7.4V (B2) → 11.1V (B+). Do not intentionally short-circuit the pads.
Cell Matching: Before building your pack, ensure all three batteries are at the same voltage level. If one cell is significantly weaker or at a different charge level, the BMS will cut power prematurely to protect that specific cell, reducing the overall capacity of your pack.
The "Wake-up" Charge: Many BMS modules remain in a "sleep" state after the batteries are first connected. If you see 0V at the P+/P- terminals, connect a 12.6V charger for a few seconds to "wake up" the protection IC and activate the output.
Motor Loads: This module is not suitable for high-startup-current devices like 775-size motors or heavy-duty hand drills, as the initial current surge will likely trigger the 10A overcurrent protection.

Package Includes

1 x 3S 10A 12V 18650 Lithium Battery Charger Board Protection Module

Disclaimer

Not compatible with Lithium Iron Phosphate (LiFePO4) batteries. Ensure your charging source does not exceed 13V to prevent stress on the protection components.

🔒
