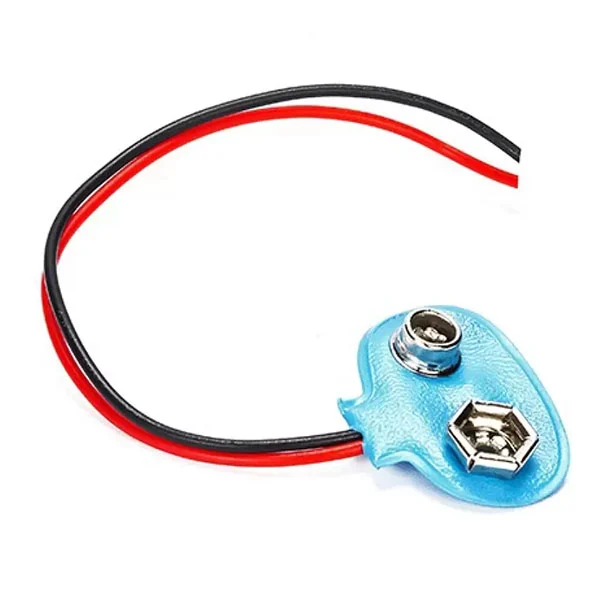

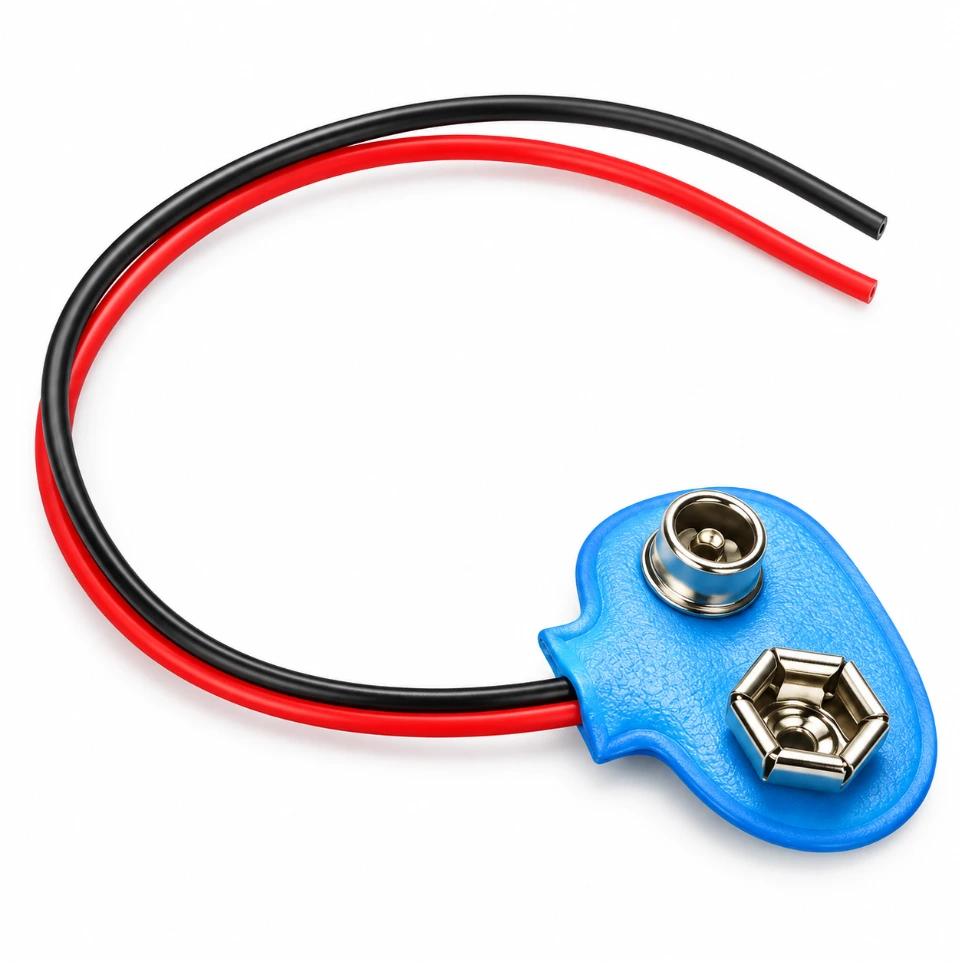

9V Battery Connector – Snap Type – 11 cm Length

9V Battery Connector – Snap Type – 11 cm Length

(0 review)
ComponentSpecification
Input ConnectorStandard 9V (PP3) Snap-On Terminals
Output TypeBare Stripped and Tinned Leads
Wire Length110 mm (11 cm)
MaterialSoft PVC / Vinyl Housing
Wire Gauge24 AWG to 26 AWG
Color CodingRed (Positive) / Black (Negative)
Price
₹ 8.47 ₹ 8.47
(Tax included)

Product Description The 11cm 9V Battery Snap Connector is a fundamental electrical component used to provide a quick and reliable power connection to any standard 9V battery. Featuring a flexible soft-shell housing, this snap-on connector is designed for ease of use in hobbyist electronics, school science experiments, and prototyping. The leads are pre-stripped and tinned, making them ready for immediate soldering to switches, motors, or PCB terminals.

Key Features

  • Universal 9V Fit: Precision-molded terminals ensure a secure, "click-lock" fit onto all 9V (6F22/PP3) batteries.

  • Flexible Lead Wires: 11cm length provides ample reach for mounting batteries inside small project boxes.

  • Pre-Tinned Ends: The wire tips are treated with a thin layer of solder to prevent fraying and ensure a strong bond during assembly.

  • Polarized Design: Distinctive Red and Black color-coding prevents accidental reverse polarity during wiring.

  • Lightweight & Compact: Minimalist design adds negligible weight to portable devices or flying models.

Technical Details

  • Operating Voltage: Up to 12V DC

  • Max Current: ~2A (Intermittent)

  • Insulation Material: PVC

  • Terminal Material: Nickel-plated steel

  • Weight: Approx. 2g

  • Wire Orientation: Side-exit leads for low-profile mounting

Prototyping and Engineering Tips from Robogears

  • Battery Security: When using this snap in a moving robot, ensure the battery itself is secured with a bracket or Velcro. The snap is an electrical connector, not a mechanical mount; sudden movements can pull the wires if the battery is loose.

  • Soldering Technique: Since the wires are thin, avoid keeping the soldering iron on the joint for too long. Excessive heat can travel up the wire and melt the soft PVC housing of the snap.

  • Reverse Polarity Protection: If you are connecting this to sensitive electronics like an Arduino or ESP32, always include a 1N4007 diode in series with the Red lead to protect your circuit in case the battery is accidentally touched to the snap backward.

  • Strain Relief: If your project requires frequent battery changes, tie a small knot in the wires inside your enclosure or use a drop of hot glue at the wire exit point to act as a strain relief.

Package Includes

  • 1 x 9V Battery Snap Connector (11cm Length)

Disclaimer Images are for reference; actual wire length or snap texture (soft vs. hard) may vary by batch. Specifications subject to change by manufacturer. Do not leave connected to dead batteries to avoid leakage.
