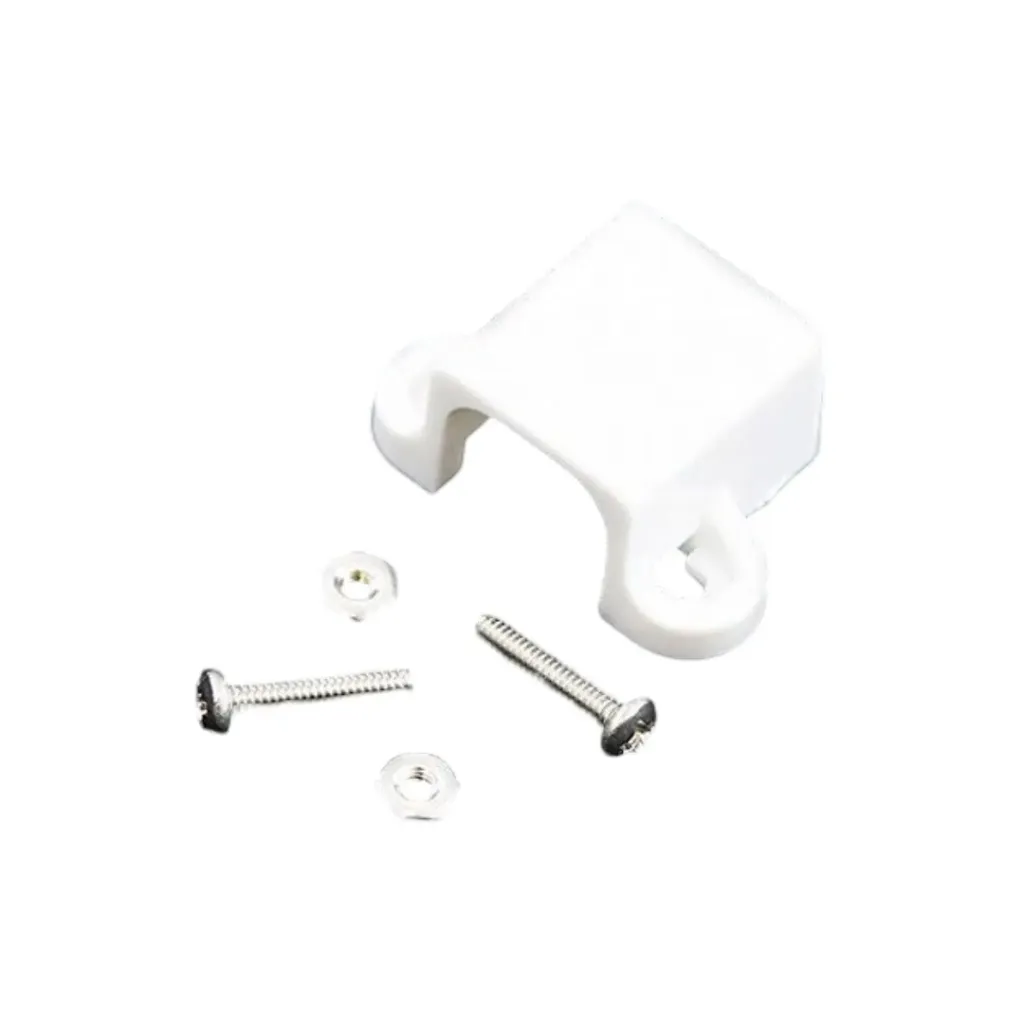

Mounting Bracket for N20 Micro Gear motors

Mounting Bracket for N20 Micro Gear motors

(0 review)
ComponentSpecification
MaterialHigh-Quality ABS Plastic
CompatibilityN20 Micro Gear Motor Series
Mounting HolesM2 / M3 Standard
Bracket TypeU-Shaped Snap-on
WeightApprox. 2g
ColorTranslucent White / Black
Price
₹ 21.19 ₹ 21.19
(Tax included)

Product Description The N20 Micro Gear Motor Mounting Bracket is a purpose-built accessory designed to securely fasten N20 series motors to your robot chassis or project frame. Made from durable, lightweight ABS plastic, this bracket features a snap-fit design that holds the rectangular gearbox of the N20 motor firmly in place, preventing vibration and misalignment. It is an essential component for building micro-sumo robots, smart locks, and motorized toy cars where space-saving and structural stability are priorities.

Key Features

  • Precision molded to fit the unique dimensions of the N20 gearbox.

  • Lightweight design that adds negligible weight to micro-robotics.

  • Pre-drilled mounting holes for easy installation on flat surfaces.

  • Durable ABS material resistant to impact and moderate heat.

  • Provides a professional, clean look to DIY mechanical assemblies.

Technical Details

  • Material Type: Acrylonitrile Butadiene Styrene (ABS)

  • Base Dimensions: Approx. 25mm x 11mm

  • Height: Approx. 11mm

  • Fixing Screw Size: M2 (Standard for motor) / M3 (Standard for base)

  • Structural Shape: U-Shape with reinforced base

  • Temperature Resistance: Up to 60°C

  • Chemical Resistance: Resistant to most common hobby-grade oils and greases

Prototyping and Engineering Tips from Robogears

  • Secure Fit: The bracket is designed to be a snug fit. If the motor feels slightly loose, a small piece of double-sided tape or a thin rubber shim inside the bracket will eliminate any "play" and reduce noise.

  • Screw Selection: Use M2 screws to secure the motor into the bracket. Be careful not to over-tighten, as the plastic threads can strip if excessive force is applied with a power driver.

  • Orientation: Mount the bracket so the motor wires are easily accessible. Ensure the D-shaft of the N20 motor has enough clearance from the mounting surface to allow the wheel or gear to rotate freely.

  • Chassis Alignment: If building a two-wheeled robot, use a ruler to ensure both N20 brackets are perfectly parallel. Even a slight angle can cause your robot to veer to one side during movement.

Package Includes

  • 1 x N20 Micro Gear Motor Mounting Bracket

  • 1 x Set of Mounting Screws/Nuts (if applicable per batch)

Disclaimer Product images are for illustrative purposes; actual appearance or color may vary by batch. Specifications are subject to change by the manufacturer. Ensure correct screw length is used to avoid damaging the internal gears of the motor.
