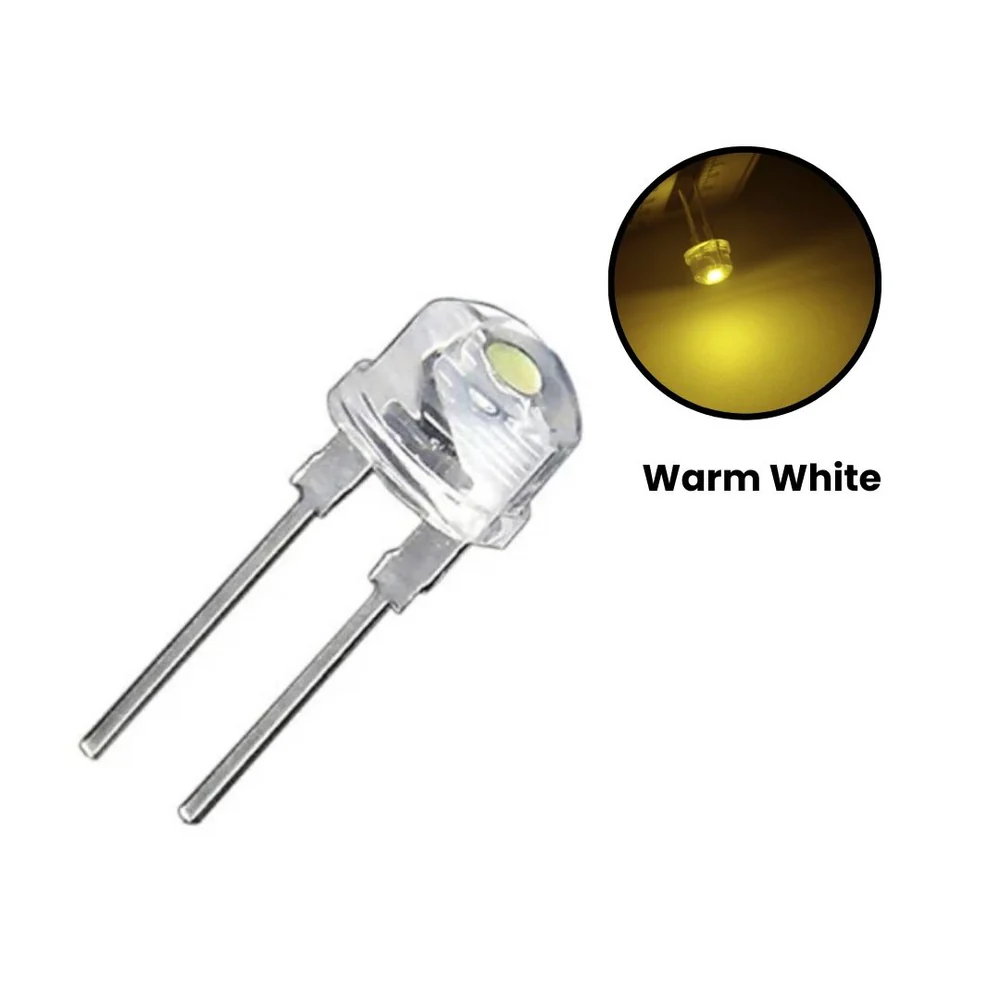

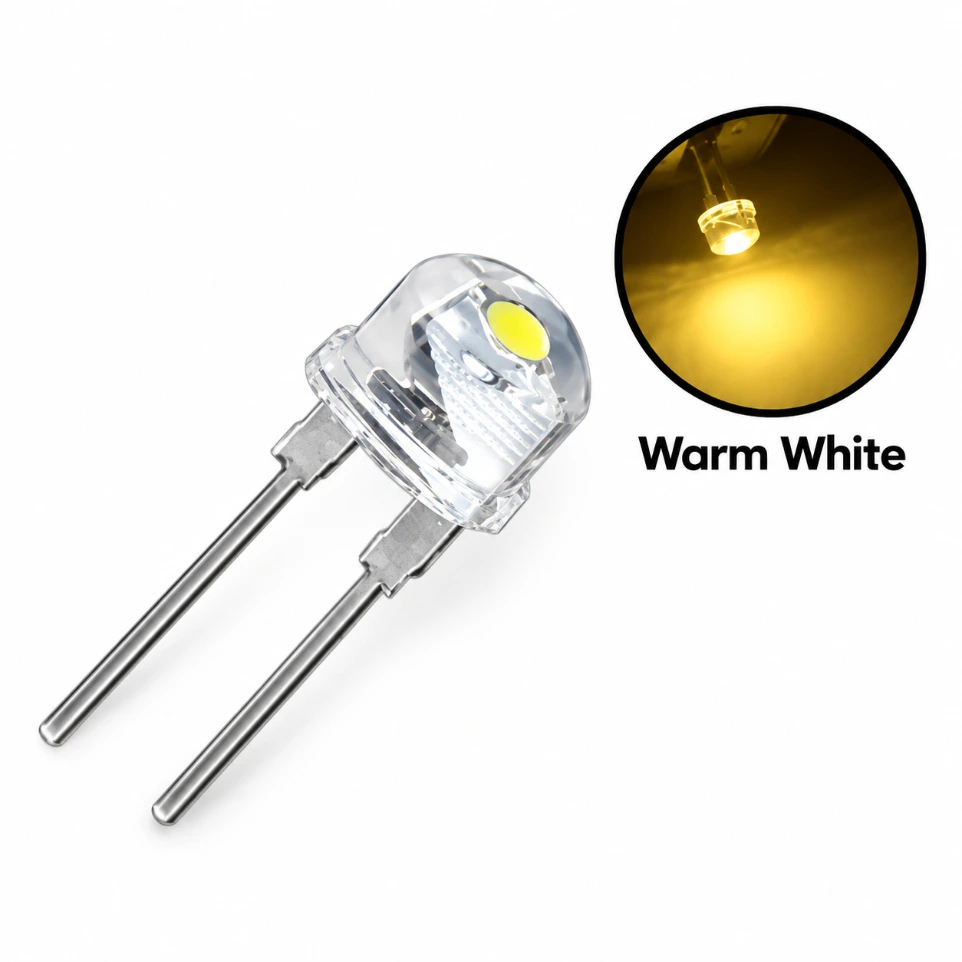

8mm Yellow Straw Hat LED High-Brightness Wide-Angle Light (Pack of 5)

8mm Yellow Straw Hat LED High-Brightness Wide-Angle Light (Pack of 5)

(0 review)
ComponentSpecification
LED TypeStraw Hat (Wide Angle)
Diameter8mm
ColorGolden Yellow / Amber
Lens AppearanceWater Clear (Crystal Clear)
Forward Voltage ($V_f$)2.0V – 2.4V
Forward Current ($I_f$)20mA (Standard) / 30mA (Max)
Luminous Intensity800 – 1200 mcd
Viewing Angle100° – 120°
Price
₹ 15.00 ₹ 15.00
(Tax included)

Product Description The 8mm Yellow Straw Hat LED provides a warm, high-intensity golden light with an exceptionally wide dispersion angle. Featuring a unique low-profile "Straw Hat" lens, this LED is designed to spread its light across a 120-degree field, effectively eliminating the narrow "spotlight" effect of traditional round-top LEDs. The crystal-clear epoxy housing ensures high light transmission and a sharp, clean aesthetic. These LEDs are the top choice for automotive indicators, emergency signal lights, solar garden lamps, and custom robotics where a broad, amber-yellow glow is required.

Key Features

  • High-Intensity Yellow Saturation: Delivers a vibrant, high-visibility golden-yellow hue.

  • Wide-Angle Dispersion: Flat-top design ensures light is spread evenly for superior panel backlighting and signal visibility.

  • Crystal Clear Lens: Premium "water-clear" finish for maximum clarity and brightness.

  • 8mm Large Format: Provides a substantial illuminated surface area, making it highly visible even in daylight.

  • Low Power Consumption: Highly efficient operation makes these ideal for long-term battery-operated signaling.

Technical Details

  • Anode (+): Longer Lead

  • Cathode (-): Shorter Lead (Flat notch on the LED housing)

  • Wavelength: 585nm – 595nm

  • Operating Temperature: -25°C to +85°C

  • Soldering Temp: 260°C for < 5 seconds

Prototyping and Engineering Tips from Robogears

  • Warning Indicators: Because of the wide viewing angle, these are the best choice for caution lights on a robot. The light remains visible even if the observer is standing far to the side of the machine.

  • Resistor Matching: Yellow LEDs typically operate at a lower voltage (2.0V – 2.2V) than white or blue LEDs. For a 5V power source, we recommend using a 150Ω to 220Ω resistor to ensure a safe 20mA current flow.

  • Uniform Backlighting: These are excellent for lighting up "Caution" or "Warning" icons on a control panel. The wide beam ensures the entire icon is lit evenly from edge to edge.

  • Mix for Contrast: Pair these with 8mm Red Straw Hat LEDs and 8mm Green Straw Hat LEDs to build a high-visibility, wide-angle traffic signal or status display.

Package Includes

  • 5 x 8mm Yellow Straw Hat LEDs

Disclaimer Images are for reference; actual yellow saturation may vary by batch. DO NOT connect directly to a power source without a current-limiting resistor, as excessive current will immediately damage the LED chip.
