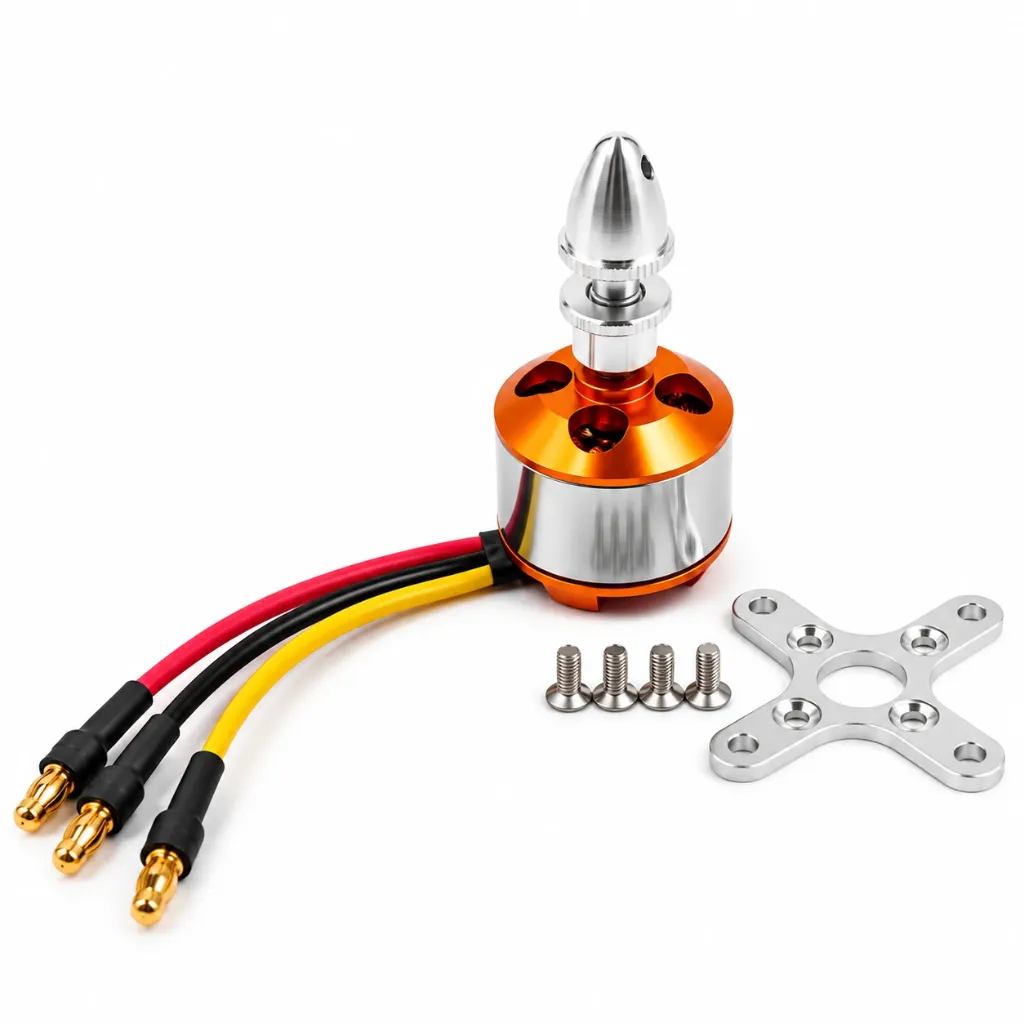

A2212 6T 2200KV Brushless Motor for Drone (Soldered Connector)

Specification	Details
Model	A2212 / 6T
KV Rating	2200 RPM/V
Max Efficiency	80%
Max Efficiency Current	4A - 10A (>75%)
Current Capacity	12A / 60s
No Load Current (@10V)	0.5A
Shaft Diameter	3.17 mm

Price

₹ 381.36

(Tax included)

Barcode: 4321221

Product Description

The A2212 6T 2200KV Brushless Motor is a high-speed, high-performance Outrunner BLDC motor designed for radio-controlled aircraft and multirotor drones. With a high KV rating of 2200, this motor is engineered for speed rather than raw lifting power, making it a favorite for FPV racing drones, high-speed RC fixed-wing planes, and pusher-propeller jets. The "Outrunner" design means the outer bell of the motor rotates around the internal coils, providing excellent torque-to-weight ratios. This specific version comes with pre-soldered 3.5mm Gold Bullet connectors, significantly reducing assembly time and ensuring a reliable, low-resistance connection to your Electronic Speed Controller (ESC).

Key Features

High-Speed KV Rating: 2200KV means the motor spins at 2200 RPM for every 1 volt applied, ideal for smaller, high-pitch propellers.
Pre-Soldered Connectors: Includes factory-fitted 3.5mm male bullet connectors, eliminating the need for delicate soldering near the motor windings.
High-Strength Neodymium Magnets: Optimized magnetic flux for smooth rotation and rapid acceleration under varying throttle loads.
Precision Balanced Rotor: Minimizes vibration during high-RPM operation, protecting your drone's flight controller (IMU) from mechanical noise.
Versatile Mounting: Standard mounting hole patterns (16mm/19mm) compatible with most motor drone frames.

Technical Details

Compatible ESC: 30A to 40A Brushless ESC.
Recommended Propeller: 5x5, 6x3, or 6x4 (6-inch max).
Battery Support: 2S - 3S LiPo (7.4V - 11.1V).

Prototyping and Engineering Tips from Robogears

Propeller Selection: CRITICAL: Because this is a 2200KV motor, do NOT use large propellers (like 10x4.5). Using a propeller larger than 6 inches will cause the motor to draw excessive current, leading to overheating and burnt windings. For a 3S LiPo setup, a 6x4 APC style propeller is the industry standard for a balance of speed and thrust.
Motor Direction: To change the direction of the motor's rotation, simply swap any two of the three bullet connector wires going to the ESC. There is no "positive" or "negative" in a 3-phase BLDC system.
Vibration Management: Use a Propeller Balancer to ensure your props are perfectly even. Even a slight imbalance at 20,000+ RPM will cause "Jello" in your FPV video feed and can eventually loosen the screws on your drone frame.
Mounting Screws: When mounting the motor to your frame, ensure the screws are not too long. If a screw reaches into the motor body and touches the copper windings (stator), it will cause a short circuit and instantly destroy the motor and ESC when powered.
Cooling: Brushless motors are cooled by the air moved by the propeller. Avoid running the motor at full throttle for extended periods if the drone is stationary on a test bench, as the lack of forward airspeed can lead to thermal buildup.

Package Includes

1 x A2212 6T 2200KV Brushless Motor
1 x Propeller Adapter (Collet Type)
1 x Motor Mount (X-Type)
4 x Mounting Screws

Disclaimer: This is a high-speed motor; ensure all propellers are securely tightened before flight. Never stand in the plane of the spinning propeller. Use a 30A or higher ESC to avoid controller failure. Always perform a "flick test" before powering up to ensure no debris is stuck in the magnetic gap of the outrunner bell.
