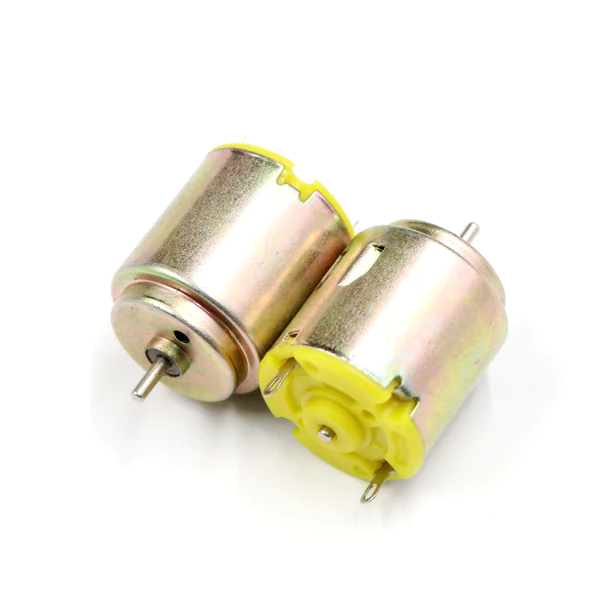

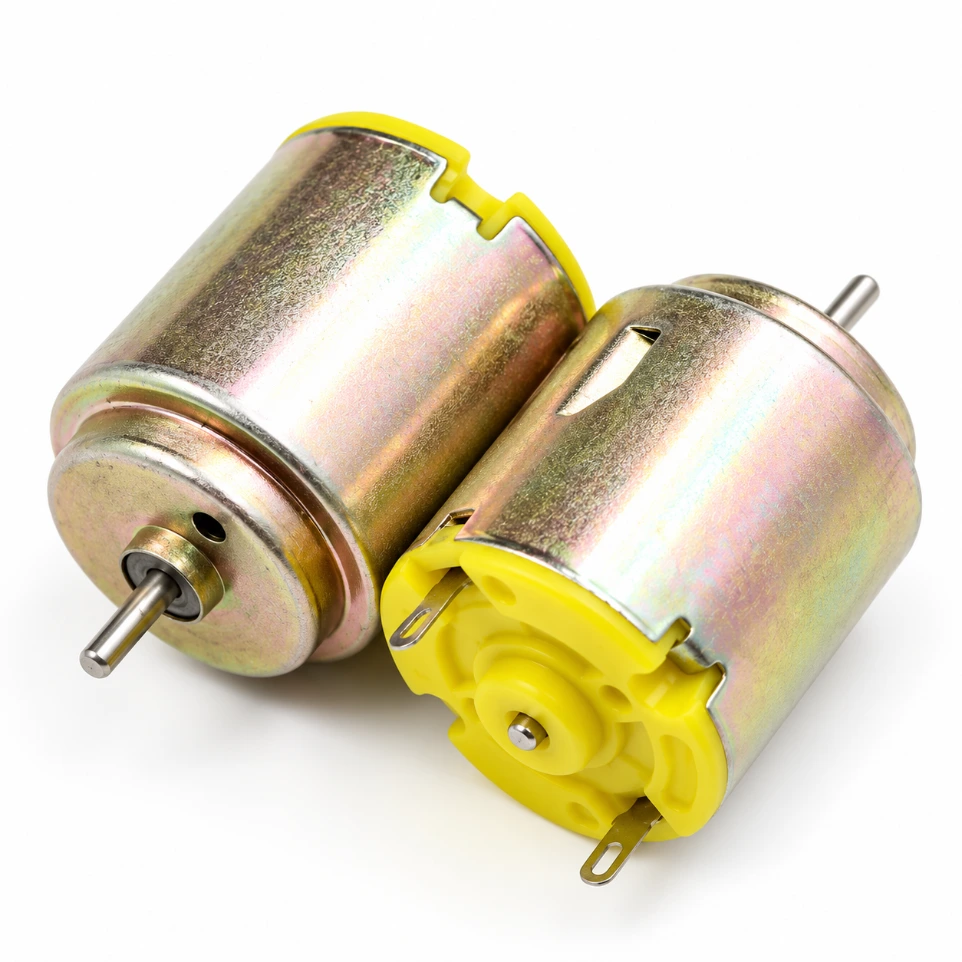

Model 260 DC Toy Motor 3V-6V High Speed Round Motor for DIY Projects and RC Toys (40 x 30 x 24mm)

Model 260 DC Toy Motor 3V-6V High Speed Round Motor for DIY Projects and RC Toys (40 x 30 x 24mm)

(0 review)
ComponentSpecification
Model260 Series
Operating Voltage3.0V to 6.0V DC
Form FactorRound / Cylindrical
No-Load Speed8,000 – 12,000 RPM (at 6V)
Shaft Diameter2.0 mm
Dimensions40 x 30 x 24 mm
Shaft TypeSingle Straight Shaft
Price
₹ 29.66 ₹ 29.66
(Tax included)

Product Description The Model 260 is a classic cylindrical DC motor designed for high-speed rotational applications. Slightly larger and more powerful than the standard 130-size hobby motor, the 260 provides increased torque while maintaining the high RPM required for small fans, motorized toys, and DIY science models. Its rounded body makes it easy to mount in circular enclosures or PVC pipes, making it a favorite for student projects involving water pumps, wind turbines, or high-speed propellers.

Key Features

  • Increased Torque: Delivers more mechanical power than smaller 130-series toy motors.

  • Versatile Voltage Range: Operates efficiently from 2x AA batteries (3V) up to a 6V power pack.

  • Standard 2mm Shaft: Compatible with a vast range of plastic gears, toy wheels, and fan blades.

  • Durable Carbon Brushes: Designed for longer operational life compared to basic metal-leaf brush motors.

  • Compact Round Profile: Ideal for specialized mounting in tubes or custom 3D-printed housings.

Technical Details

  • No-load Current: ~100mA to 200mA

  • Load Current: ~400mA to 800mA (Max)

  • Motor Body Diameter: 24 mm

  • Motor Body Length: 30 mm (Excluding shaft)

  • Shaft Length: ~8 mm to 10 mm

  • Weight: Approx. 28g to 32g

Prototyping and Engineering Tips from Robogears

  • Powering Up: For the best performance, use a 4x AA battery holder (6V). If you notice the motor slowing down significantly under load, ensure your batteries are fresh, as high-speed motors can be current-hungry.

  • Shaft Attachments: When pressing a gear or propeller onto the 2mm shaft, always support the back of the motor against a flat surface. This prevents the back-plate from being pushed out, which would ruin the internal electrical contacts.

  • Polarity & Direction: Swapping the positive and negative wires will instantly reverse the motor's direction. Use a DPDT slide switch if you want to create a "Forward-Reverse" control for a small toy car.

  • Heat Management: High-speed motors generate heat during continuous use. If the casing becomes too hot to touch, allow it to cool down or add a small 24mm heatsink to prolong the life of the internal windings.

Package Includes

  • 1 x Model 260 Round DC Toy Motor

Disclaimer Images are for reference; actual appearance or casing finish may vary by batch. Specifications subject to change by manufacturer. Ensure all electrical connections are insulated.
