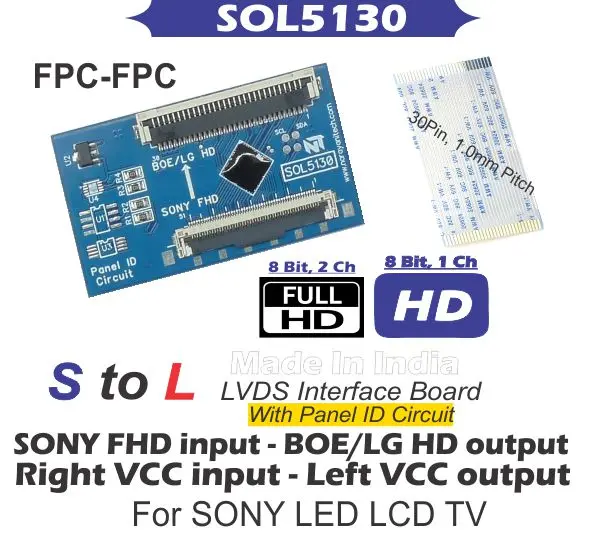

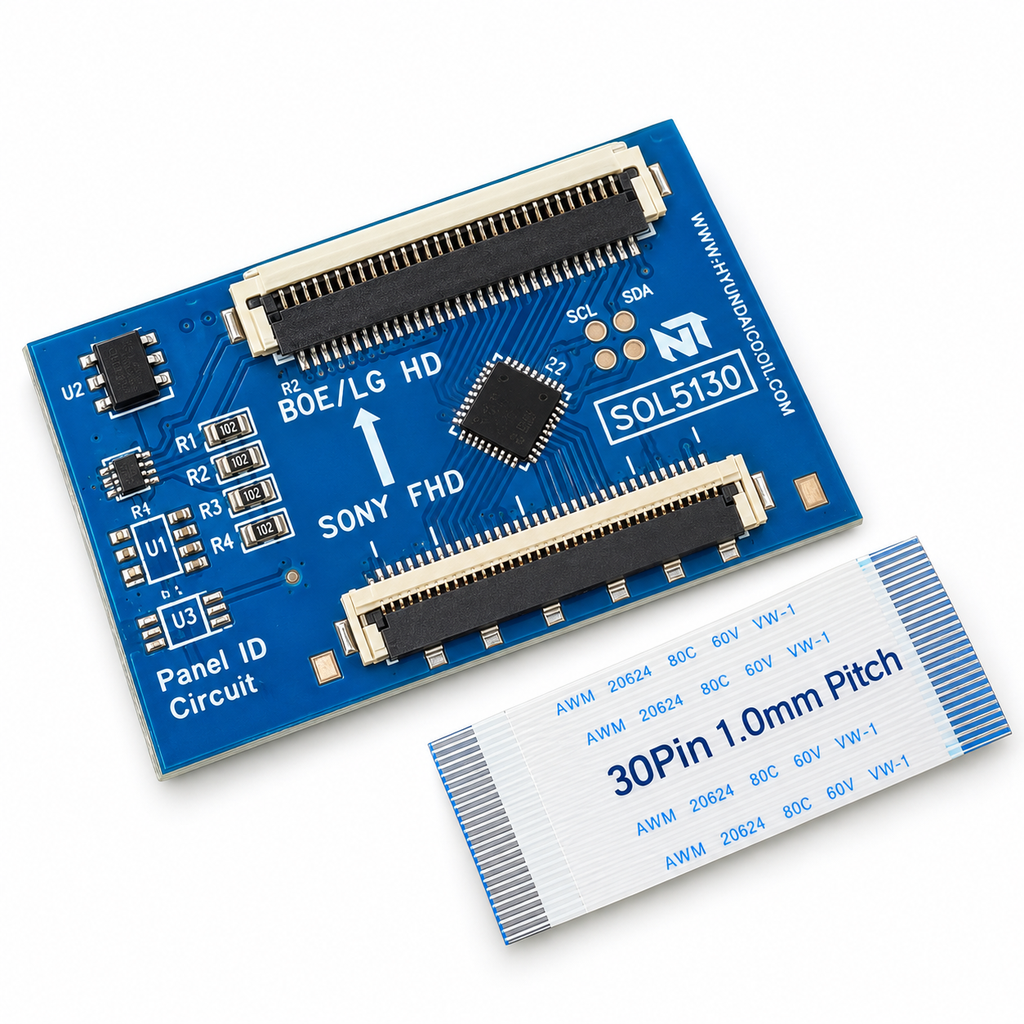

SOL5130 LVDS Signal Interface Adapter Board

SOL5130 LVDS Signal Interface Adapter Board

SpecificationDetails
Interface TypeLVDS (Low-Voltage Differential Signaling)
Pin Configuration51-Pin to 30-Pin / Multi-Interface (Variant Dependent)
Supported ResolutionHD (1366x768) and Full HD (1920x1080)
Operating Voltage5V / 12V (Pass-through)
Connector TypeGold-Plated FFC / FPC Sockets
PCB MaterialHigh-Grade FR-4 Glass Fiber
Data ChannelsSupports 8-bit and 10-bit LVDS Formats
                                 Price

🚚 Ships within 24 Hours
📦 Pan India Delivery
₹ 211.86 ₹ 211.86
(Tax included)

Barcode: 4831555

Product Description

The SOL5130 Interface Board is engineered to resolve signal mismatch issues encountered during the replacement of large-screen TV panels. Because different manufacturers utilize varying connector pitches and pinouts, the SOL5130 re-routes the differential data pairs (Clock and Data 0-3) to ensure they reach the correct pins on the T-CON board or LCD panel. The board features precision-etched traces to maintain high-speed signal integrity, effectively preventing common issues such as "ghosting," flickering, or color distortion. Its standardized layout provides a secure, solderless connection point, making it a reliable choice for professional-grade TV restoration.

Key Features

  • Universal Signal Mapping: Designed to bridge the gap between 51-pin and 30-pin LVDS standards commonly found in 32" to 55" TVs.

  • Signal Integrity Optimization: Precision-routed differential traces minimize electromagnetic interference (EMI).

  • Plug-and-Play Connectors: High-quality locking FFC sockets ensure the cables remain secure even in high-vibration environments.

  • Gold-Plated Contacts: Superior conductivity and resistance to oxidation for long-term reliability.

  • Dual Voltage Support: Safely handles both 5V and 12V power rails used in various panel technologies.

Technical Details

  • Pitch Compatibility: Supports standard 0.5mm and 1.0mm FFC cables.

  • Data Width: Compatible with both single-channel and dual-channel LVDS signaling.

  • Compact Footprint: Slim PCB design allows for easy mounting within the crowded internal chassis of a TV.

Prototyping and Engineering Tips from Robogears

  • The "Power Check" Protocol: Before applying power, use a multimeter to verify the VCC (Power) orientation on both the motherboard and the panel. If the motherboard outputs VCC on the left but the SOL5130/Panel expects it on the right, you must use a mirrored cable or adapter. Reversing VCC and GND will cause immediate, irreversible damage to the T-CON board.

  • Cable Seating: Ensure the Flexible Flat Cable (FFC) is inserted completely straight into the SOL5130 socket. A skewed insertion can cause "shorting" between adjacent data lines, leading to vertical lines on the screen or a complete lack of display.

  • Minimizing Noise: LVDS signals are highly sensitive to distance. Keep your FFC cables as short as possible. If you must use longer cables, ensure they are not routed near the TV’s power supply (SMPS) or backlight inverter to avoid inductive noise.

  • Static Awareness: Always wear an anti-static wrist strap. The sensitive CMOS logic on the motherboard and panel can be easily destroyed by static discharge during the connection process.

Package Includes

  • 1 x SOL5130 LVDS Interface Board

Disclaimer

This is a technical component intended for professional TV repair and electronic engineering. Incorrect pinout alignment or improper voltage settings can result in permanent hardware failure. Always refer to the specific panel and motherboard datasheets before finalizing the connection.

🔒
