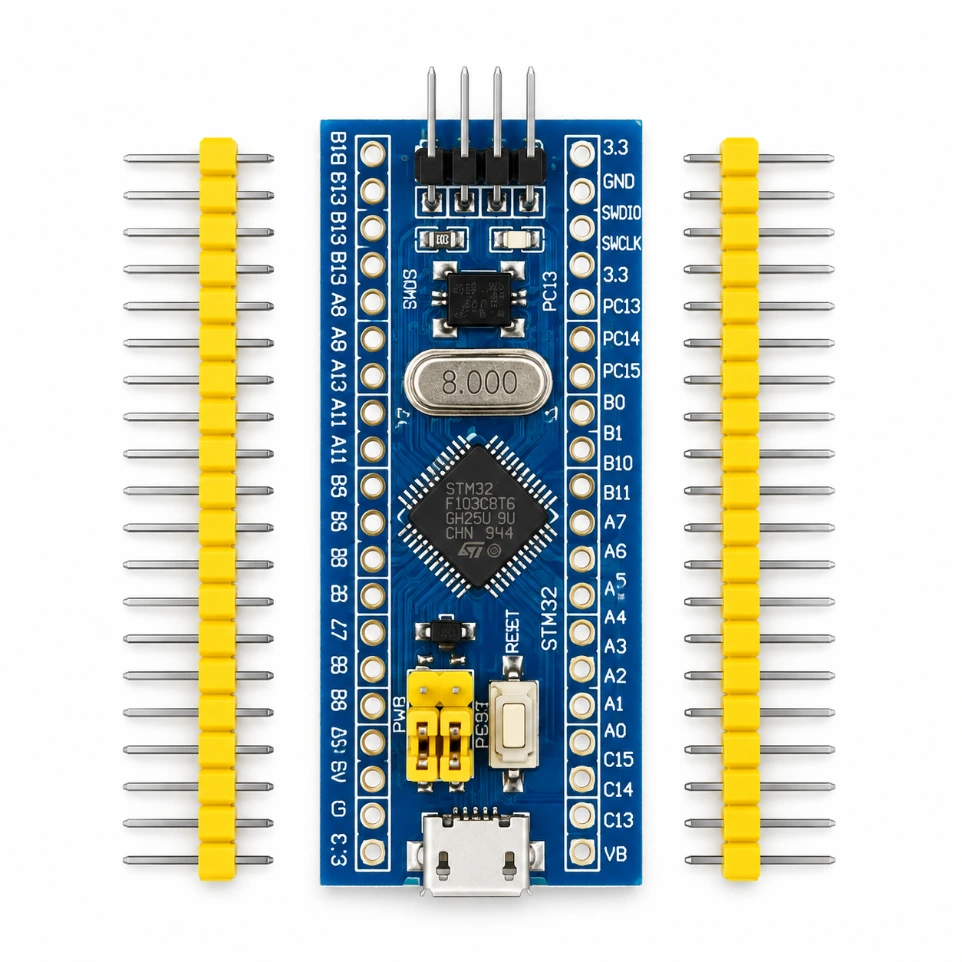

STM32F103C8T6 Minimum System Development Board – "Blue Pill"

Product Description

The STM32F103C8T6, widely known as the "Blue Pill," is a high-performance 32-bit development board that offers a significant upgrade over traditional 8-bit microcontrollers. Powered by the ARM Cortex-M3 core, it provides the computational speed and advanced peripheral support required for modern embedded applications. This "Minimum System Board" is fully integrated with a 3.3V LDO regulator, reset circuitry, and dual crystal oscillators, making it an ideal choice for engineers and students transitioning to professional ARM-based architectures. Its compact, breadboard-friendly design ensures seamless integration into complex robotics and IoT prototypes.

Detailed Key Features

• Advanced 32-Bit Architecture: Operates at a high clock speed of 72 MHz, delivering the processing power needed for complex mathematical calculations and real-time data handling.

• Professional Communication Interfaces: Features multiple hardware communication ports, including 2x I2C, 2x SPI, 3x USARTs, and a dedicated CAN 2.0 interface.

• Integrated Timekeeping: Equipped with a secondary low-frequency crystal for the internal Real-Time Clock (RTC), enabling precise time-sensitive operations.

• Versatile Power Options: Includes an onboard 3.3V LDO regulator, allowing the board to be powered via the Micro-USB port or an external 5V supply.

• Dual Programming Modes: Specifically designed with a dedicated SWD (Serial Wire Debug) header for real-time debugging and a standard UART header for bootloading.

All Technical Details

• High-Precision Data Acquisition: Features two 12-bit Analogue-to-Digital Converters (ADCs) supporting up to 10 input channels for sensitive sensor interfacing.

• Timer Capability: Includes three 16-bit general-purpose timers and one dedicated advanced PWM timer for motor control and signal generation.

• USB Connectivity: Supports USB 2.0 Full Speed data transfer directly through the onboard Micro-USB interface.

• Compact Footprint: Precision-engineered at 53mm x 22mm, fitting perfectly into standard breadboards and custom PCBs.

• Mechanical Build: High-quality PCB construction with gold-plated pin holes for reliable electrical connectivity.
