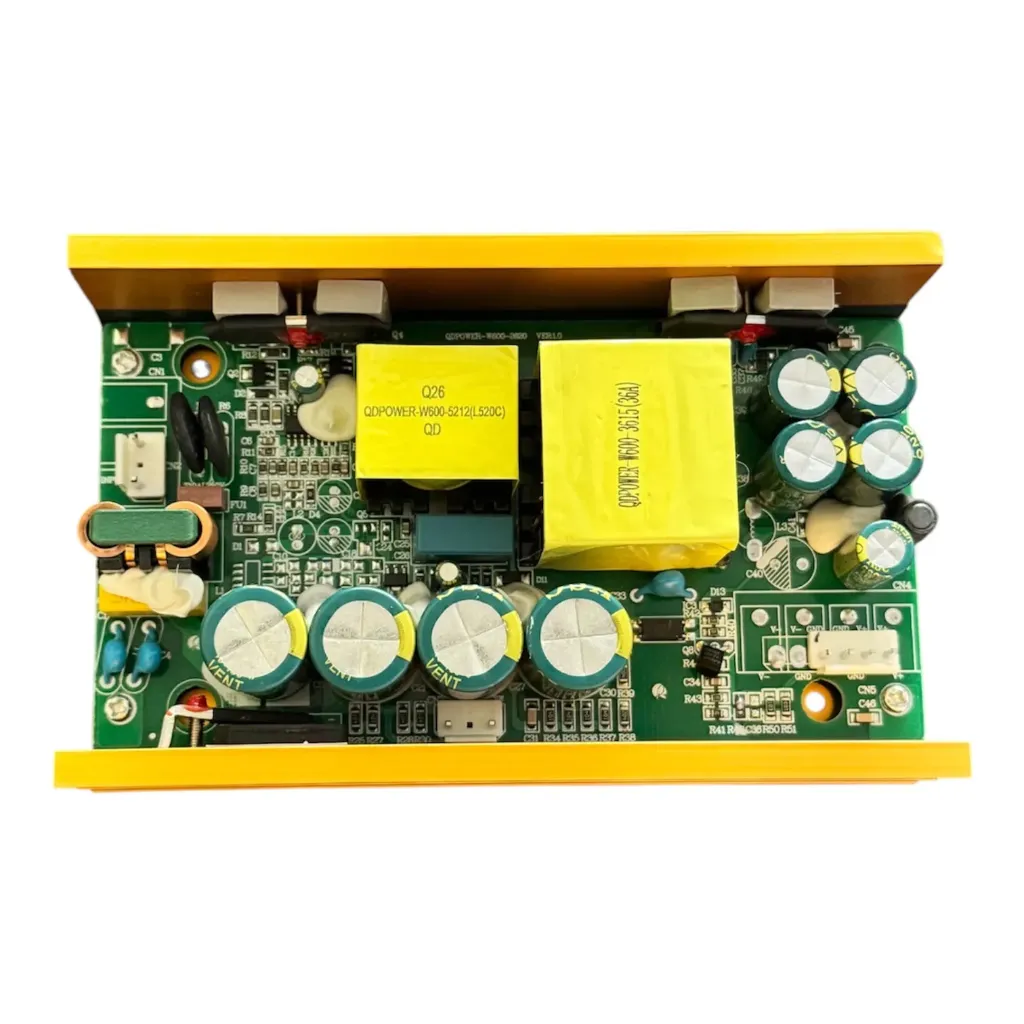

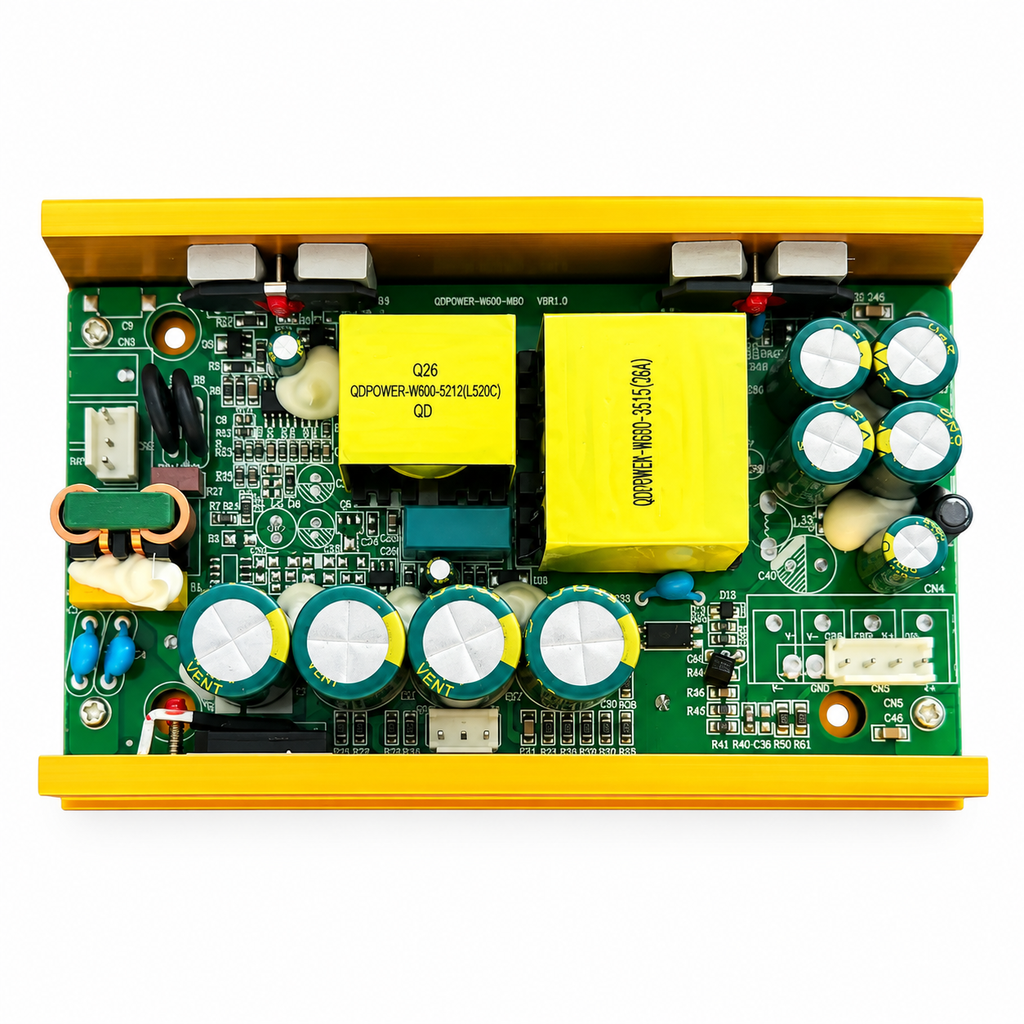

36V 10A 360W SMPS Power Supply Module

Key Features

• AC-to-DC switching-mode power supply

• Regulated 36V DC output

• Up to 10A output current

• Maximum 360W output power

• 100V–240V AC input

• 50/60Hz input-frequency compatibility

• High-efficiency SMPS architecture

• Dual aluminium heat-sink cooling

• Short-circuit protection

• Over-current protection

• Over-voltage protection

• Suitable for high-power audio amplifiers

• Suitable for robotics and CNC systems

• Suitable for industrial automation

• Open-frame high-power construction

Electrical Specifications

Output Power Calculation

The relationship between voltage, current and power is:

Power = Voltage × Current

Therefore:

36V × 10A = 360W

This corresponds to the module's published maximum output rating.

Protection Features

Protection circuitry provides an additional safety layer but does not replace correct wiring, earthing, fusing, enclosure design or load selection.

Thermal Management

Output Characteristics

The module is intended to provide:

36V DC regulated output

for compatible equipment.

The connected load determines the actual current drawn.

For example:

36V × 2A = 72W

36V × 5A = 180W

36V × 8A = 288W

36V × 10A = 360W

The load does not automatically receive 10A; it draws current according to its electrical requirements, up to the capability of the power supply.

Important Rating Note

The published maximum rating is:

36V / 10A / 360W

For demanding continuous installations, thermal conditions, airflow, ambient temperature, wiring and load behaviour should all be considered rather than designing solely around the headline maximum rating.

Compatibility

This SMPS is designed to power equipment requiring:

36V DC

with a total current requirement of up to:

10A

and total maximum load up to:

360W

Input Compatibility

Supported mains input:

100V–240V AC, 50/60Hz

This allows operation across a wide range of compatible AC mains systems when correctly installed.

Output Compatibility

Fixed output:

36V DC

Maximum published output current:

10A

Maximum published output power:

360W

The connected equipment must be designed to operate from approximately 36V DC.

Audio Amplifier Compatibility

The SMPS is particularly suitable for compatible high-power Class-D amplifier boards requiring 36V DC.

Potential applications include compatible:

• TPA3255 amplifier boards

• IRS2092 amplifier boards

• Stereo Class-D amplifiers

• 2.1-channel amplifiers

• Mono subwoofer amplifiers

• DIY home-audio amplifiers

Always verify the amplifier's maximum permitted input voltage before connecting a 36V supply.

Important Amplifier Warning

Do not assume every amplifier board can accept 36V.

For example, an amplifier rated for a maximum of:

24V or 30V

must not be connected directly to this 36V SMPS.

Always check the amplifier specification first.

Robotics & Automation Compatibility

The supply may be used with compatible:

• Robotics systems

• Motor-control systems

• CNC electronics

• Industrial controllers

• Automation equipment

• DC motors

• High-power electronics

provided the equipment is designed for 36V DC operation.

Required for Installation

Depending on the installation, you may require:

• AC mains cable

• Correctly rated plug

• AC input fuse

• Power switch

• Protective enclosure

• Earth connection

• 36V DC output wiring

• Output connectors

• Terminal covers

• Cable glands

• Insulation

Before Purchase

Input: 100V–240V AC

Frequency: 50/60Hz

Output: 36V DC

Maximum Current: 10A

Maximum Power: 360W

Cooling: Dual aluminium heat sinks

Enclosure: Not included

AC Cable: Not included

Applications

• TPA3255 amplifier projects

• IRS2092 amplifier projects

• High-power Class-D amplifiers

• Subwoofer amplifier systems

• DIY home audio

• CNC machines

• Robotics projects

• Industrial automation

• DC motor systems

• Test benches

• Laboratory electronics

• DIY electronics

• 36V control systems

• High-power DC electronics

Suitable For

• Audio builders

• Electronics technicians

• Engineering students

• Makers

• Robotics developers

• CNC builders

• Industrial automation projects

• Electronics laboratories

📦 What's Included

❌ What's Not Included

The standard package does not include:

• AC Input Cable

• AC Plug

• Power Switch

• External Fuse / Fuse Holder

• Protective Enclosure

• Terminal Covers

• DC Output Cable

• Output Connectors

• Amplifier Board

• Speakers

• Motor / Load

• External Cooling Fan

• Installation Hardware unless specifically supplied

Important Purchase Note

This product is an open-frame AC-to-DC SMPS module, not a complete enclosed plug-and-play adapter.

A typical installation requires:

AC Mains → Fuse / Switch → SMPS → 36V DC Load

Appropriate protective enclosure, insulation and earthing should be incorporated into the final system.

High-Voltage Warning

Parts of the PCB and input terminals may be at dangerous mains voltage whenever AC power is connected.

The module should not be operated where users can accidentally touch the AC input or exposed high-voltage circuitry.

Product Variation

PCB layout, heat-sink finish, capacitor brands, terminal design and minor component placement may vary between manufacturing batches while maintaining the specified electrical function.

Getting Started

This module operates directly from AC mains voltage.

Installation should be performed only by a person familiar with mains-voltage electrical safety.

Step 1 — Confirm the Load

Before installation, verify that the equipment requires:

36V DC

and does not exceed:

10A / 360W

Step 2 — Check the Equipment's Voltage Rating

Do not connect the SMPS to equipment with a maximum voltage below 36V.

For example:

36V-rated equipment → Potentially Compatible

24V maximum equipment → Not Compatible

Step 3 — Keep AC Power Disconnected

Complete all wiring with mains power fully disconnected.

Never modify wiring while the SMPS is energised.

Step 4 — Identify the Terminals

Identify the AC-input and DC-output terminals using the markings on the actual module.

Do not rely on wire colour or assumptions.

Step 5 — Install Inside a Protective Enclosure

Because the module contains exposed mains-voltage circuitry, install it in an appropriate enclosure that prevents accidental contact.

Maintain ventilation around both aluminium heat sinks.

Step 6 — Use Proper Input Protection

A professionally designed installation should incorporate appropriate:

• Fuse protection

• Power isolation

• Insulation

• Earthing where applicable

• Strain relief

• Terminal protection

according to the final system design.

Step 7 — Verify Wiring Before Power-Up

Check:

• AC input connections

• Protective earth where applicable

• DC output polarity

• Terminal tightness

• Exposed conductors

• Insulation

• Load compatibility

Step 8 — Power the SMPS Without the Expensive Load

For initial testing, avoid immediately connecting an expensive amplifier or controller.

Apply power only after the module is safely enclosed or otherwise protected from accidental contact.

Step 9 — Measure the DC Output

Using an appropriately rated multimeter, verify approximately:

36V DC

at the output.

Step 10 — Disconnect AC Power Again

After verification, disconnect mains power and allow the supply to discharge before changing connections.

Step 11 — Connect the Load

Connect the compatible 36V load using appropriately rated output wiring.

Observe correct DC polarity.

Step 12 — Final Test

Power the system and monitor:

• Output stability

• Load operation

• Wiring temperature

• Terminal temperature

• Heat-sink temperature

• Ventilation

Basic System Layout

100V–240V AC Mains

↓

Protection / Isolation

↓

36V 10A SMPS

↓

36V DC

↓

Compatible Load

Audio Amplifier Example

AC Mains

↓

36V 10A SMPS

↓

Compatible 36V Class-D Amplifier

↓

Speakers

Important

Never work on the module while AC mains power is connected.

Even after switching off the supply, internal capacitors can retain electrical charge for a period of time.

🔧 Prototyping and Engineering Tips from RoboGears

1. Verify 36V Compatibility First

Never choose a power supply based only on current or wattage.

The connected device must first support:

36V DC

A 36V / 10A supply is not suitable for a board whose maximum permitted input is only 24V or 30V.

2. Understand the 10A Rating

The SMPS can supply up to its rated current according to load demand.

A 2A load does not automatically receive 10A.

At 36V:

2A ≈ 72W

5A ≈ 180W

10A = 360W

3. Use Heavy-Gauge Output Wiring

At high current, undersized wire causes:

• Voltage drop

• Heating

• Power loss

• Reduced amplifier performance

Use appropriately rated wiring for the expected current and cable length.

4. Keep DC Wiring Short

For high-current amplifier applications, keeping the 36V output wiring reasonably short helps reduce voltage drop.

5. Provide Proper Ventilation

The SMPS uses large dual aluminium heat sinks.

Do not install the supply in a completely sealed enclosure without suitable ventilation.

6. Keep the Heat Sinks Clear

Allow airflow around the heat sinks.

Avoid placing:

• Foam

• Wires

• Insulation

• Other circuit boards

directly against the heat-dissipation surfaces.

7. Verify Output Before Connecting Expensive Equipment

Before connecting an amplifier, CNC controller or robotics system:

Measure the output with a multimeter.

Confirm correct voltage and polarity first.

8. Protect the AC Side

A properly engineered installation should use suitable:

• Fuse protection

• Power switch / disconnect

• Earthing

• Insulation

• Cable strain relief

according to the final equipment design.

9. Cover Exposed AC Terminals

Open AC terminals create a serious shock hazard.

Use a suitable enclosure or terminal protection to prevent accidental contact.

10. Keep Mains and Low-Voltage Wiring Separated

Inside an enclosure, maintain sensible physical separation between:

• AC input wiring

• 36V DC output wiring

• Low-level audio wiring

This improves both electrical safety and noise performance.

11. Audio Projects Benefit From Good Wiring Layout

When powering amplifier boards:

• Keep AC wiring away from audio signal wiring

• Keep high-current DC wiring short

• Maintain secure ground connections

• Avoid unnecessary cable loops

This can help minimise unwanted hum and noise.

12. Don't Assume Every 360W Amplifier Needs 360W Continuously

Music has varying instantaneous power demand.

The actual power required depends on:

• Amplifier architecture

• Speaker impedance

• Output level

• Number of channels

• Audio programme material

Select the supply according to the actual amplifier requirements.

Troubleshooting

No 36V Output

With AC power safely isolated, check:

• Input wiring

• Fuse/protection

• Terminal connections

• Load condition

Do not troubleshoot exposed mains circuitry while energised.

Output Drops Under Load

Possible causes include:

• Excessive load current

• Poor DC wiring

• Loose terminals

• Over-current protection

• Thermal conditions

Amplifier Distorts at High Volume

Check:

• Amplifier voltage compatibility

• Current demand

• Speaker load

• DC wiring

• Terminal connections

SMPS Gets Very Hot

Check:

• Load current

• Ventilation

• Heat-sink airflow

• Installation enclosure

• Terminal condition

Wiring Gets Hot

Stop operation and inspect:

• Wire gauge

• Connectors

• Terminal tightness

• Load current

Hot wiring can indicate excessive resistance or undersized conductors.

Protection Activates

Investigate possible:

• Output short circuit

• Excessive current

• Incorrect load

• Wiring fault

Do not repeatedly reset the supply without identifying the underlying problem.

Engineering Principle

A reliable high-power DC supply system requires correct matching of:

AC Protection + SMPS + DC Wiring + Load + Cooling + Enclosure

Correct voltage selection and safe mains installation are more important than simply choosing the highest available wattage.

FAQ

1. What is this product?

It is an AC-to-DC switching-mode power supply designed to provide regulated 36V DC power.

2. What is the input voltage?

Published input range:

100V–240V AC

3. What input frequency does it support?

50/60Hz

4. What is the output voltage?

36V DC

5. What is the maximum output current?

10A

6. What is the maximum output power?

360W

because:

36V × 10A = 360W

7. Does it always output 10A?

No.

The connected load draws the current it requires, up to the power supply's rated capability.

8. Can I use it for an audio amplifier?

Yes, provided the amplifier is designed to operate from 36V DC and its current/power requirements are compatible with this supply.

9. Can I use it with a TPA3255 amplifier?

It can be used with a TPA3255-based amplifier board whose specific implementation is rated for a 36V DC supply.

Always verify the voltage rating of the exact amplifier board before connection.

10. Can I use it with an IRS2092 amplifier?

Potentially yes, provided the exact IRS2092 amplifier module's required supply configuration and voltage are compatible.

Check the specific amplifier board before connecting it.

11. Can I use it with a 24V amplifier board?

No, not directly if the amplifier's maximum permitted supply is only 24V.

A 36V supply could damage it.

12. Can I use it for a subwoofer amplifier?

Yes, when the subwoofer amplifier is designed for a compatible 36V DC supply.

13. Can I use it for CNC machines?

Yes, for compatible CNC electronics requiring 36V DC within the supply's current and power capability.

14. Can I use it for robotics?

Yes, for compatible 36V robotics or motor-control systems.

15. Is the output adjustable?

The exact RoboGears product page specifies a 36V regulated output.

An adjustable output range is not documented, so do not assume that the output is user-adjustable.

16. Does it have short-circuit protection?

Yes.

Short-circuit protection is listed in the current RoboGears specification.

17. Does it have over-current protection?

Yes.

18. Does it have over-voltage protection?

Yes.

19. Does it have a cooling fan?

The exact RoboGears product is specified with:

Dual aluminium heat sinks

No integrated cooling fan is documented.

20. Does it need ventilation?

Yes.

Adequate ventilation is recommended, especially during sustained high-load operation.

21. Is this a plug-and-play adapter?

No.

It is an open-frame AC-powered SMPS module intended for proper installation.

22. Is an AC cable included?

No.

The current RoboGears listing specifically states that the AC input cable is not included.

23. Is an enclosure included?

No.

A suitable protective enclosure should be provided as part of the final installation.

24. Is a power switch included?

No.

The current package does not specify a separate power switch.

25. Should I check the output before connecting my amplifier?

Yes.

Verify the output voltage and polarity with an appropriately rated multimeter before connecting expensive electronics.

26. Can I touch or adjust the board while it is powered?

No.

This is an open-frame mains-powered device with exposed high-voltage circuitry.

27. Is 360W the same as 36V × 10A?

Yes.

At the published maximum ratings:

36V × 10A = 360W

28. Can I connect a 5A load?

Yes, if it requires 36V DC.

A 36V / 5A load represents approximately:

180W

29. Can I connect two devices?

Potentially yes, if both require 36V DC and their combined current does not exceed the properly designed system limits.

For example:

Device A = 3A

Device B = 2A

Combined = 5A

The wiring and distribution must also be properly designed.

30. What is included?

1 × 36V 10A 360W SMPS Power Supply Module

Important Safety Note

This module connects directly to potentially lethal AC mains voltage.

• Installation should be performed by a suitably knowledgeable person.

• Disconnect mains power before wiring.

• Prevent accidental contact with AC terminals and exposed circuitry.

• Use a suitable protective enclosure.

• Use appropriate fuse protection.

• Provide correct earthing where required.

• Verify DC output before connecting the load.

• Maintain adequate ventilation.

• Never work on the module while energised.

Disclaimer

The published electrical rating is 36V DC, up to 10A and 360W maximum.

Actual system loading should account for operating temperature, ventilation, wiring, connected equipment and installation conditions.

Product appearance, PCB layout, heat-sink design, capacitor brands and other minor construction details may vary between manufacturing batches while maintaining the specified electrical function.
