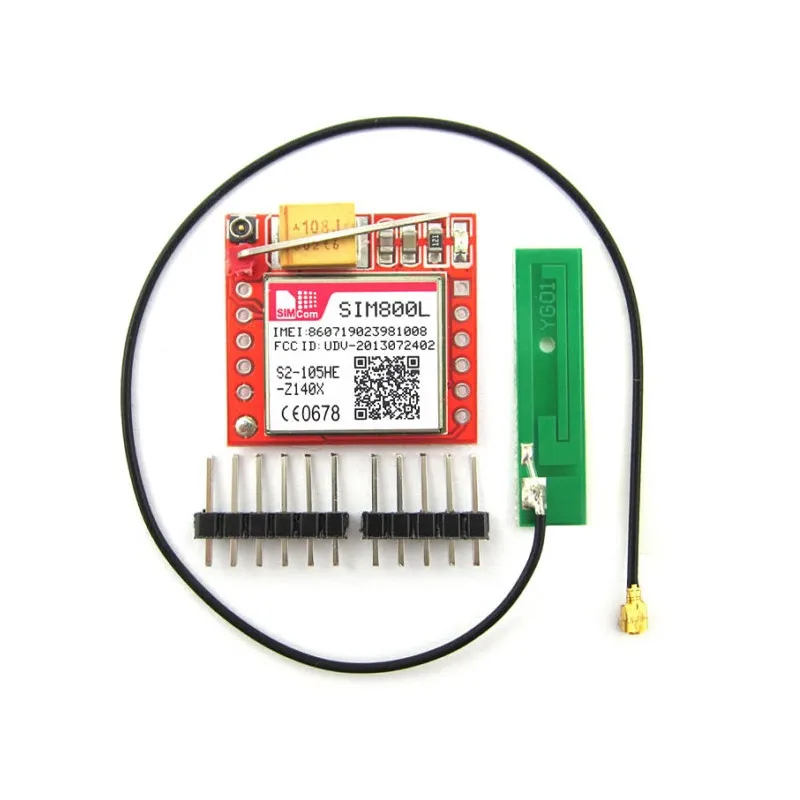

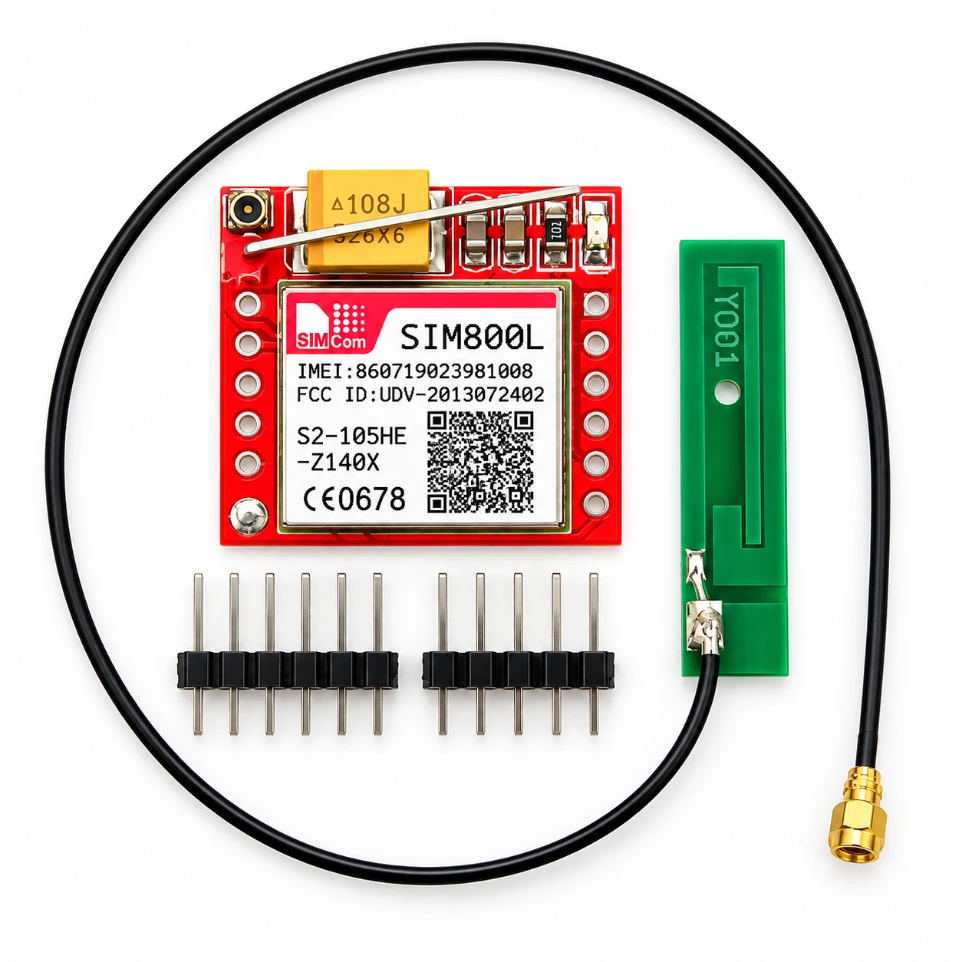

SIM800L GPRS GSM Module Core Board Quad-band TTL Serial Port

Feature	Details
Module Model	SIM800L (L-Series)
Frequency Bands	Quad-band 850/900/1800/1900MHz
Operating Voltage	3.7V to 4.2V (Ideal for Li-ion/Li-Po)
Interface	UART (TTL Level)
SIM Card Type	Micro SIM (Push-slot)
Communication	SMS, Voice, GPRS Data, FM Radio

Price

🚚 Ships within 24 Hours
📦 Pan India Delivery

₹ 322.03

(Tax included)

Barcode: 6015

Product Description: The SIM800L GPRS GSM Module is one of the smallest cellular communication boards available, making it a cornerstone for the IoT and remote monitoring projects at Robogears Pvt Ltd. This module allows your microcontrollers (like Arduino, ESP32, or STM32) to send and receive SMS, make voice calls, and connect to the internet via GPRS. Its ultra-compact form factor is specifically designed for space-constrained applications such as GPS trackers, remote weather stations, and cellular-controlled robots. The board comes with a spring antenna and features a standard TTL serial interface for easy integration.

Key Highlights

Quad-Band Connectivity: Works on all global GSM networks, ensuring your Robogears devices remain connected whether they are in Pimpri or exported globally.
UART Communication: Controlled via standard AT Commands, making it highly compatible with almost any microcontroller through simple TX/RX pins.
Low Power Consumption: Features a dedicated sleep mode, consuming as little as 1mA, which is critical for long-term battery-operated remote sensors.
Built-in Status LED: Includes an onboard LED that blinks at different frequencies to indicate "Searching for Network," "Connected," or "GPRS Active."
Audio Capabilities: Includes pins for a microphone and speaker, allowing for the development of two-way voice communication systems or automated alert calls.

Technical Specifications

GPRS Class: 12/10
Peak Current: Up to 2A (during transmission bursts)
Average Current: ~50mA during active communication
Temperature Range: -40°C to +85°C
Dimensions: 25mm x 23mm (approx.)
Logic Level: 3.3V to 5V (Note: 5V logic requires a level shifter for RX)

Prototyping & Installation Tip (The Power Secret)

Crucial Power Requirement: The most common reason for SIM800L failure at the prototyping stage is insufficient power.

Voltage Range: The module strictly requires 3.7V to 4.2V. Supplying 5V directly from an Arduino will likely damage the module.
Current Spikes: During network handshake, the module draws up to 2 Amperes. A standard USB port or small 9V battery cannot provide this, causing the module to reboot.
The Robogears Solution: Use a high-quality 3.7V Li-ion battery (like an 18650) or an LM2596 Buck Converter set to 4.0V to power the VCC pin independently.

Logic Level Warning: If using a 5V Arduino, use a simple voltage divider (1kΩ and 2kΩ resistors) on the Arduino's TX line to drop the signal to 3.3V before it reaches the SIM800L RX pin to prevent long-term damage.

Note: This product includes the SIM800L Core Board and a Spring Antenna. Micro SIM card is not included. Product images are for illustration purposes only.
