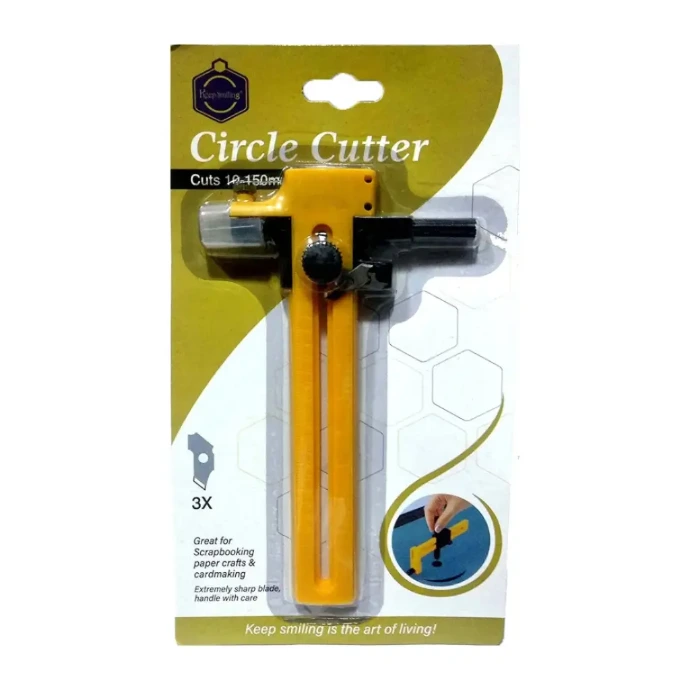

Adjustable Compass Circle Cutter - 1cm to 15cm Rotary Cutter with 3 Spare Blades

Prototyping and Engineering Tips from Robogears

• The "Waste Material" Trick: CRITICAL: When cutting circles in thin materials like paper or vinyl, always place a "sacrificial" piece of cardboard or a cutting mat underneath. This protects your tabletop and ensures the center needle has a firm grip, preventing the tool from slipping mid-cut.

• Multiple Passes: For thicker materials like 2mm rubber or heavy gasket sheets, do not try to cut all the way through in one rotation. Apply light pressure and complete 3 or 4 rotations; this prevents the material from "bunching up" or tearing.

• Protecting the Center: If you are cutting a circle and do not want a needle hole in the middle of your project, place a small piece of Reinforcement Tape or a plastic washer at the center point before placing the needle.

• Blade Maintenance: If you notice the edges of your cut becoming "fuzzy," the blade is dull. Use one of the 3 included replacement blades immediately. A dull blade requires more pressure, which increases the risk of the tool slipping and causing injury.

• Radius vs. Diameter: Remember that the scale on the arm usually measures the Radius. To cut a 100mm (10cm) circle, you must set the slider to the 50mm mark. Always double-check your measurement with a ruler before making the final cut.

Package Includes

• 1 x Adjustable Circle Cutter Tool

• 3 x Replacement Tool-Steel Blades

Disclaimer: Product images are shown for illustrative purposes only. The exact color of the plastic body (typically Yellow/Black/Red) may vary slightly between manufacturing batches, but all technical specifications and the cutting performance standards remain as described.

Safety Warning: Sharp Blade Hazard! This tool contains an extremely sharp blade and a pointed needle. Always use the protective caps when not in use. Keep out of reach of children. Always cut away from your body and keep your free hand clear of the cutting path.
