  4. Single-Sided Zero PCB (2 x 3 Inch) – Universal Prototype Paper Board with Copper Pads for DIY Electronics and Rapid Circuit Assembly
  5. 🟢 Zero PCBs & Copper Clads
Pricelist: Retail Price (B2C) Pricelist
Pricelist: Retail Price (B2C) Pricelist
Single-Sided Zero PCB (2 x 3 Inch) – Universal Prototype Paper Board with Copper Pads for DIY Electronics and Rapid Circuit Assembly

Single-Sided Zero PCB (2 x 3 Inch) – Universal Prototype Paper Board with Copper Pads for DIY Electronics and Rapid Circuit Assembly

ParameterDetailed Specification
Dimensions2 x 3 Inches (Approx. 50mm x 75mm)
Base MaterialHigh-Quality Phenolic (Paper Core) / FR1
Hole PitchStandard 2.54mm (0.1 inch)
LayersSingle-Sided (Copper on one side)
Grid LayoutStandard Dot Matrix
Board Thickness~1.2mm - 1.5mm
                                 Price

🚚 Ships within 24 Hours
📦 Pan India Delivery
₹ 16.95 ₹ 16.95
(Tax included)

Barcode: 761255

Product Description

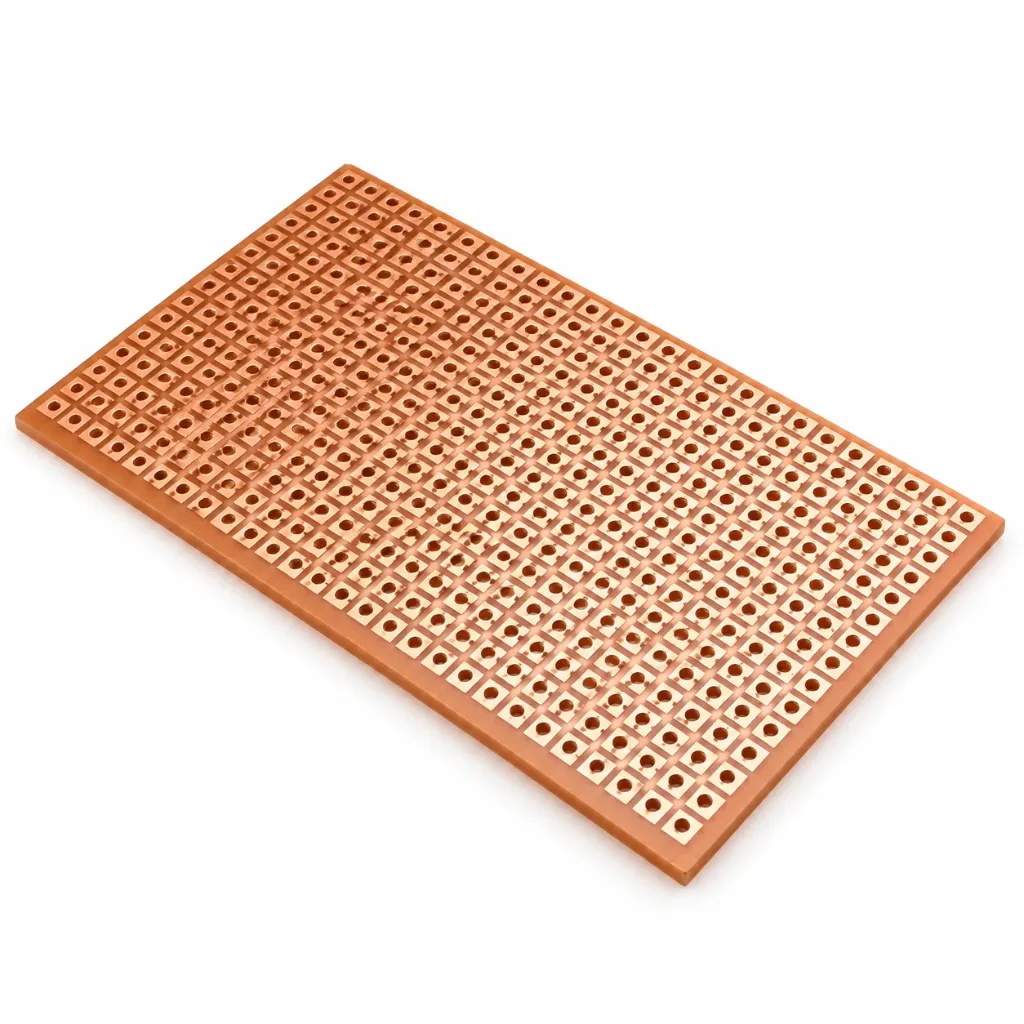

The Single-Sided Zero PCB (2 x 3 Inch) is the industry-standard choice for rapid prototyping and cost-effective circuit development. This "General Purpose Board" features a clean matrix of pre-drilled holes with copper pads on one side only, making it exceptionally easy for beginners and students to learn soldering. Its compact 2x3-inch footprint is perfectly sized for small-scale projects like sensor interfaces, power supply modules, and simple robotics shields. Unlike double-sided boards, the single-sided design simplifies tracing paths and prevents accidental shorts on the component side.

Detailed Key Features

  • Simplified Single-Layer Design: Copper pads are located only on the bottom side, making it easier to visualise and trace circuit paths during point-to-point wiring.

  • Standard 2.54mm Pitch: Fully compatible with common electronic components, including ICs, Transistors, DIP switches, and standard Male/Female headers.

  • Phenolic Resin Base: Lightweight and easy to trim, this material provides good insulation properties for low-to-medium power electronics.

  • Pre-Drilled Precision: Features clean, machine-drilled holes that allow components to slide in without resistance, reducing lead damage.

  • Flux-Friendly Surface: The copper pads are designed to accept solder easily, ensuring strong mechanical bonds and consistent electrical conductivity.

All Technical Details

  • Copper Thickness: Standard 35µm (1 oz) copper layer for reliable current carrying capacity.

  • Point-to-Point Flexibility: Designed for "Zero" connectivity, giving you total freedom to bridge pads using solder or jumper wires.

  • Hole Density: Features a high-density grid allowing for complex circuit layouts in a small 50mm x 75mm area.

  • Ease of Modification: The single-sided copper layer is ideal for hobbyists who frequently desolder or move components during the prototyping phase.

  • Compatibility: Works seamlessly with all standard soldering irons and lead/lead-free solder alloys.

Prototyping & Engineering Tips (Robogears Exclusive)

  • Efficient Bridging: To create "traces" on a single-sided board, use the excess leads of resistors or capacitors to bridge adjacent pads. This creates a much cleaner circuit than using thick solder blobs.

  • Component Placement: Insert all components from the non-copper (plain) side and solder them on the copper side. This prevents the heat of the soldering iron from potentially lifting the components off the board.

  • Trimming to Fit: If your Pimpri facility requires a custom shape, phenolic boards are easier to cut than FR4. You can use a standard pair of heavy-duty snips or a hacksaw to trim the board to any specific dimension.

  • Cleaning Pads: If the board has been in storage, the copper may oxidise slightly. Use a simple pencil eraser to rub the pads before soldering to ensure an instant, shiny solder joint.

Package Includes

  • 1 x Single-Sided Zero PCB Prototype Board (2 x 3 Inch)

Image Disclaimer

Image shown is for illustrative purposes only; the actual product may vary slightly in shade (Brownish/Orange) or hole count due to manufacturing updates, though all technical specifications will remain as described.

🔒
