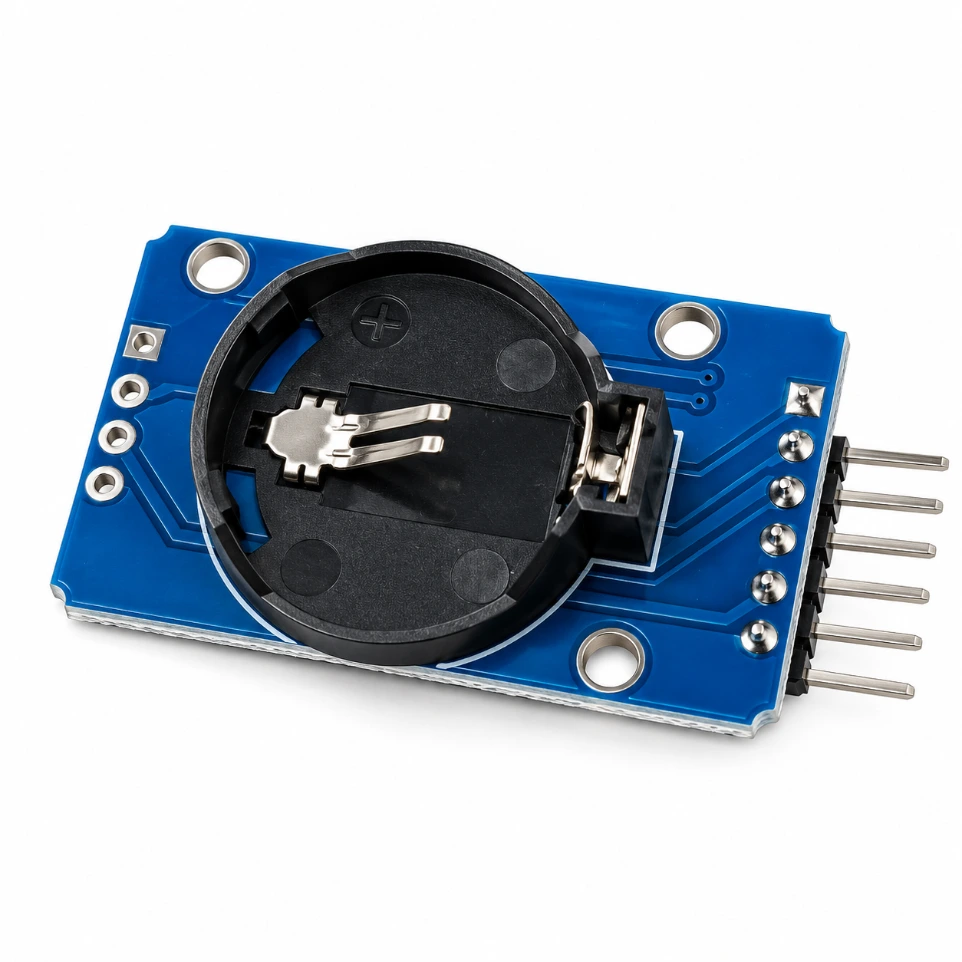

DS3231 Precision RTC Module – High-Accuracy I2C Real-Time Clock with AT24C32 EEPROM

Product Description The DS3231 is a low-cost, extremely accurate I2C real-time clock (RTC) with an integrated temperature-compensated crystal oscillator (TCXO) and crystal. Unlike standard RTC modules, the DS3231 incorporates the resonant crystal inside the chip itself and adjusts for frequency drift caused by temperature changes, maintaining an accuracy of ±2 minutes per year. This module also features an integrated AT24C32 32K-bit EEPROM for non-volatile data storage. It is the gold standard for time-critical applications such as data loggers, industrial timers, and attendance systems where high-precision timekeeping is required even during primary power loss.

Key Features

• Temperature Compensation: Automatically adjusts the internal oscillator to counter frequency drift, ensuring superior long-term accuracy.

• Integrated EEPROM: Includes an AT24C32 chip providing 32K bits of memory to store logs, user settings, or schedules.

• Dual Power Support: Designed with a battery backup slot (CR2032) to maintain time for years without external power.

• Built-in Digital Temp Sensor: Provides ambient temperature data via the I2C interface with a resolution of 0.25°C.

• Programmable Alarms: Features two time-of-day alarms and a configurable square-wave output signal for external interrupts.

Technical Details

• Timekeeping Precision: Maintains ±2ppm accuracy from 0°C to +40°C, and ±3.5ppm from -40°C to +85°C.

• Battery Charging Circuit: The module includes a simple charging circuit for LIR2032 rechargeable batteries (requires modification for standard CR2032).

• I2C Bus Compatibility: Operates on the standard I2C bus with a default address of 0x68 for the RTC and 0x57 for the EEPROM.

• Calendar Accuracy: Handles leap year compensation and valid up to the year 2100 with accurate day-of-the-week tracking.

• High-Speed Interface: Supports I2C fast mode up to 400kHz, allowing for rapid time and data retrieval.

• Power Supply Independence: Automatically switches to the backup battery supply when the primary VCC drops below a threshold.

• Integrated Crystal: The internal 32.768kHz crystal is vacuum-sealed and shielded from external electromagnetic interference (EMI).

• Aging Offset Register: Allows users to manually trim the oscillator frequency to compensate for long-term component aging.

• Logic Level Compatibility: On-board pull-up resistors and level compatibility allow it to work with 3.3V ESP32 and 5V Arduino boards.

• Square Wave Output: Can be programmed to output 1Hz, 1.024kHz, 4.096kHz, or 8.192kHz signals for synchronization.

• EEPROM Durability: The AT24C32 supports over 1,000,000 write cycles and 100-year data retention.

• Reset Function: Includes a debounced manual reset input pin to simplify system-level hardware resets.

• Low Power Draw: Consumes less than 3.0µA in battery-backup mode while maintaining full timekeeping functionality.

• PCB Build: High-quality dual-layer PCB with gold-plated holes and clear silk-screen labeling for all I2C and power pins.

• Status Monitoring: The OSF (Oscillator Stop Flag) bit informs the system if t
