🔹 Technical Product Description
The 6V–12V Mini Transparent Air Pump is a compact DC-powered diaphragm air pump designed for DIY electronics, embedded systems, robotics, and laboratory demonstration projects. The pump operates within a wide DC voltage range of 6V to 12V, allowing flexible integration with battery packs, DC adapters, and regulated power supplies.

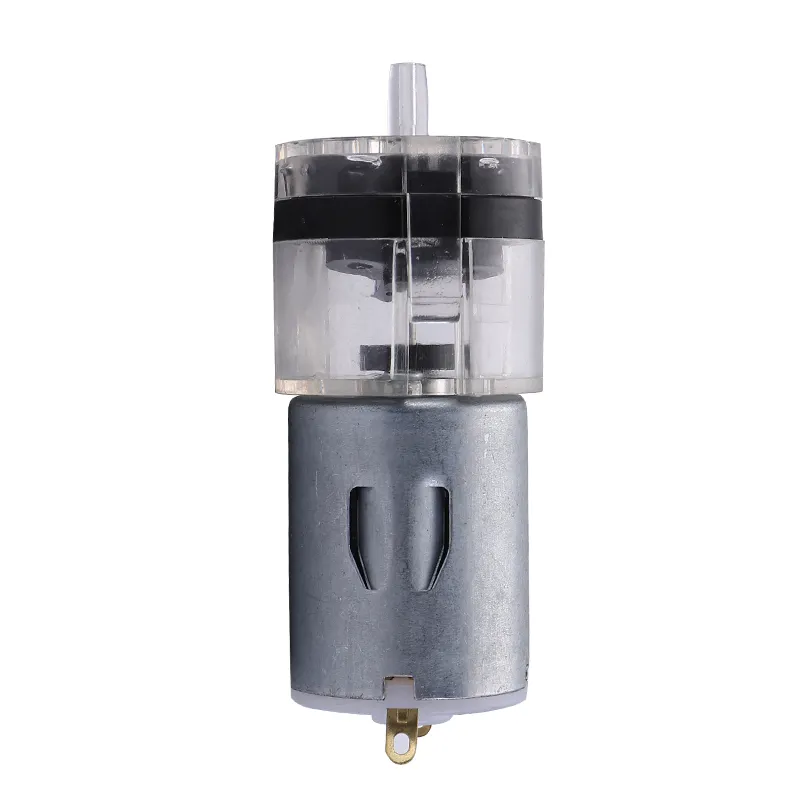

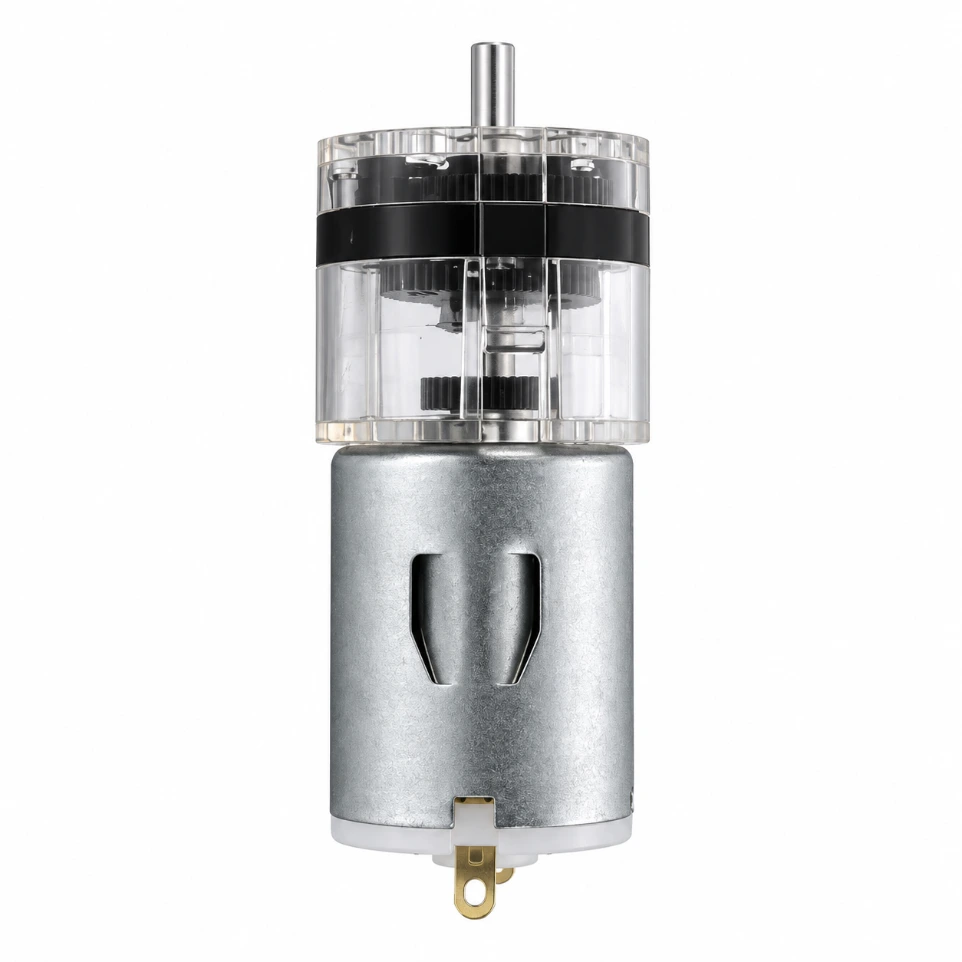

This pump features a transparent plastic housing, enabling visual inspection of the internal diaphragm and motor operation. This makes it especially suitable for educational, experimental, and prototype development environments where functional visibility is required.
The internal DC motor drives a diaphragm mechanism to generate consistent airflow. Due to its compact size and low power consumption, the pump is suitable for portable and space-constrained systems. It can be controlled using a relay module, MOSFET, transistor switch, or motor driver when interfaced with microcontrollers such as Arduino, ESP32, Raspberry Pi, or STM32.
🔹 Key Technical Features
✔ DC operating range: 6V to 12V
✔ Diaphragm-based air pumping mechanism
✔ Transparent housing for internal observation
✔ Compact and lightweight construction
✔ Suitable for continuous or pulsed operation
✔ Compatible with microcontroller control circuits
✔ Low maintenance design
🔹 Electrical & Mechanical Specifications
| Specification | Value |
|---|
| Operating Voltage | 6V – 12V DC |
| Rated Voltage | 12V DC |
| Pump Mechanism | Diaphragm Type |
| Pump Medium | Air |
| Housing Material | Transparent Plastic |
| Motor Type | Brushed DC Motor |
| Control Method | Direct DC / External Driver |
| Mounting Type | External / Project Mount |
| Cooling | Air-cooled |
🔹 Typical Applications
Embedded system and microcontroller projects
Robotics and automation prototypes
Educational demonstrations and lab models
Air circulation and pressure testing (small scale)
Medical equipment prototypes (non-clinical)
DIY pneumatic experiments
🔹 Integration & Usage Notes
⚠️ Use a regulated DC power supply within the specified voltage range
⚠️ Do not block the air inlet or outlet during operation
⚠️ For MCU control, use a MOSFET or relay module
⚠️ Avoid exposure to moisture or liquid ingress
⚠️ Not intended for continuous industrial or medical use
