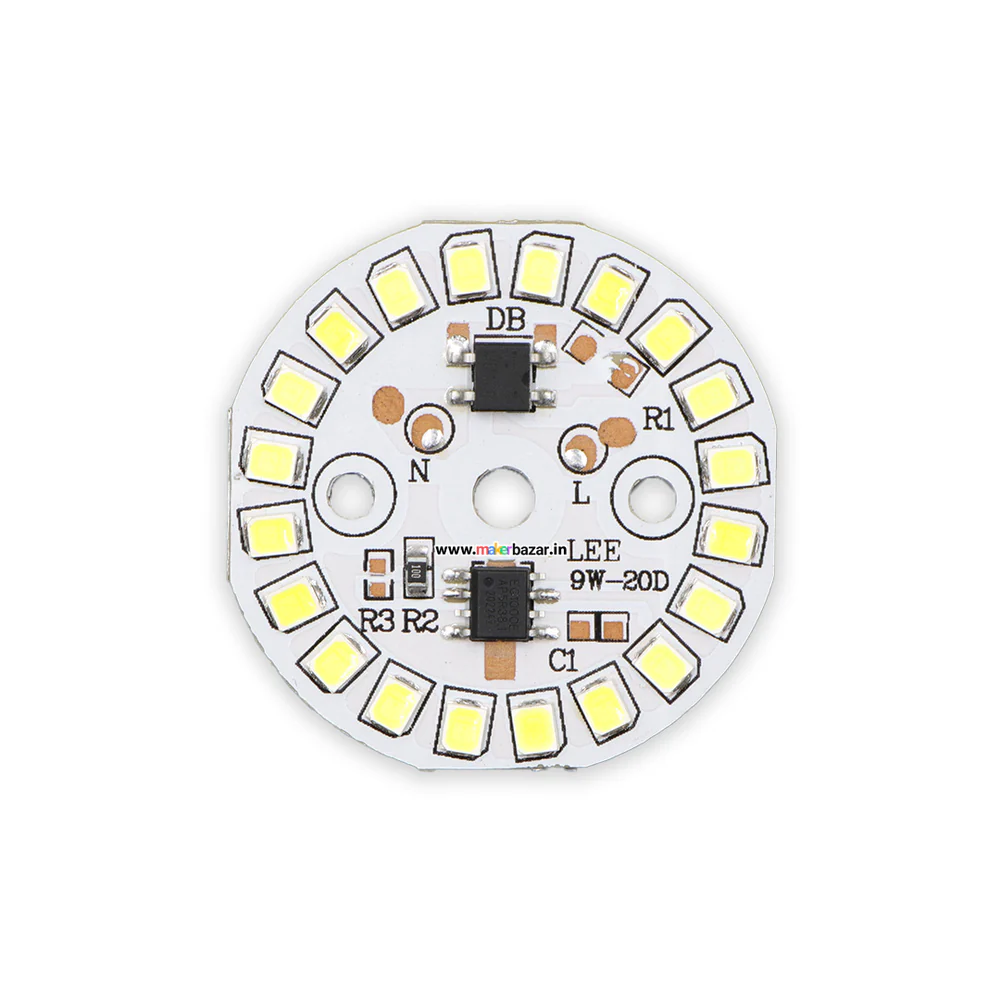

9 Watt 20 LEDs AC DOB LED Circular PCB (Warm White)

Specification	Details
Power Rating	9 Watts
LED Count	20 High-Lumen SMD LEDs
Input Voltage	220V - 240V AC
Technology	DOB (Driver-on-Board)
Light Color	Warm White (~3000K)
Board Shape	Circular (Standard Bulb Fit)
PCB Material	Aluminum Core (MCPCB)

Price

🚚 Ships within 24 Hours
📦 Pan India Delivery

₹ 16.95

(Tax included)

Barcode: 904610

Product Description

The 9 Watt 20 LEDs AC DOB LED Circular PCB (Warm White) is an integrated lighting solution designed for the assembly and repair of energy-efficient LED bulbs. Utilizing Driver-on-Board (DOB) technology, this module incorporates the AC-to-DC rectification and constant-current regulation circuitry directly onto the aluminum substrate. This eliminates the need for an external plastic-housed driver, allowing for more compact bulb designs and simplified manufacturing. Featuring 20 premium SMD LEDs, this board emits a cozy, "Warm White" glow, making it the perfect choice for living rooms, bedrooms, and hospitality environments where a soft, relaxing ambiance is desired.

Key Features

Integrated AC Drive: Connects directly to 230V AC mains without an external driver, reducing the bill of materials and assembly complexity.
Warm White Spectrum: Delivers a yellowish-white light (~3000K) that mimics traditional incandescent bulbs, ideal for indoor residential lighting.
Aluminum MCPCB Base: The high-thermal-conductivity aluminum core ensures efficient heat dissipation from the LEDs to the bulb housing.
Uniform Light Distribution: The circular arrangement of 20 SMD LEDs provides a wide, consistent beam angle to eliminate dark spots in the bulb globe.
Compact Footprint: Standardized diameter designed to fit perfectly into 9W B22 or E27 LED bulb shells.

Technical Details

Onboard Circuitry: Includes bridge rectifier, linear driver IC, and surface-mount resistors.
Connection Terminals: Clearly marked "L" (Live) and "N" (Neutral) for safe AC wiring.
Operating Frequency: 50Hz / 60Hz.

Prototyping and Engineering Tips from Robogears

Thermal Interface is Vital: CRITICAL: While the PCB is aluminum, it cannot dissipate 9W of heat on its own. You MUST apply a thin layer of Thermal Paste or use a thermal adhesive pad between this PCB and the metal heatsink of the bulb housing. Failure to do so will cause the LEDs to "burn out" or dim significantly within a few hours of operation.
High Voltage Safety: This board operates at 230V AC. When soldering wires to the "L" and "N" pads, ensure there are no "cold joints" or stray strands. A single loose wire touching the aluminum edge or the bulb's metal body will cause a short circuit or an electrical shock hazard.
Surge Protection Add-on: DOB modules are sensitive to voltage spikes on the AC line. For industrial or rural areas with unstable power, we recommend adding a MOV (Metal Oxide Varistor) across the L and N lines and a Fuse Resistor in series to protect the onboard IC from premature failure.
Diffuser Choice: Warm white LEDs appear best behind a high-quality frosted diffuser. This helps blend the 20 individual light points into a single, soft glow, enhancing the aesthetic of the lamp.
Non-Dimmable Warning: Most linear DOB ICs are not compatible with standard wall dimmers. Using a dimmer will cause the light to flicker or may permanently damage the internal regulation circuitry.

Package Includes

1 x 9 Watt 20 LEDs AC DOB LED Circular PCB (Warm White)

Disclaimer: This product operates at lethal 230V AC voltages. It should only be installed by individuals with technical knowledge of electrical safety. Always ensure the device is housed in a non-conductive enclosure or is properly earthed before applying power. Do not touch any part of the PCB while it is connected to the mains.
