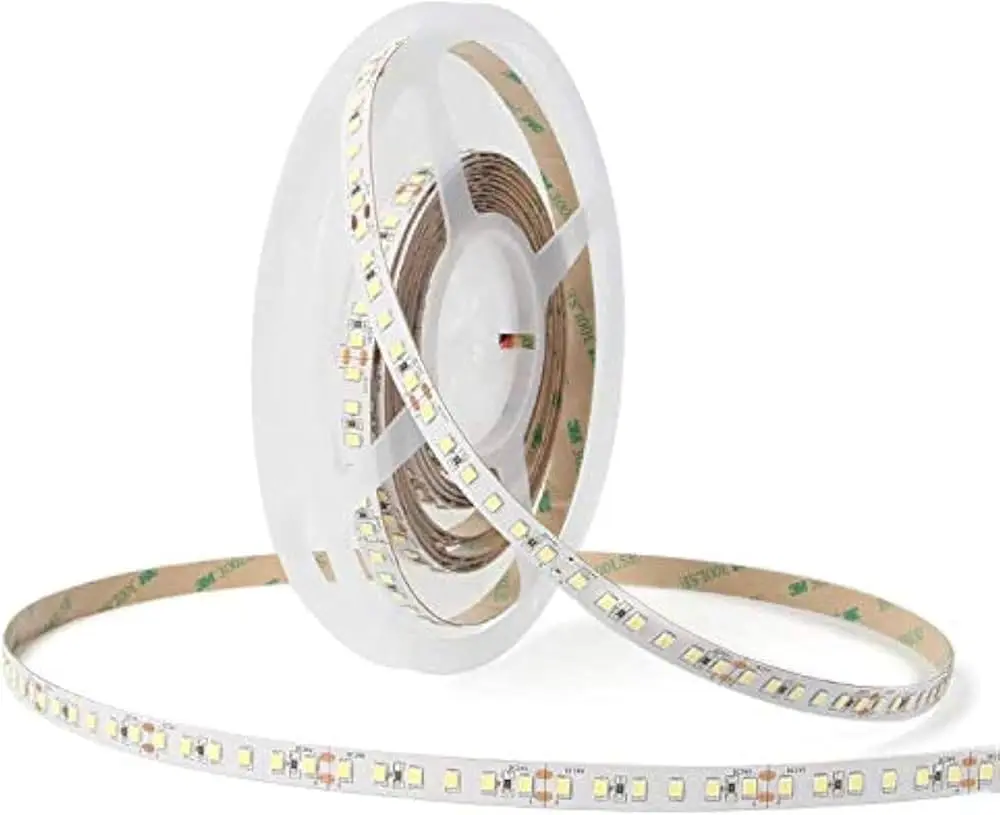

12V White LED Strip 4040 SMD 5mm Ultra-Slim Flexible Light Roll

12V White LED Strip 4040 SMD 5mm Ultra-Slim Flexible Light Roll

(0 review)
ComponentSpecification
LED Type4040 SMD (High Efficiency)
Strip Width5mm (Ultra-Slim)
ColorCool White (6000K - 6500K)
Operating Voltage12V DC
LED DensityHigh Density (Standard 120 LEDs/m)
Cutting PointEvery 3 LEDs
BackingHigh-Bond Self-Adhesive Tape
Price
₹ 93.22 ₹ 93.22
(Tax included)

Product Description The 12V White 4040 LED Strip is a high-performance lighting solution that combines powerful illumination with an ultra-slim 5mm profile. Using advanced 4040 SMD chips, this strip provides a bright, crisp cool white light while remaining narrow enough to fit into tight architectural gaps, slim aluminum channels, and internal robot cavities. It is the perfect choice for professional accent lighting, display case illumination, and high-visibility task lighting where a standard 10mm strip is too wide.

Key Features

  • Ultra-Slim 5mm PCB: Specifically designed for discreet placement in narrow spaces.

  • Brilliant Cool White: Delivers a clean, daylight-style light (6000K+) for maximum clarity and visibility.

  • Advanced 4040 SMDs: High-efficiency LEDs offer superior brightness and longevity compared to older SMD types.

  • Flexible & Versatile: Easily contours to curved surfaces and can be cut at regular intervals for custom sizing.

  • Secure Mounting: Features a strong adhesive backing for quick installation on most smooth, clean surfaces.

Technical Details

  • Voltage: 12V DC (Regulated power supply required)

  • Waterproof Rating: IP20 (Indoor use recommended)

  • Viewing Angle: 120°

  • Operating Temp: -20°C to +60°C

Prototyping and Engineering Tips from Robogears

  • Daylight Task Lighting: The cool white color temperature is ideal for workstations or internal lighting for mobile robots where high-contrast visibility is needed to identify components.

  • Powering the Roll: For a full 5-meter roll, we recommend a 12V 5A power supply. For shorter lengths, calculate roughly 1A per meter of strip to ensure the LEDs operate at peak brightness.

  • Heat Dissipation: To maximize the lifespan of the 4040 chips, mount the strip on a metallic surface (like an aluminum bracket). This helps pull heat away from the PCB.

  • Precision Control: These strips are fully dimmable. Use a Logic-Level MOSFET (like the IRFZ44N) with your microcontroller’s PWM pin to adjust the light intensity from 0% to 100%.

Package Includes

  • 1 x 5-Meter Roll (5mm Width) Cool White 4040 LED Strip

Disclaimer Images are for reference; actual color temperature may vary slightly by production batch. DO NOT connect directly to 220V AC mains; a 12V DC adapter is required. Verify polarity (+ and -) before connecting to power.
