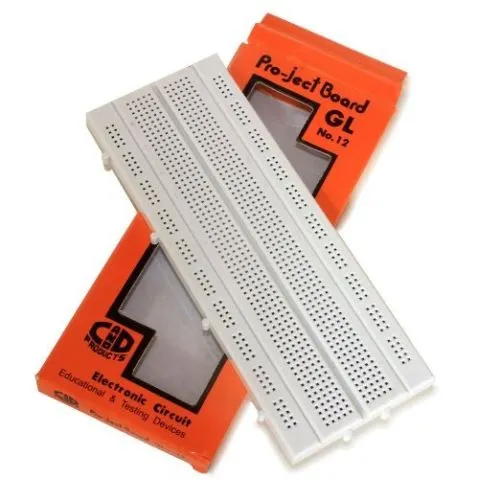

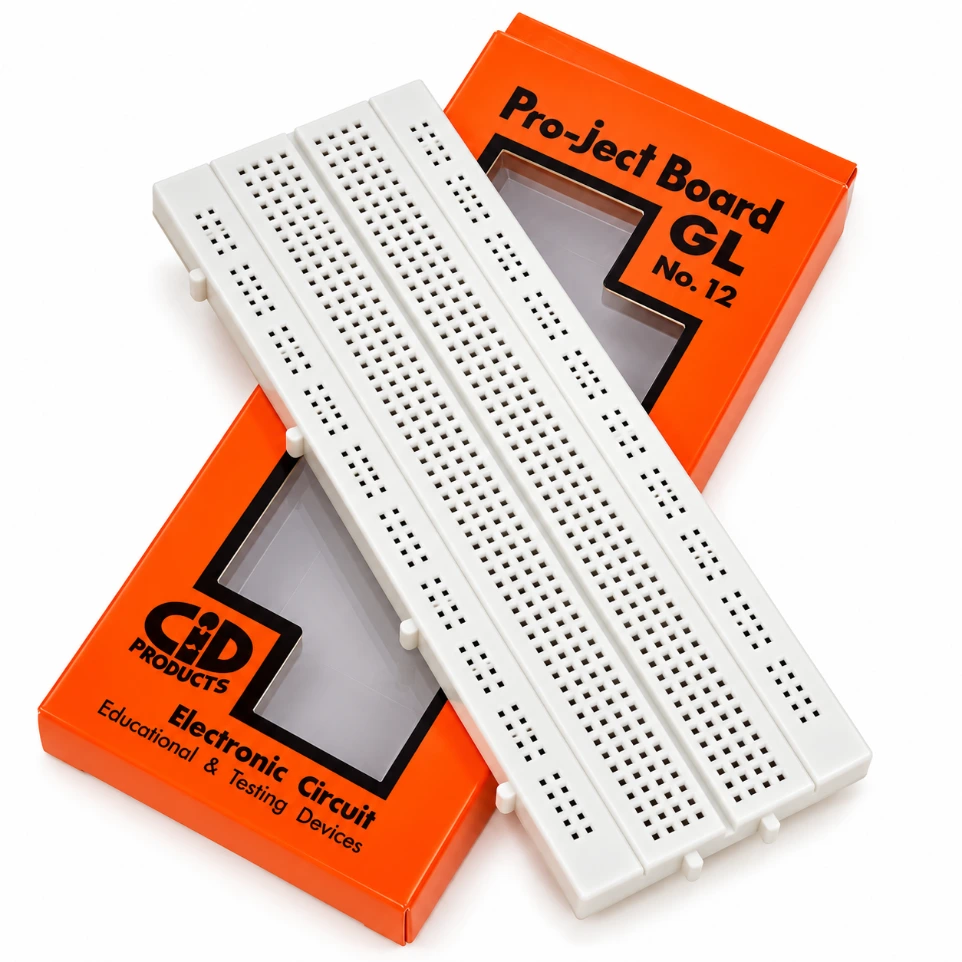

The Ultimate Canvas for Your Electronic Creations
The 840 Tie-Point Solderless Breadboard is the essential foundation for any Robogears DIY project. Designed for makers, students, and engineers alike, this full-size breadboard allows you to build, test, and modify circuits in seconds without ever picking up a soldering iron. Whether you're experimenting with an Arduino, testing a new sensor, or building a complex logic gate system, this breadboard provides the reliable connectivity you need.
Smart Design for Rapid Prototyping
With 840 tie points, including two double-strip power buses on each side, you have ample space for large-scale projects. The internal spring clips are made of high-quality nickel-plated phosphor bronze, ensuring a firm grip on jumper wires and component leads (20-29 AWG). The board features a standard 2.54mm hole spacing, making it perfectly compatible with ICs, transistors, LEDs, and virtually all standard electronic components.
Expandable & Convenient
Need more space? These breadboards feature interlocking "tongue and groove" sides, allowing you to snap multiple boards together to create a massive prototyping surface. The back is equipped with a strong self-adhesive tape, making it easy to mount permanently onto a robot chassis or a project baseplate.
Key Highlights:
Zero Soldering Required: Change connections instantly for rapid trial and error.
Full-Size Capacity: 840 points offer plenty of room for microcontrollers and multiple modules.
Organized Power Rails: Dedicated red and blue marked lanes for easy VCC and GND management.
Component Safety: Non-destructive testing ensures your expensive sensors and ICs remain in perfect condition for reuse.
Technical Specifications
Model: GL-12 / Full-Size Solderless Breadboard
Tie Points: 840 (640 in the component area + 200 in power rails)
Body Material: ABS Plastic (White/Cream)
Internal Contacts: Nickel-plated phosphor bronze clips
Contact Life: >10,000 insertions
Acceptable Wire Size: 20-29 AWG (0.3mm to 0.8mm)
Voltage Rating: 300V
Current Rating: 3A – 5A
Dimensions: 170mm (L) x 64mm (W) x 8.5mm (H)
Weight: ~82 Grams
Usage Tip: For the best experience, use pre-cut U-shaped jumper wires or high-quality male-to-male DuPont wires to keep your circuit organized and easy to troubleshoot.
