2WD Obstacle Avoiding Robot Kit - DIY Ultrasonic Robotic Project

🟢 Beginner Friendly

⏱ 60–90 Minutes

💻 No Programming Required

⚡ Pre-Programmed Arduino Included

🔧 Assemble & Connect

🤖 Ready to Run

What Is This Product?

The 2WD Obstacle Avoiding Robot DIY Kit is an educational autonomous robotics project designed to help students and beginners understand how a robot can detect objects in front of it and react without continuous human control.

The robot uses an HC-SR04 ultrasonic distance sensor to detect nearby obstacles. An Arduino-compatible controller processes the distance information and controls two geared motors through a motor-driver circuit. When the programmed detection threshold is reached, the robot can stop and change its direction instead of continuing into the obstacle.

The platform uses a transparent acrylic chassis with two driven wheels and a supporting castor wheel, creating a simple 2WD differential-drive robot.

For the RoboGears kit configuration supplied with an Arduino controller, the Arduino is provided pre-programmed/ready programmed unless otherwise stated, allowing beginners to concentrate first on assembly, wiring and understanding how the system works.

What Can You Build / Learn With It?

This kit lets you build an autonomous 2WD obstacle-avoiding robot capable of detecting objects in its path and responding through programmed motor movement.

During the project, students can learn:

• Ultrasonic distance measurement
• Arduino-based decision making
• Autonomous robot navigation
• DC geared motor control
• H-bridge motor driving
• 2WD differential steering
• Sensor-to-controller communication
• Basic embedded programming concepts
• Mechanical robot assembly
• Power management in robotics
• Input → Processing → Output logic

The RoboGears product page specifically positions the kit as an educational platform for autonomous robotics and embedded programming.

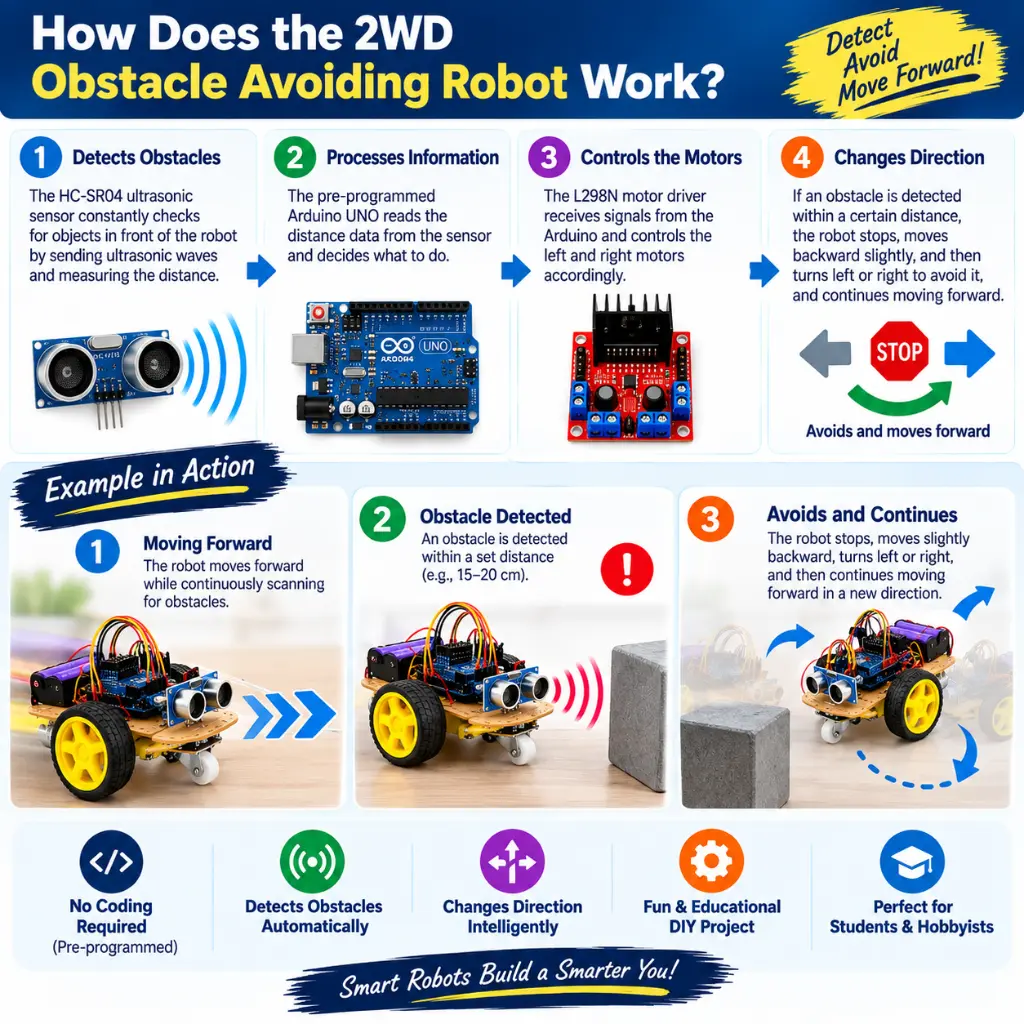

How Does the Robot Work?

The basic system follows:

HC-SR04 Ultrasonic Sensor → Arduino → Motor Driver → BO Motors → Robot Movement

The HC-SR04 sends ultrasonic pulses and measures the reflected signal to estimate the distance of an object.

When the path is clear, the Arduino commands the motor driver to operate the two motors according to the programmed movement logic.

When an obstacle comes within the programmed detection distance, the Arduino can stop or alter the motors' direction so the robot can move away from the obstruction and continue travelling. This sensor-controller-motor architecture is widely used for beginner Arduino obstacle-avoidance robots.

Why This Kit?

• Builds a working autonomous mobile robot
• Pre-programmed Arduino configuration available from RoboGears
• HC-SR04 non-contact ultrasonic obstacle detection
• Two geared BO motors
• 2WD differential-drive platform
• Transparent acrylic chassis
• Motor-driver based direction control
• Excellent introduction to Arduino robotics
• Components can be reused for future projects
• Expandable with additional sensors and modules
• Suitable for STEM workshops
• Useful for school and college projects
• Hands-on electronics + mechanical assembly experience

The acrylic chassis also provides mounting space that can be used for future additions such as IR sensors, Bluetooth modules and displays.

Key Features

• 2WD autonomous robotic platform
• Arduino UNO compatible
• Pre-programmed Arduino when included in the RoboGears kit configuration
• HC-SR04 ultrasonic distance sensor
• L298N/L293D motor-driver support
• Dual 3V–6V BO geared motors
• Two high-grip drive wheels
• Universal castor support wheel
• Transparent acrylic chassis
• Approximately 3mm chassis thickness
• Approx. 200 × 150mm assembled footprint
• 4×AA / 2×18650 power configuration support
• Expandable robotics platform
• Suitable for beginners and students

Technical Specifications

Controller

Obstacle Detection

The current RoboGears listing identifies the HC-SR04 as the obstacle sensor and describes detection up to 4 metres. Real-world reliable detection varies with object size, shape, orientation, surface and environment.

Drive System

Mechanical

Power

These mechanical, motor and power details are specified on the current RoboGears listing.

Compatibility & Requirements

Compatible With

• Arduino UNO-compatible boards
• HC-SR04 ultrasonic sensor
• L298N motor driver
• L293D-based motor-control configurations
• BO/TT-style geared motors
• Arduino IDE
• 2WD robot chassis projects

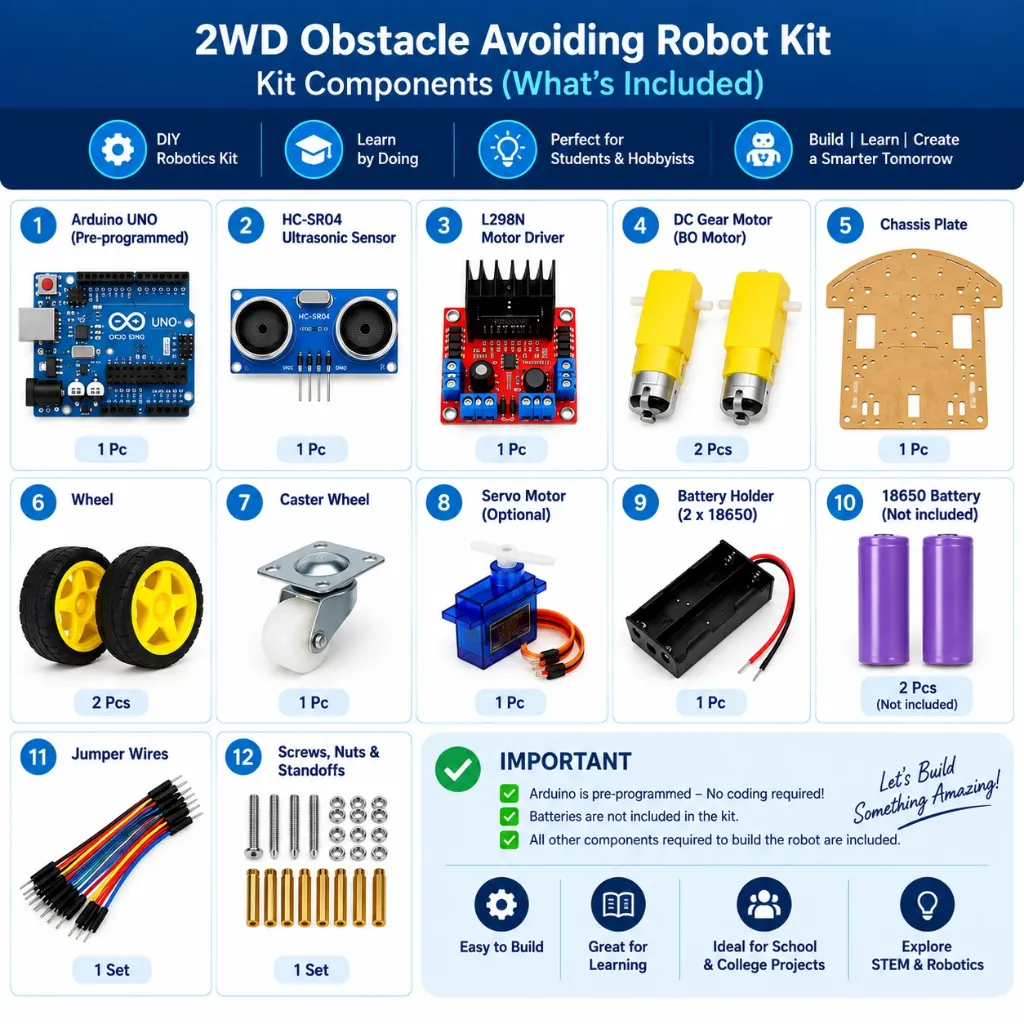

Required for a Complete Working Robot

A conventional Arduino obstacle-avoiding robot requires:

• Arduino-compatible controller
• HC-SR04 ultrasonic sensor
• Motor driver
• Two geared motors
• Two wheels
• Castor wheel
• Chassis
• Battery/power source
• Connecting wires
• Assembly hardware

Programming

When RoboGears supplies the Arduino with this project configuration, it is pre-programmed/ready programmed unless otherwise specified.

Therefore, programming is not required simply to get the supplied project running after correct assembly and wiring.

The controller can later be reprogrammed through the Arduino IDE for learning, experimentation and different navigation behaviour.

⚠️ Important Package Configuration Note

The current RoboGears webpage contains a package-content inconsistency that should be corrected before publishing this revised description.

The top specification states:

“Arduino UNO Compatible (Pre-Programmed)”

but the existing package/disclaimer section says that the microcontroller and motor driver may be sold separately or included only in an expanded bundle.

Because the L3 standard requires exact package contents and prohibits inventing included components, the final package table should match the actual SKU you physically ship.

Applications

• School robotics projects
• STEM education
• Science exhibitions
• Arduino training
• College mini-projects
• Robotics workshops
• Autonomous navigation demonstrations
• Embedded-system learning
• Ultrasonic sensor experiments
• Motor-driver learning
• DIY electronics
• Beginner robotics training

Getting Started

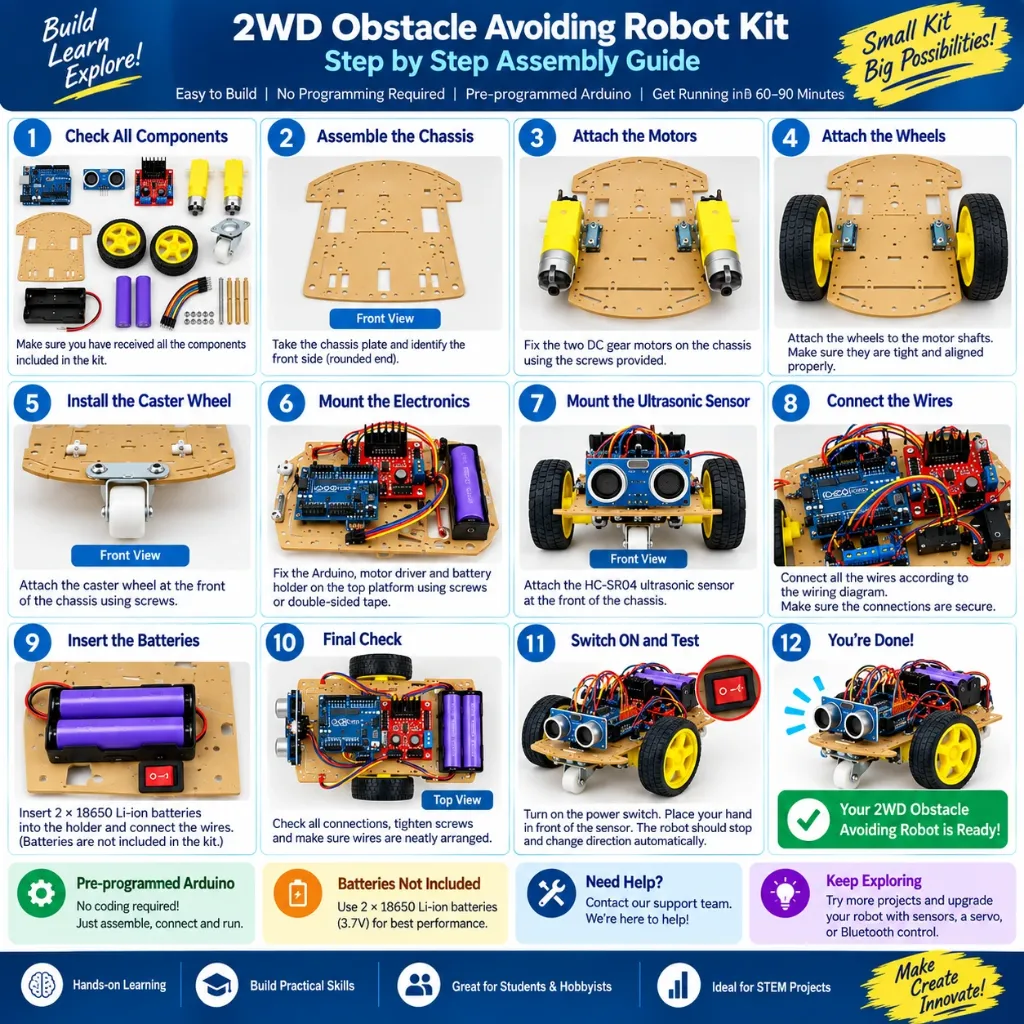

Step 1 — Identify the Components

Before assembly, identify the chassis, motors, wheels, castor, HC-SR04, controller, motor driver, battery system, wiring and mounting hardware applicable to your kit configuration.

Step 2 — Assemble the Chassis

Secure both geared motors to the acrylic chassis using the supplied brackets/hardware.

Install one wheel on each motor shaft.

Mount the castor wheel so the chassis forms a stable three-point support system.

Step 3 — Install the Controller & Motor Driver

Mount the Arduino and motor driver securely while preventing the underside of either PCB from touching conductive objects.

Step 4 — Mount the Ultrasonic Sensor

Install the HC-SR04 toward the front of the robot using its mounting bracket.

Keep its ultrasonic transmitter and receiver unobstructed.

Step 5 — Connect the Motors

Connect the two motors to the appropriate motor-driver outputs.

Step 6 — Connect the Controller

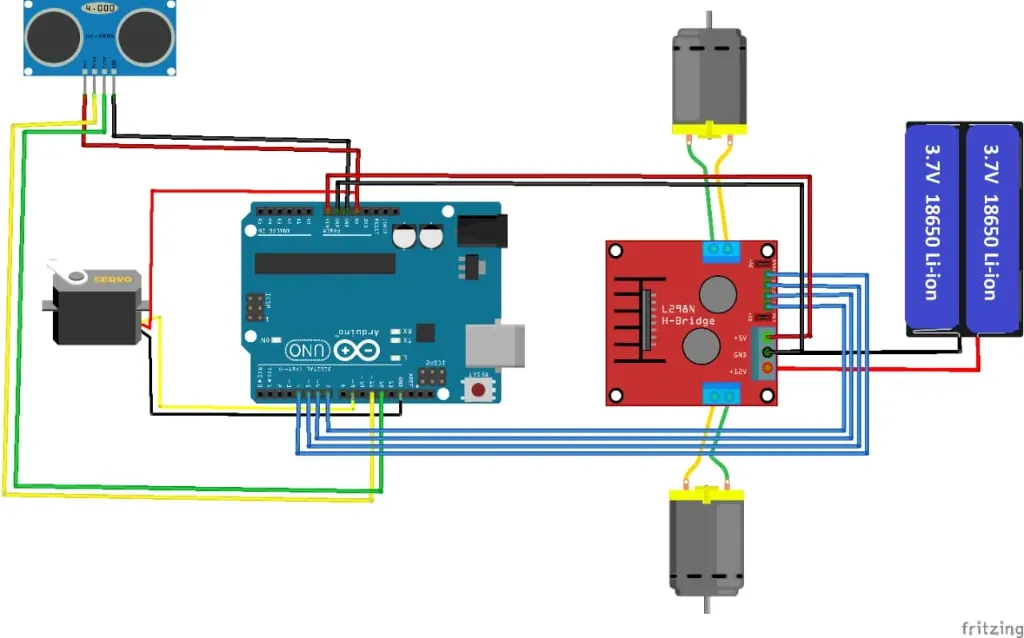

Connect the motor-driver control inputs to the Arduino according to the wiring diagram/code supplied for the RoboGears project.

Step 7 — Connect the HC-SR04

The HC-SR04 uses:

• VCC
• GND
• TRIG
• ECHO

Connect these according to the supplied RoboGears wiring diagram/code. Do not guess pin numbers, because they must correspond to the pre-programmed sketch.

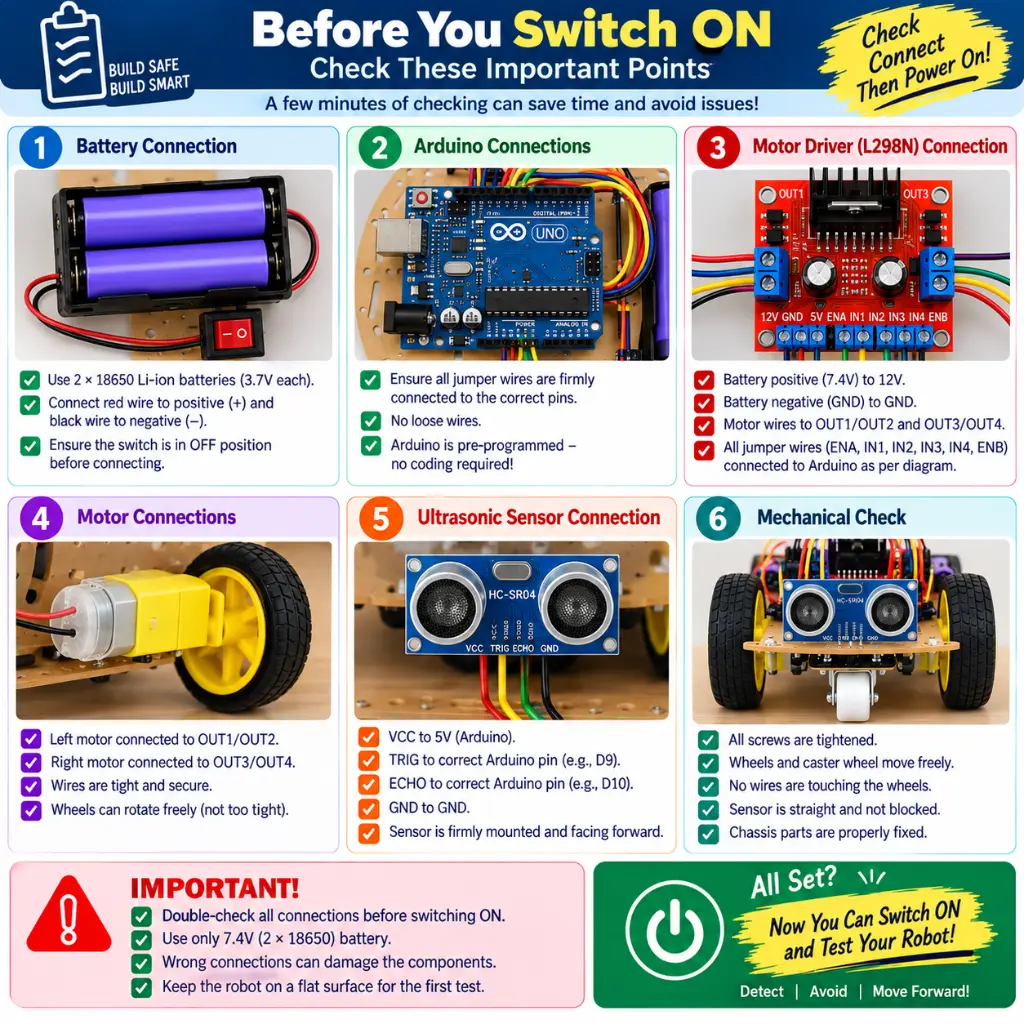

Step 8 — Connect Power

Install/connect the appropriate battery system and verify polarity before applying power.

Step 9 — Inspect Everything

Check:

• Power polarity
• Common ground
• Motor connections
• Sensor wiring
• Controller wiring
• Loose connections
• Mechanical mounting
• Wheel movement

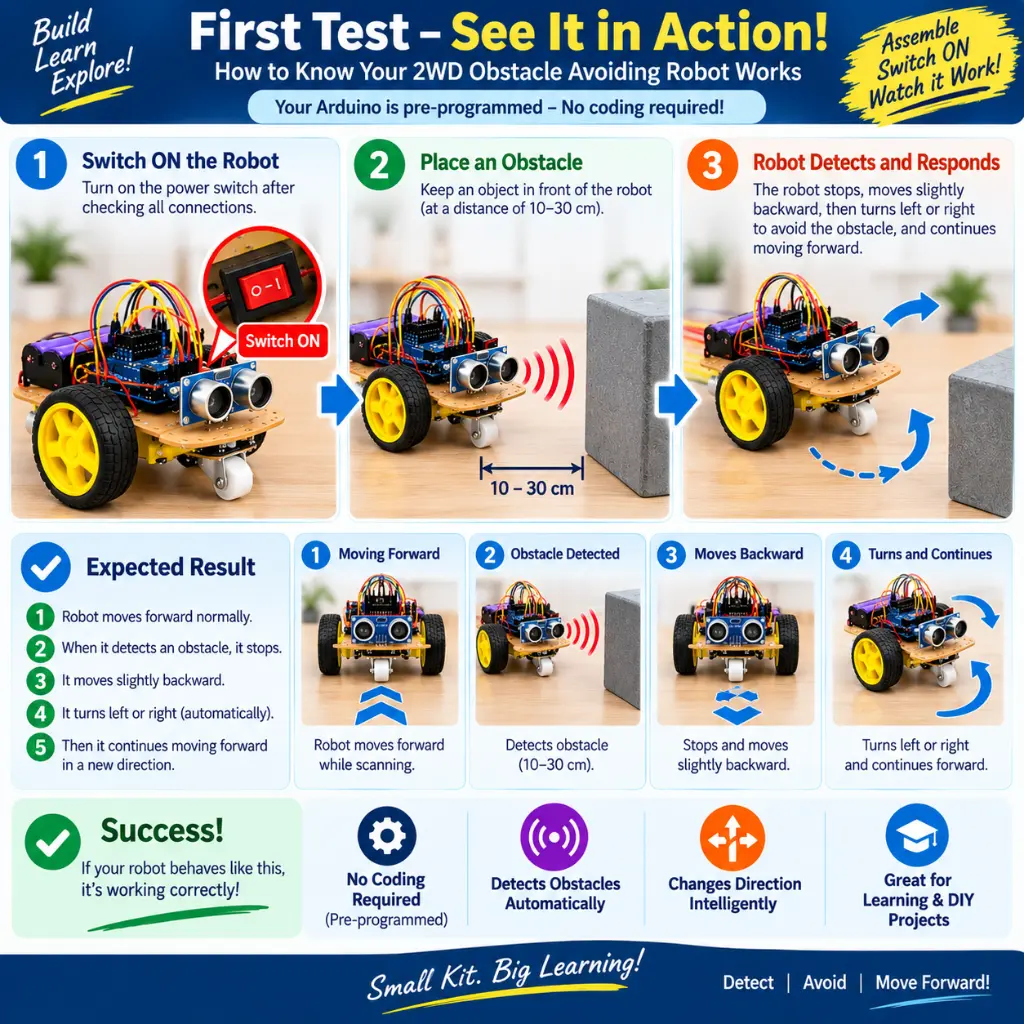

Step 10 — Test

Place the robot on a clear, flat floor.

Start at a safe distance from obstacles and confirm forward movement first. Then introduce a large, flat object in front of the sensor and observe the robot's programmed avoidance behaviour.

🔧 Prototyping and Engineering Tips from RoboGears

1. Confirm basic motor movement first. Before troubleshooting the ultrasonic sensor, make sure both motors can move the robot forward and turn correctly.
2. Keep a common ground. The Arduino/controller and motor-driver system need the appropriate common reference for reliable control. A common-ground connection is also shown in conventional Arduino/L298N obstacle-avoiding robot designs.
3. Mount the HC-SR04 at the front. Chassis parts directly in front of the sensor can interfere with useful measurements.
4. Use a large flat object for initial testing. Ultrasonic sensors can detect a flat wall or box more reliably than a thin or angled object.
5. Secure all jumper wires. Robot vibration can cause intermittent connections.
6. Keep the battery close to the centre/drive wheels. Good weight distribution improves traction and steering behaviour.
7. Motor noise can affect the controller. Good power wiring and supply decoupling can help prevent unwanted Arduino resets.
8. Test with the supplied program before modifying it. Confirm that the mechanical and electrical system works before changing the Arduino sketch.
9. Do not assume the HC-SR04 will detect every object equally. Soft, small, narrow or strongly angled objects can produce less reliable ultrasonic reflections.
10. Add a servo later for a more advanced project. A scanning sensor allows the robot to compare available paths rather than simply responding to an obstacle directly ahead.

⚠️ Common Mistakes

1. Motors Rotate in Opposite Directions

Because the two motors are mounted on opposite sides of the chassis, motor polarity and control logic must correspond correctly to the intended movement.

2. Ultrasonic Sensor Does Not Detect an Object

Check:

• VCC/GND
• TRIG/ECHO wiring
• Sensor orientation
• Program pin assignments
• Object position

3. Robot Continuously Turns

One motor may be connected incorrectly, or the program may continuously be detecting an obstacle.

4. Arduino Resets When Motors Start

DC motors can cause voltage dips and electrical noise. Check the battery/power system and wiring.

5. Loose Connections

Moving robots create vibration. Secure jumper wires and screw-terminal connections.

6. Guessing Arduino Pins

The Arduino pin assignments must match the actual pre-programmed code. Follow the RoboGears wiring diagram rather than using arbitrary pins.

Troubleshooting

Problem: Robot does not move

Check the battery, power switch/connections, Arduino power, motor-driver power and motor wiring.

Problem: One wheel does not move

Check that motor and its motor-driver output. Swapping the motors temporarily can help identify whether the issue is the motor, wiring or driver channel.

Problem: Robot moves backward

Verify motor polarity and left/right motor connections.

Problem: Robot hits obstacles

Check HC-SR04 orientation and wiring. Test the sensor against a large flat obstacle.

Problem: Arduino restarts when the motors operate

Check battery condition, current capability, motor power wiring and power stability.

Problem: Obstacle detection is inconsistent

Try a larger, flatter object and avoid testing extremely close to the sensor. Object geometry and acoustic reflections affect ultrasonic measurement.

FAQ

1. What does this robot do?

It detects obstacles using an HC-SR04 ultrasonic sensor and uses programmed motor-control logic to alter its movement and avoid collisions.

2. Which controller does it use?

The current RoboGears specification lists Arduino UNO compatibility and describes the controller configuration as pre-programmed.

3. Do I need to program it myself?

When the Arduino is included in the RoboGears kit, it is supplied pre-programmed/ready programmed unless otherwise stated. You can reprogram it later for experimentation.

4. Which sensor detects obstacles?

The kit uses the popular HC-SR04 ultrasonic distance sensor.

5. Which motors are used?

The RoboGears specification lists two 3V–6V BO geared motors.

6. Which motor driver can be used?

The current product specification lists L298N / L293D support.

7. Can I add a servo motor?

Yes, a servo-mounted HC-SR04 is a common upgrade that allows the robot to scan different directions before turning. The servo is not confirmed as included in the current RoboGears package.

8. Is assembly required?

Yes. This is a DIY ready-to-assemble robotics kit. Mechanical assembly and electrical connections are required. The current product disclaimer also notes that soldering may be required for motor leads.

🚚 Shipping & Delivery

• Dispatch: Within 24 hours*
• PAN India delivery
• Tracking information provided after shipment
• Delivery time varies by destination and courier

The current RoboGears page states Ships within 24 Hours and Pan India Delivery.

*Subject to stock availability, order processing and courier operations.

⚠️ Important Notes & Safety

• Adult/teacher supervision is recommended for younger students.
• Observe correct battery polarity.
• Never short-circuit batteries.
• Disconnect power before changing wiring.
• Keep loose wires away from moving wheels.
• Do not operate the robot around water.
• Prevent the underside of PCBs from contacting conductive surfaces.
• Test the robot in a clear area before unrestricted operation.
• Do not force stalled motors.
• If using Li-ion cells, use appropriate cells and charging equipment.
• Double-check Arduino and sensor wiring before applying power.

Disclaimer

This product is a DIY educational robotics kit and requires mechanical assembly, wiring and testing. When an Arduino controller is supplied by RoboGears as part of this project kit, it is pre-programmed/ready programmed unless otherwise specified. Ultrasonic detection performance varies according to object size, angle, material and environmental conditions. Component appearance, chassis design or equivalent hardware may vary slightly between production batches while maintaining the intended project functionality.
