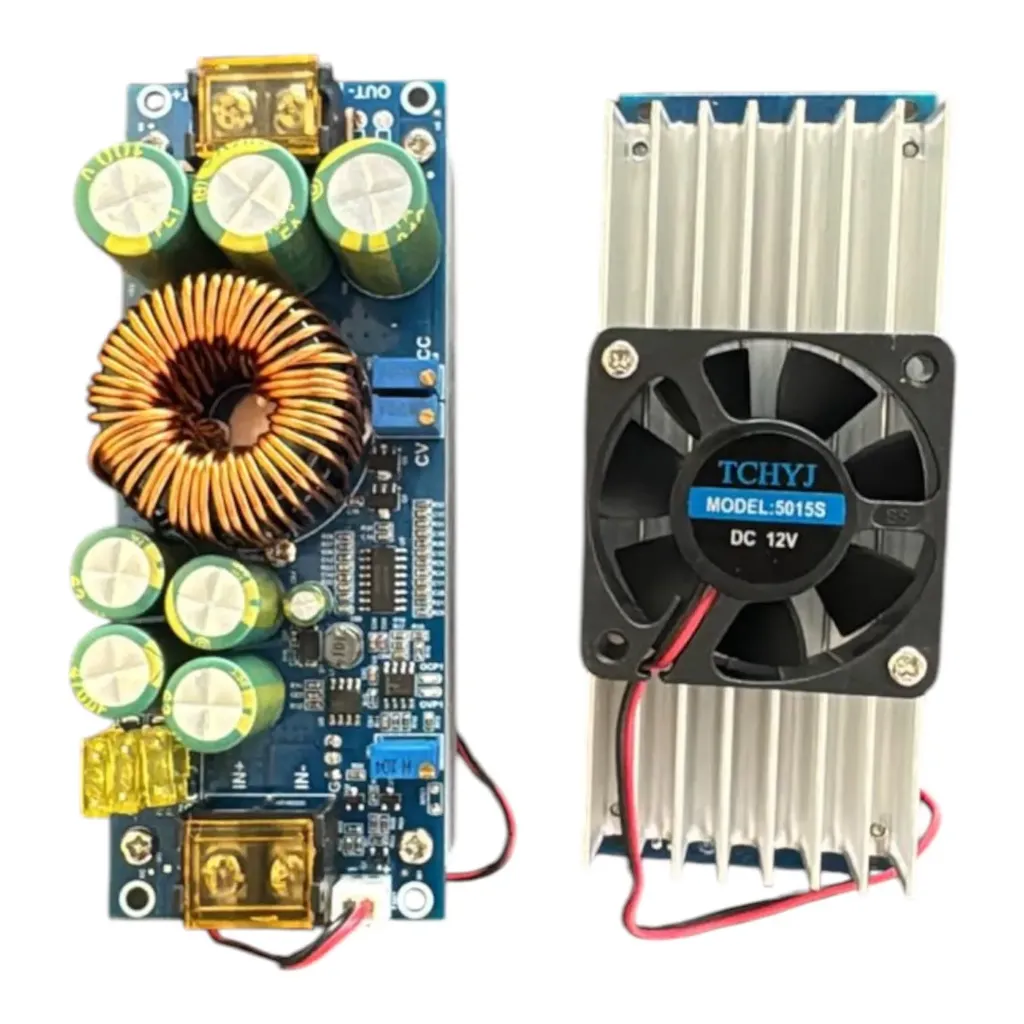

DS2053 1200W Adjustable DC-DC Buck Converter Module

Key Features

• High-power DC-DC buck converter

• DS2053 / Gold-A066 model

• Step-down voltage conversion

• DC 8V–60V input range

• DC 1.2V–36V adjustable output

• Up to 20A maximum advertised output current

• Up to 1200W maximum advertised power

• Up to 95% conversion efficiency

• Large aluminium heat sink

• Active cooling fan

• High-current screw-terminal connections

• Adjustable output voltage

• Suitable for high-current DC loads

• Suitable for battery and solar applications

• Suitable for laboratory power projects

• Industrial and robotics applications

Electrical Specifications

Input Specifications

Output Specifications

Cooling System

Protection Features

The current RoboGears specification lists:

• Over-current protection

• Short-circuit protection

• Thermal protection

Correct input voltage, polarity, cooling, wiring and load selection are still essential even when protection circuitry is present.

Physical Specifications

Understanding the 1200W Rating

1200W is the module's maximum advertised power rating.

It should not be interpreted as guaranteed continuous output under every voltage, current and cooling condition.

Electrical power is determined approximately by:

Power (W) = Output Voltage (V) × Output Current (A)

For example:

24V × 20A = 480W

and:

36V × 20A = 720W

Therefore, the 20A maximum current rating and 1200W maximum power rating should not automatically be treated as simultaneously available under every operating condition.

Actual usable power depends on:

• Input voltage

• Output voltage

• Output current

• Voltage difference

• Cooling

• Wiring

• Ambient temperature

• Converter efficiency

• Duration of operation

Compatibility

The DS2053 is designed for applications where:

Higher DC Voltage → Lower Adjustable DC Voltage

is required.

It is a step-down converter only.

It cannot increase a lower input voltage to a higher output voltage.

Input Compatibility

Published input range:

DC 8V–60V

Potential DC sources include appropriately configured:

• Batteries

• Battery packs

• DC power supplies

• Solar DC systems

• Vehicle electrical systems

• Industrial DC supplies

• Laboratory DC supplies

The source must provide sufficient voltage and current for the intended load.

Output Compatibility

Published adjustable output range:

DC 1.2V–36V

The output voltage must be adjusted according to the requirements of the connected equipment.

Important Buck Converter Requirement

The input voltage must be higher than the desired output voltage.

Example:

48V Input → 24V Output ✓

24V Input → 12V Output ✓

24V Input → 36V Output ✗

The final example requires a boost converter rather than this buck converter.

Suitable Loads

Depending on voltage/current requirements, the converter can be integrated with compatible:

• DC motors

• LED systems

• Robotics systems

• Battery systems

• DC electronics

• Industrial control systems

• CNC electronics

• Laboratory equipment

Always confirm the load's required voltage and current before connection.

Battery Charging Applications

The current RoboGears listing identifies lithium battery charging as a potential application.

However, battery charging requires correct control of:

• Battery chemistry

• Charge voltage

• Charge current

• Cell configuration

• BMS requirements

• Charge termination

Do not assume that voltage adjustment alone makes the module a complete safe charger for every battery chemistry.

Solar Applications

The module may be used for suitable DC voltage conversion in solar projects where the available DC input is within the specified range.

It should not automatically be treated as an MPPT solar charge controller unless that functionality is specifically verified.

Required for Operation

You will generally need:

• Suitable DC input source

• DS2053 converter

• Compatible DC load

• Proper high-current wiring

• Multimeter

• Appropriate connectors / protection

Depending on the project, also consider:

• Input fuse

• Output fuse

• DC switch

• Enclosure

• Additional forced ventilation

• Current monitoring

• Voltage monitoring

Before Purchase

Converter Type: Step-down only

Input: 8V–60V DC

Output: 1.2V–36V DC adjustable

Maximum Advertised Current: Up to 20A

Maximum Advertised Power: Up to 1200W

AC Input: Not supported

Voltage Boosting: Not supported

Applications

• DC voltage reduction

• High-power DC supplies

• Robotics power systems

• Battery projects

• Solar power systems

• Electric vehicle projects

• High-power LED systems

• CNC equipment

• Laboratory power supplies

• Industrial automation

• DC motor projects

• Automotive electronics

• Test benches

• DIY adjustable power supplies

• High-current electronics projects

📦 What's Included

❌ What's Not Included

Unless specifically offered as part of a separate bundle, the standard package does not include:

• DC Input Power Supply

• Battery

• Battery Pack

• Solar Panel

• Multimeter

• Input Wiring

• Output Wiring

• External Fuse

• Fuse Holder

• DC Switch

• Connectors

• Battery Management System

• External Display / Meter

• Enclosure

• AC Power Supply

• Load / Device

Important Purchase Note

This product is a DC-DC converter module, not a complete power supply system.

For operation you need:

DC Source → DS2053 → Compatible DC Load

The input source must provide a voltage higher than the desired output voltage.

High-Current Installation

For high-current applications, additional components such as:

• Correctly rated cable

• Fuses

• Connectors

• Switches

• Insulation

• Proper enclosure

may be required according to the project.

Product Variation

PCB colour, heat-sink finish, fan style, capacitors, terminals and minor component placement may vary between manufacturing batches while maintaining the intended DS2053 functionality.

Getting Started

Step 1 — Determine Your Required Output

Before connecting the converter, identify:

• Required output voltage

• Expected load current

• Maximum load power

Example:

If your device requires:

24V / 5A

then the expected load is approximately:

24V × 5A = 120W

Step 2 — Select the DC Input Source

The input must be within:

DC 8V–60V

and must be higher than the desired output voltage.

For example:

48V → 24V ✓

24V → 12V ✓

12V → 24V ✗

Step 3 — Connect the Input

Before wiring:

• Switch the source OFF

• Confirm polarity

• Confirm voltage

• Use appropriately rated wiring

Connect the DC source to the module's input terminals according to the markings on the actual board.

Step 4 — Do Not Connect the Load Yet

Before connecting expensive equipment, first configure and verify the converter output.

Step 5 — Power the Converter

Apply DC input power.

Ensure:

• Cooling fans operate as expected

• No abnormal smell

• No smoke

• No excessive heating

Step 6 — Adjust the Output Voltage

Use the module's voltage adjustment control to set the required output.

Adjust slowly.

Step 7 — Verify With a Multimeter

Measure the output voltage using a reliable multimeter.

Do not rely only on the potentiometer position.

Example:

Required load voltage:

12.0V

Adjust the converter and verify approximately 12.0V with the multimeter before connecting the load.

Step 8 — Switch Off Power

After confirming the output voltage, switch the input source off before connecting the load.

Step 9 — Connect the Load

Connect the load while observing correct:

• Polarity

• Voltage

• Current requirements

Step 10 — Power the System

Apply power and monitor:

• Input voltage

• Output voltage

• Output current

• Converter temperature

• Fan operation

• Wiring temperature

• Terminal temperature

High-Current Wiring

When operating at higher currents, use:

• Short wiring

• Appropriate cable cross-section

• Secure terminals

• Correctly rated connectors

Poor wiring can cause:

• Voltage drop

• Heat

• Power loss

• Connector damage

• Fire risk

Recommended Protection Layout

For demanding applications, consider:

DC Source

↓

Correctly Rated Fuse

↓

Power Switch / Disconnect

↓

DS2053 Buck Converter

↓

Output Fuse if Required

↓

DC Load

Important Adjustment Rule

Always set and measure the output voltage BEFORE connecting sensitive electronics.

This is particularly important when the module has previously been adjusted for another voltage.

🔧 Prototyping and Engineering Tips from RoboGears

1. This Is a Buck Converter Only

The DS2053 reduces voltage.

It cannot increase voltage.

Always maintain:

Input Voltage > Required Output Voltage

2. Set the Voltage Before Connecting the Load

Never connect expensive electronics before verifying the output.

Recommended procedure:

Power Module → Adjust Output → Measure With Multimeter → Power Off → Connect Load → Power On

3. Do Not Treat 1200W as Guaranteed Continuous Output

The 1200W specification is the maximum advertised rating.

Continuous usable power depends on:

• Voltage

• Current

• Cooling

• Wiring

• Ambient temperature

• Input source

• Duty cycle

Design high-power systems with suitable engineering margin.

4. Understand the 20A Rating

Similarly, 20A is the published maximum output-current rating.

Operating near maximum current places substantially greater stress on:

• PCB traces

• Terminals

• Wiring

• Connectors

• Cooling system

• Input power source

5. Use Heavy Wiring at High Current

Above approximately 10A, wiring quality becomes particularly important.

Use appropriately rated:

• Copper wire

• Terminals

• Connectors

• Fuses

• Switches

6. Check the Terminals for Heating

At high current, poor terminal connections can generate significant heat.

After initial operation, carefully inspect for:

• Loose screws

• Discoloured terminals

• Hot connectors

• Damaged insulation

7. Keep the Fans Unobstructed

The converter relies on active cooling.

Do not block:

• Fan intake

• Fan exhaust

• Heat-sink airflow

8. Avoid Sealed Enclosures Without Ventilation

A sealed box can trap heat even when the converter has onboard fans.

Provide suitable ventilation for demanding applications.

9. Add an Input Fuse

For high-power battery or solar installations, a correctly selected input fuse can provide important protection against wiring faults.

The fuse should be selected according to the actual system design.

10. Consider Output Protection

Sensitive loads may benefit from correctly engineered:

• Output fuse

• Overvoltage protection

• Current monitoring

• Voltage monitoring

11. Check Input Source Capability

A 500W output cannot be obtained from a source capable of supplying only 100W.

Because conversion is not 100% efficient:

Input Power > Output Power

during normal operation.

12. Allow Power Margin

Do not design a system where every component continuously operates at its maximum advertised rating.

Engineering margin generally improves:

• Reliability

• Thermal performance

• Service life

• System stability

13. Battery Charging Requires More Than Voltage Matching

Before charging a battery, confirm:

• Battery chemistry

• Number of cells

• Required charge voltage

• Required current limit

• BMS

• Charge termination requirements

Do not connect an unknown battery simply because the converter can be adjusted to its nominal voltage.

14. Check Fan Operation Regularly

For high-power continuous use, cooling-fan failure can significantly reduce thermal performance.

Inspect fan operation periodically.

Troubleshooting

No Output

Check:

• Input voltage

• Input polarity

• Wiring

• Terminals

• Adjustment settings

• Protection state

Output Voltage Too Low

Check:

• Input voltage

• Input-source capability

• Load current

• Wiring voltage drop

• Adjustment setting

Remember that a buck converter cannot produce an output above its input.

Output Drops Under Load

Possible causes:

• Input supply too weak

• Excessive load current

• Thin wiring

• Loose connections

• Thermal limitation

• Converter protection

Module Gets Very Hot

Check:

• Load current

• Input/output voltage

• Fan operation

• Airflow

• Wiring

• Terminal condition

Reduce the load if necessary.

Wiring Gets Hot

Stop operation and inspect:

• Wire gauge

• Connectors

• Terminal tightness

• Load current

Hot wiring can indicate excessive resistance or undersized conductors.

Output Voltage Is Incorrect

Disconnect sensitive equipment and:

1. Measure output with a multimeter.

2. Readjust the converter.

3. Verify the voltage.

4. Reconnect the load only after confirmation.

Engineering Principle

A reliable high-power converter system requires correct matching of:

DC Source + Protection + Wiring + Converter + Cooling + Load

The module's 1200W label alone does not determine how much continuous power the complete system can safely deliver.

FAQ

1. What is the DS2053?

The DS2053 / Gold-A066 is a high-power adjustable DC-DC step-down buck converter module.

2. What is the input voltage range?

Published input range:

DC 8V–60V

3. What is the output voltage range?

Published adjustable output:

DC 1.2V–36V

4. What is the maximum advertised output current?

Up to:

20A

under appropriate operating conditions.

5. What is the maximum advertised power?

Up to:

1200W

under appropriate operating conditions.

6. Does it continuously provide 1200W?

The 1200W figure should be treated as the module's maximum advertised rating, not as guaranteed continuous output under every condition.

Continuous usable power depends on the complete operating environment.

7. Is this a step-down converter?

Yes.

It reduces a higher DC voltage to a lower DC voltage.

8. Can it increase voltage?

No.

It is not a boost converter.

For example:

48V → 24V ✓

24V → 12V ✓

12V → 24V ✗

9. Can I convert 48V to 24V?

Yes, both voltages are within the published input/output ranges, subject to load and power requirements.

10. Can I convert 24V to 12V?

Yes.

This is a typical buck-converter application.

11. Can I convert 12V to 5V?

Yes, provided the system remains within the module's operating limits.

12. Can I convert 12V to 24V?

No.

That requires a boost converter.

13. Can I use 60V input?

60V is the published maximum input voltage.

For practical designs, operating with reasonable margin below absolute published limits is preferable where possible.

14. Does it support AC input?

No.

The DS2053 is intended for DC-to-DC conversion.

Do not connect AC mains directly to the module.

15. Is the output adjustable?

Yes.

Output voltage is adjustable.

16. Does it have cooling fans?

Yes.

The module uses active fan cooling together with a large aluminium heat sink.

17. What is the efficiency?

Published efficiency:

Up to 95%

18. Can I use it with solar panels?

It can be used in suitable DC solar power-conversion projects when the electrical requirements are compatible.

However, it should not automatically be treated as an MPPT solar controller.

19. Can I use it to charge batteries?

The module may be used as part of an appropriately engineered battery-charging system.

Battery chemistry, charge voltage, current limiting, BMS and charge termination requirements must all be considered.

20. Can I use it with lithium batteries?

Only when the complete charging or power system is correctly designed for the specific lithium battery chemistry and configuration.

Do not rely only on voltage adjustment.

21. Can I use it for robotics?

Yes.

It can be useful when a robotics system has a higher-voltage DC source but requires a lower DC supply rail.

22. Can I use it for DC motors?

Yes, provided the motor's voltage, running current and startup/stall current remain within the properly engineered system limits.

23. Can I use it for high-power LEDs?

Potentially yes, when the LED system's voltage/current requirements are correctly matched.

For LEDs requiring regulated constant-current driving, use an appropriate driver architecture.

24. Should I use a multimeter when adjusting it?

Yes.

Always verify the output voltage with a multimeter before connecting sensitive or expensive equipment.

25. What are the approximate dimensions?

Approximately:

128 × 90 × 63mm

26. What is the approximate weight?

Approximately:

434g

27. Is a power supply included?

No.

The standard package contains the converter module only.

28. Are wires included?

No input/output wiring is specified in the standard package.

29. Should I use a fuse?

For high-current systems, properly selected circuit protection is strongly recommended.

Fuse sizing depends on the actual system design.

30. What happens if the input voltage is below the required output?

The DS2053 cannot boost the voltage to the required higher level because it is a step-down converter.

Important Safety Note

• DC input only.

• Observe correct polarity.

• Do not exceed 60V input.

• Do not exceed the specified output limits.

• Set and measure output voltage before connecting the load.

• Use appropriately rated high-current wiring.

• Keep terminals tight.

• Maintain unrestricted cooling airflow.

• Use suitable fusing/protection for high-power installations.

• Disconnect power before modifying wiring.

• Never connect directly to AC mains.

Disclaimer

The 1200W and 20A specifications represent published maximum ratings and should not be interpreted as guaranteed continuous simultaneous output under every operating condition.

Actual usable output depends on input/output voltage, load current, cooling, wiring, ambient temperature, source capability and operating duration.

Product appearance, fan style, heat-sink finish, terminal design and component placement may vary slightly between manufacturing batches while maintaining the intended DS2053 functionality.
