MG996R Digital Metal Gear High Torque Servo Motor (180 Degree Rotation)

MG996R Digital Metal Gear High Torque Servo Motor (180 Degree Rotation)

(0 review)

ComponentOperating VoltageStall Torque (4.8V)Stall Torque (6.0V)Operating SpeedRotation AngleDead Band Width
Value4.8V - 7.2V DC9.4 kg-cm11 kg-cm0.17 sec/60°180 Degrees1 µs
ComponentGear TypeMotor TypeConnectorWire LengthWeightDimensions
ValueAll Metal GearCorelessJR / Futaba30 cm55 grams40.7 x 19.7 x 42.9 mm
Price
₹ 292.37 ₹ 292.37
(Tax included)

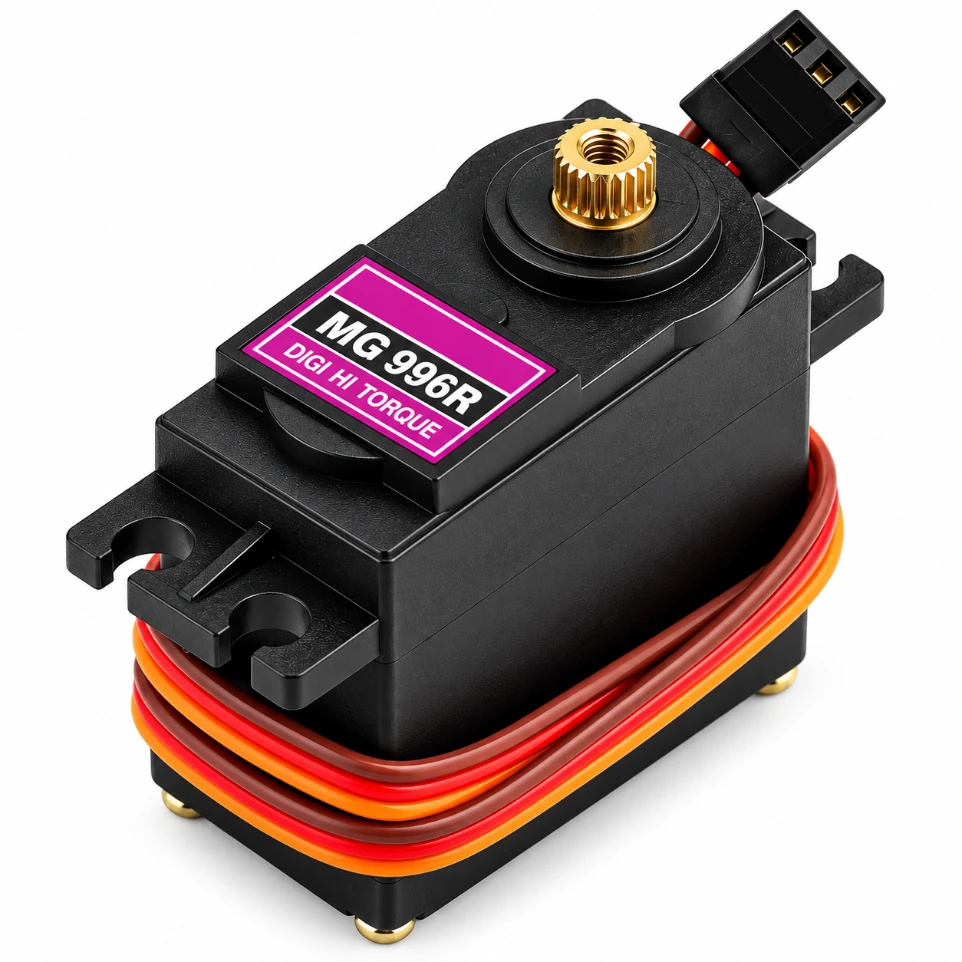

Product Description The MG996R is an upgraded version of the famous MG995 servo, featuring a redesigned IC and control system for improved accuracy and holding torque. This high-torque digital servo is built with a rugged all-metal gear train and a double ball-bearing shaft, making it ideal for heavy-duty applications like robotic arms, hexapods, and 1/8 scale RC cars. Unlike analog servos, its digital controller provides a faster response and a tighter dead band, ensuring your project maintains its position even under significant mechanical stress.

Key Features

  • High Torque Performance: Delivers up to 11 kg-cm at 6V, providing enough power to lift heavy robotic limbs or steer large RC vehicles.

  • Metal Gear Durability: The internal geartrain is entirely made of metal, preventing the "stripped gear" issues common in plastic-gear servos under load.

  • Double Ball Bearing: Equipped with dual bearings on the output shaft to reduce friction and improve the precision of the 180-degree sweep.

  • Digital Control: Features an advanced digital PCB that offers superior holding power and more precise centering compared to older analog models.

  • Universal Compatibility: Works seamlessly with Arduino, Raspberry Pi, and ESP32 using standard PWM libraries and 3-pin headers.

Technical Details

  • Coreless Motor: High-speed coreless motor design reduces weight and improves acceleration compared to standard iron-core motors.

  • Current Draw: Can pull over 1A under stall; it is highly recommended to use an external power source rather than the Arduino 5V pin.

  • Pulse Width: Standard 500µs to 2500µs pulse range for a full 180-degree movement.

  • Operating Temperature: Rated for stable operation between 0°C and 55°C, suitable for most indoor and outdoor hobbyist environments.

  • Spline Count: Features a standard 25-tooth (25T) output spline, compatible with a wide variety of aluminum and plastic servo horns.

  • Connector Pinout: Standard color coding—Brown (GND), Red (VCC), Orange (Signal)—for error-free wiring.

  • Case Material: High-strength plastic housing with reinforced mounting points to withstand high vibrations.

  • Internal Potentiometer: High-precision internal feedback mechanism for accurate angular positioning.

  • Dead Band: Ultra-narrow 1µs dead band ensures the motor responds to even the slightest change in signal.

  • Weight-to-Power Ratio: Optimized 55g weight makes it suitable for medium-sized drones and walking robots.

  • Control Frequency: Optimized for 50Hz (20ms period) PWM signals, the standard for hobbyist microcontrollers.

  • Stall Protection: The digital controller includes minor current-limiting features to prevent immediate burnout during a physical block.

  • Mounting Accessories: Includes multiple horn shapes (arm, cross, round) and rubber grommets with brass eyelets for vibration damping.

  • Voltage Flexibility: Can be safely powered by a 2S LiPo battery (7.4V) through a BEC or regulator.

  • Splash Resistance: The case design provides basic protection against dust and minor moisture, though it is not fully waterproof.

Prototyping and Engineering Tips from Robogears

  • 9V Battery Use: Do not use a 9V battery to power this servo. The high current draw of the MG996R will cause a 9V battery to voltage-drop instantly, leading to "jittering." Use a 6V 2A DC Adapter or a 6V Lead Acid battery for best results.

  • 18650 Cell: Use two 18650 cells in series (7.4V) paired with a Buck Converter set to 6V. This setup provides the high current (Amps) necessary for the servo to reach its maximum 11kg torque.

  • IC & Capacitor Tip: Always place a 470uF to 1000uF Electrolytic Capacitor across the servo's VCC and GND lines. This "decoupling" capacitor prevents the servo's motor noise from interfering with your Arduino’s logic. Pair it with a PCA9685 16-Channel Servo Driver if controlling multiple motors.

  • Related Products: We recommend pairing this with our Aluminum 25T Servo Horns, PCA9685 PWM Driver, and High-Current Jumper Wires.

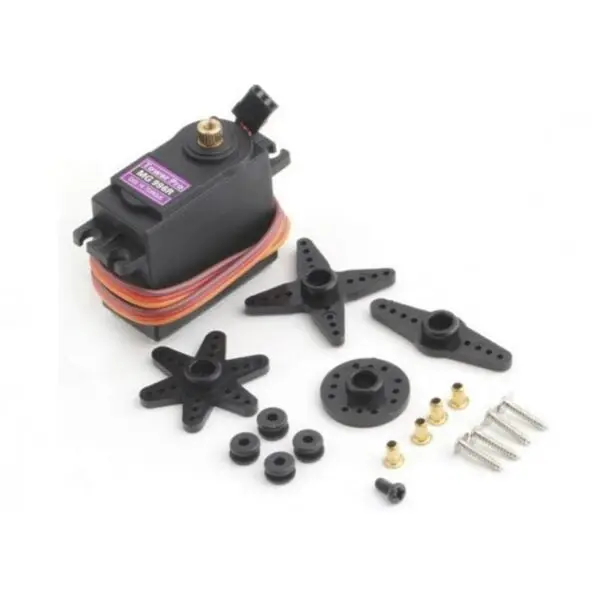

Package Includes

  • 1 x MG996R Digital Metal Gear Servo Motor.

  • 1 x Set of Plastic Servo Horns (Various Shapes).

  • 1 x Set of Mounting Screws and Rubber Dampers.

Disclaimer Image is for ilastration purpose only 2-3 lines. Powering this servo directly from an Arduino's 5V pin can cause the microcontroller to reset or sustain damage due to current spikes. Always use a dedicated external power supply for the motor's Red and Brown wires.
