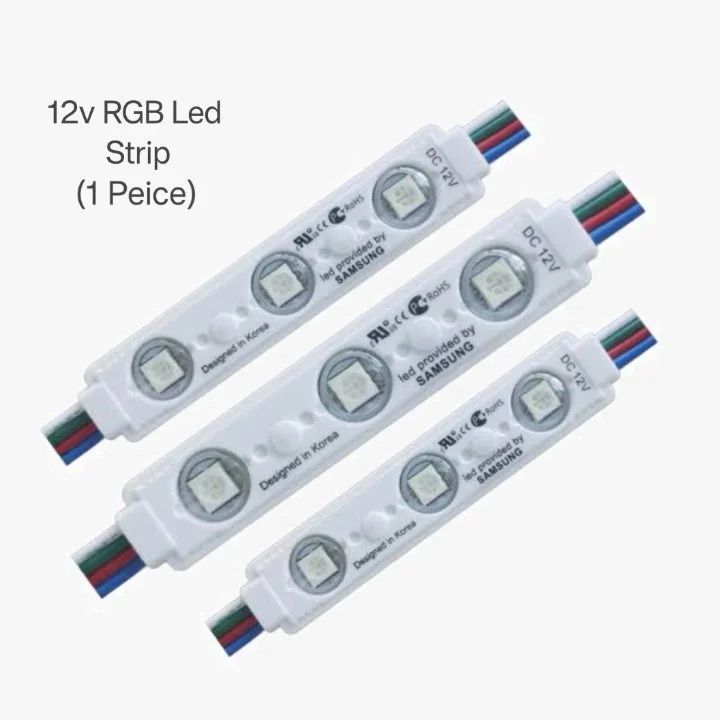

12V RGB LED Module 5050 SMD Waterproof 3-LED Strip Light (4-Wire)

Component	Specification
LED Type	5050 SMD (High Brightness)
Number of LEDs	3 LEDs per Module
Operating Voltage	12V DC
Emitting Color	RGB Multi-Color
Waterproof Rating	IP65 / IP67 (Injection Molded)
Control Interface	4-Wire (Common Anode)
Power Consumption	Approx. 0.72W per Module
Adhesive	3M Double-Sided Tape on Back

Price

🚚 Ships within 24 Hours
📦 Pan India Delivery

₹ 55.08

(Tax included)

Barcode: 90761

Product Description The 12V RGB 5050 SMD Optical Module is a rugged, versatile lighting solution designed for both indoor and outdoor applications. Each module contains three high-intensity 5050 SMD LEDs housed in a waterproof injection-molded casing. Unlike standard LED strips, these modules are interconnected by flexible wires, allowing them to be installed around corners, curved surfaces, or in high-vibration environments. With its 4-wire common anode configuration, you can achieve millions of color combinations when connected to an RGB controller.

Key Features

Fully Waterproof: Sealed in high-quality resin to protect against rain, dust, and moisture.
High-Brightness 5050 SMDs: Each LED contains three chips (Red, Green, Blue) for superior color mixing and intensity.
Flexible Installation: Inter-module wiring allows for easy positioning in tight or irregular spaces.
Integrated Adhesive: Includes genuine 3M tape for quick mounting on metal, glass, or plastic surfaces.
Durable & Long-Lasting: Designed for heavy-duty use with excellent heat dissipation through the module housing.

Technical Details

Wiring Setup: 4-Wire (White/Red/Green/Blue)
Common Pin: Positive (+) 12V [Common Anode]
Module Dimensions: Approx. 75mm x 15mm
Viewing Angle: 120° – 140°
Operating Temp: -20°C to +50°C

Prototyping and Engineering Tips from Robogears

Control Logic: This is a Common Anode module. To light up a color, connect the +12V wire to your power source and pull the specific color wire (R, G, or B) to Ground.
Driving with Arduino: To control these with a 5V microcontroller, you must use a power transistor (like the TIP122) or a MOSFET (like the IRF540N) for each color channel. The Arduino cannot provide the 12V or the current required directly from its pins.
Series vs. Parallel: These modules are designed to be daisy-chained. However, if you are running a very long string (more than 20 modules), we recommend injecting power at both ends to prevent voltage drop and ensure consistent brightness.
Automotive Use: These are perfect for 12V vehicle interiors or underglow. Since car batteries can fluctuate up to 14.4V, these modules are robust enough to handle the environment, but using a 12V regulator will maximize their lifespan.

Package Includes

1 x 12V RGB 5050 SMD 3-LED Module (Single Unit)

Disclaimer Images are for reference; wire colors may vary slightly by batch. DO NOT connect directly to 220V AC mains; this module requires a 12V DC power supply to operate.
